Door Switch: Service and Repair

DOOR AJAR SWITCH

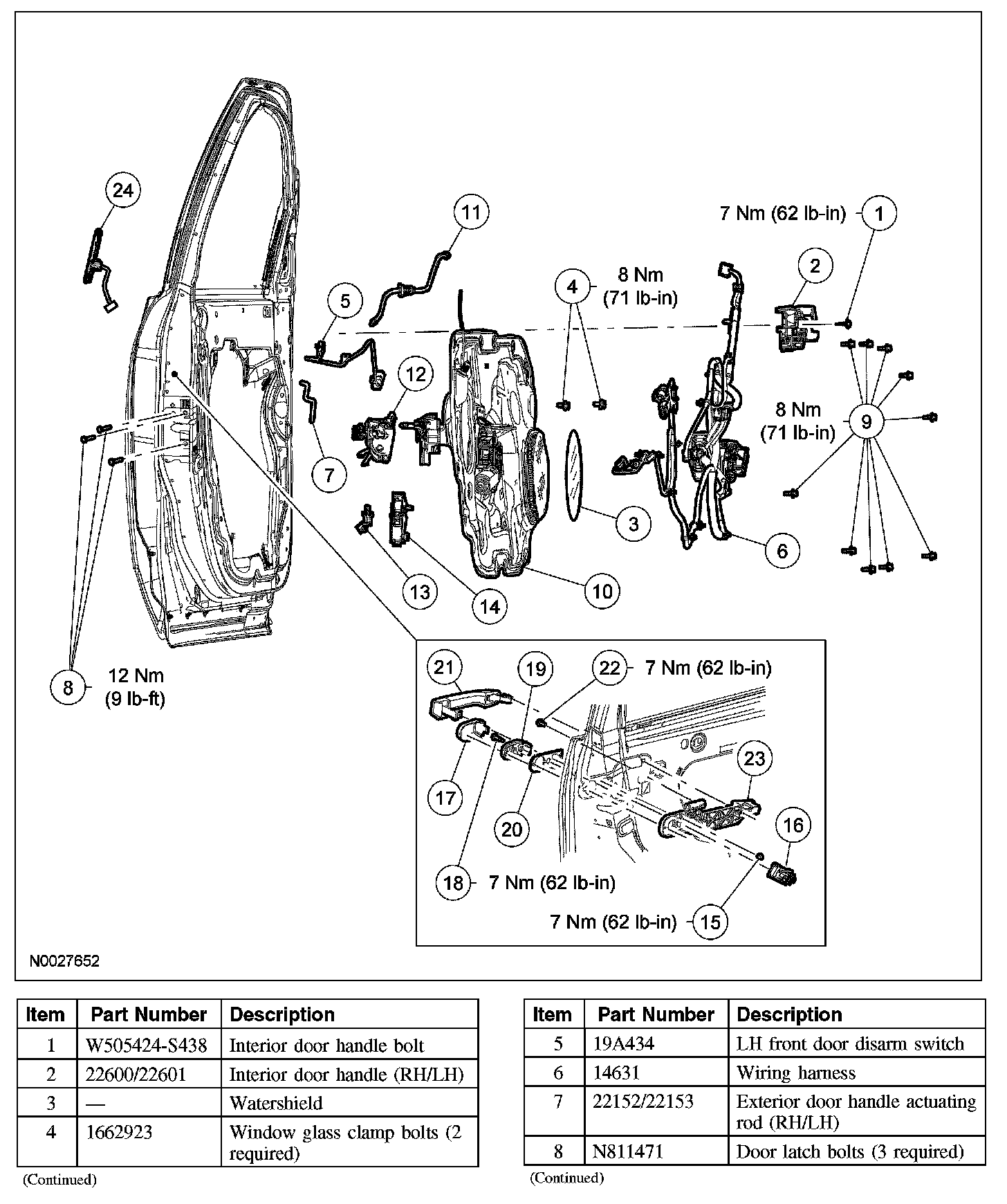

Exploded View

Part 1:

Part 2:

Removal and Installation
1. Remove the door lock actuator.
2. Insert a screwdriver or suitable tool into the opening on the door latch and push up on the tab.
- Turn the door ajar switch clockwise to remove.







3. To install, reverse the removal procedure.
