Parking Brake Cable - Rear: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

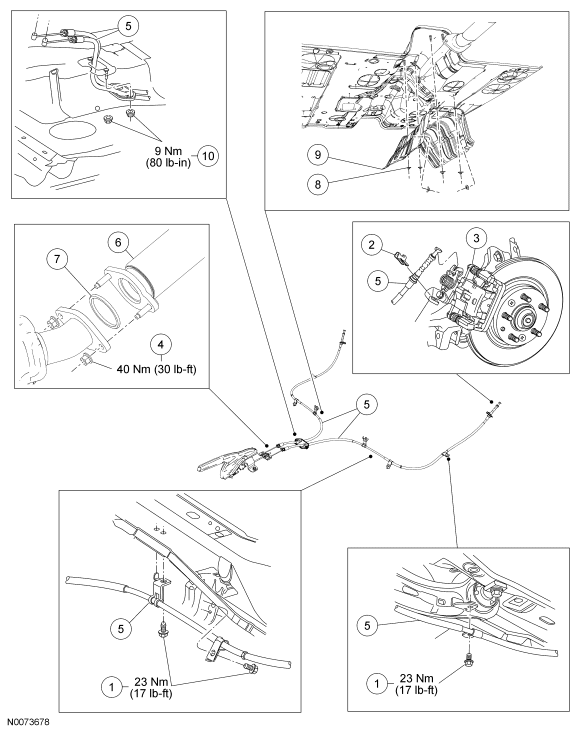

| Item | Part Number | Description |
|---|---|---|
| 1 | W505263 | Parking brake cable routing bracket bolts (6 required) |
| 2 | 2860 | Parking brake cable routing clip (2 required) |
| 3 | 2552 LH/ 2553 RH | Brake caliper |
| 4 | W705443 | Catalytic converter-to-exhaust flexible pipe nut (2 required) |
| 5 | 2A815 | Rear parking brake cable assembly |
| 6 | 5G203 | Exhaust flexible pipe |
| 7 | 9451 | Gasket |
| 8 | W709729 | Heat shield nut (6 required) |
| 9 | 114B04 | Heat shield |
| 10 | W707142 | Parking brake cable routing bracket nuts (2 required) |
