Home >> Ford >> 2008 >> Fusion FWD L4-2.3L >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Sensors and Switches - Steering >> Power Steering Pressure Switch >> Locations

Power Steering Pressure Switch: Locations

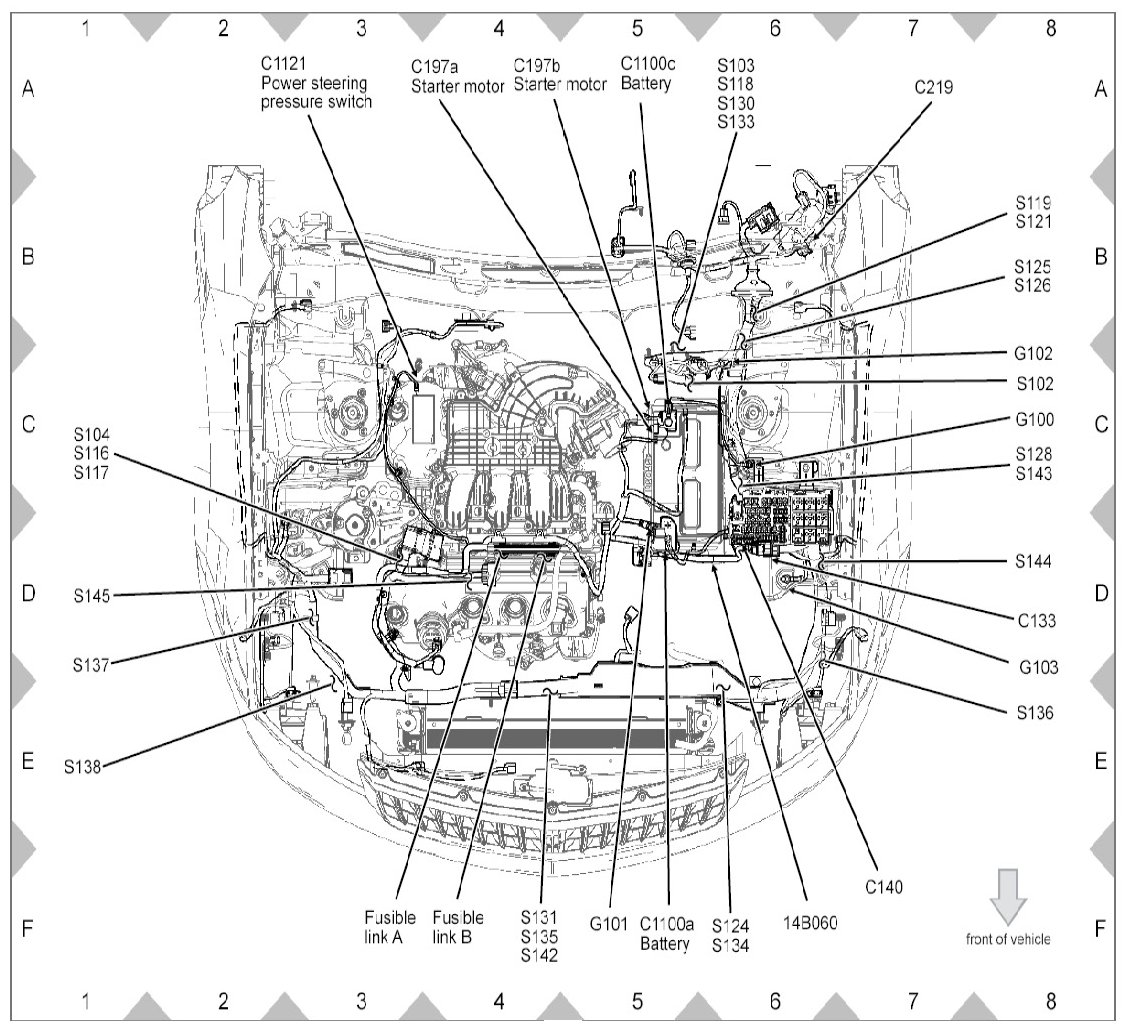

View 151-6:

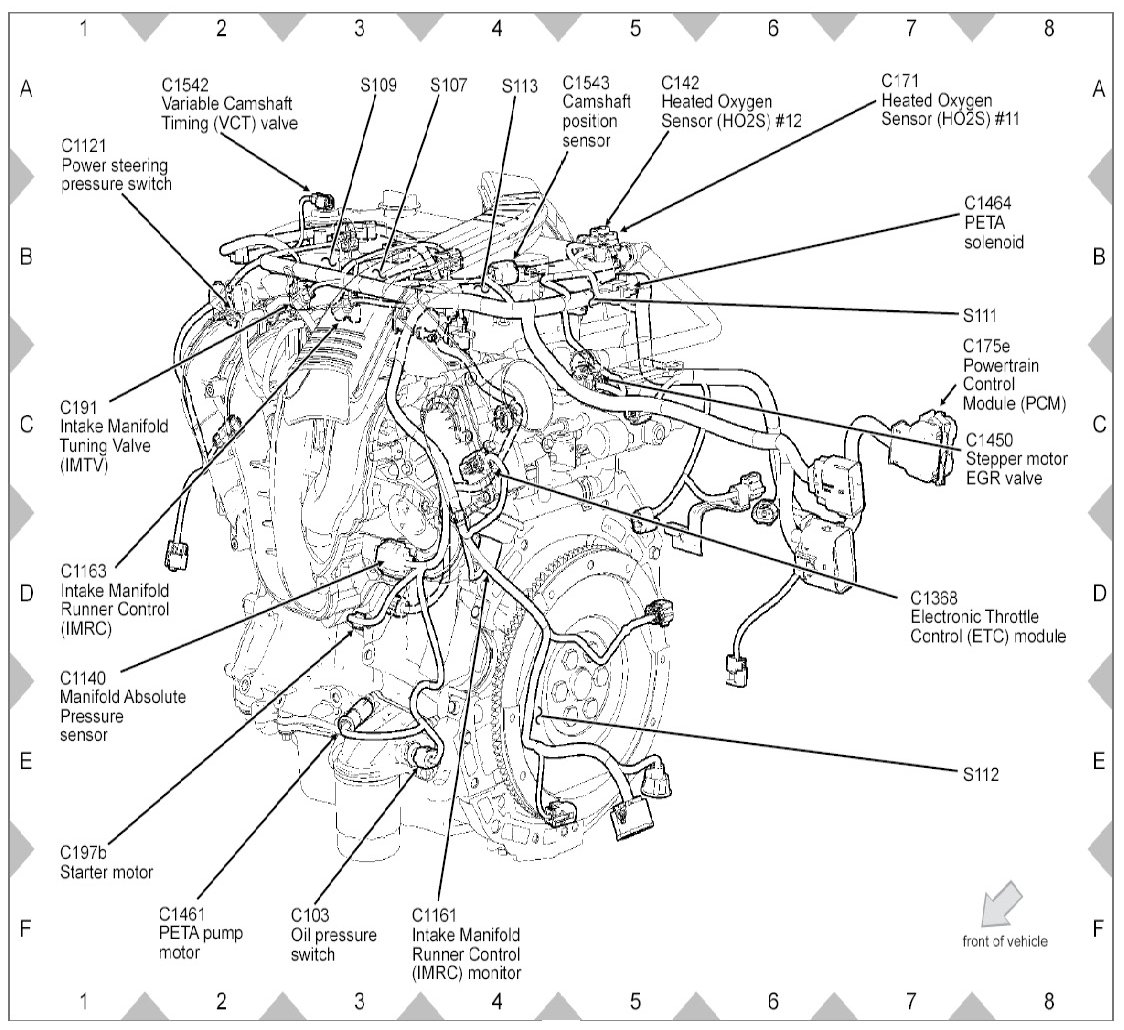

View 151-7:



View 151-10:
