Wheel Speed Sensor - Rear

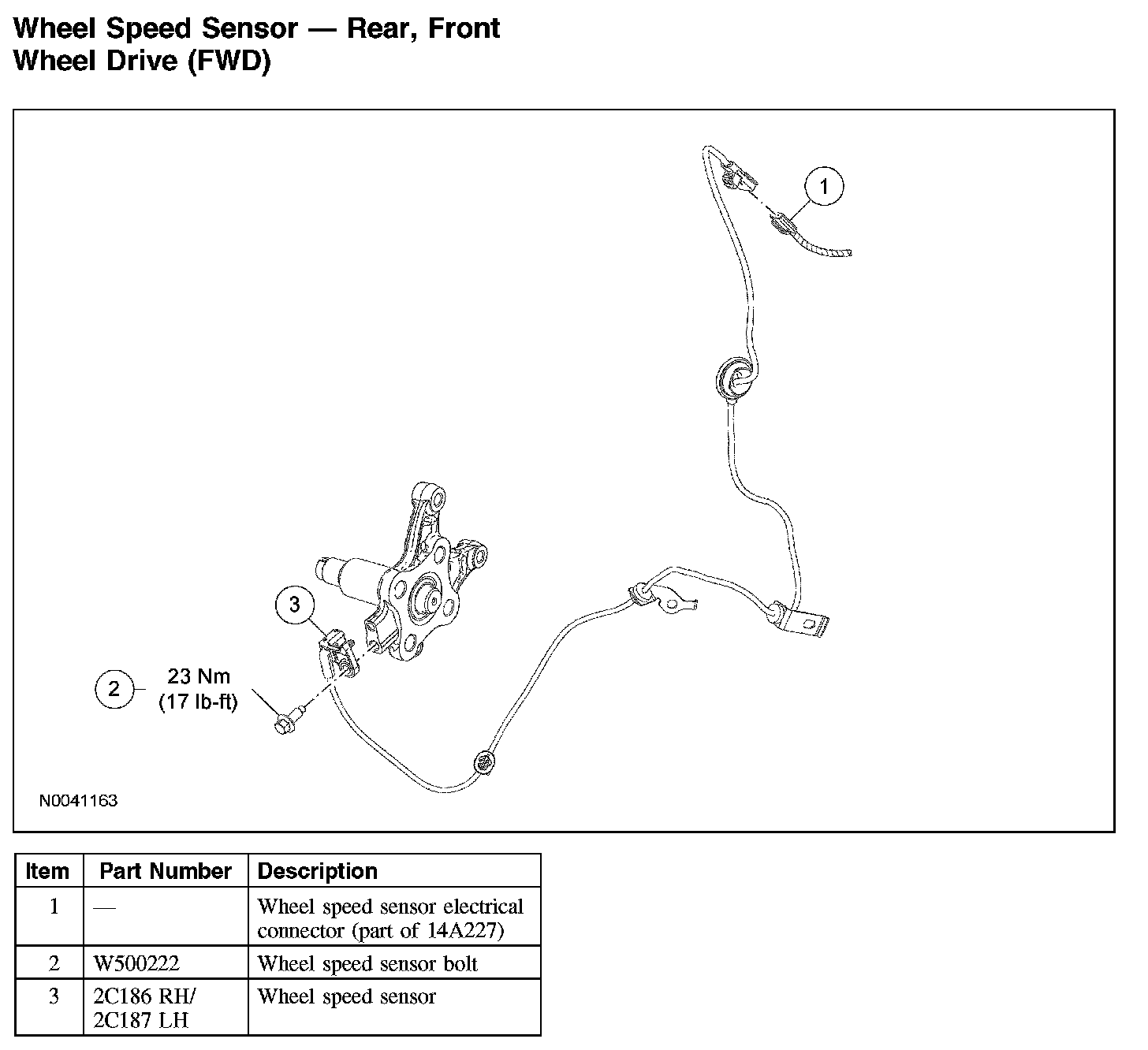

Wheel Speed Sensor - Rear, Front Wheel Drive (FWD)

Wheel Speed Sensor - Rear, Front Wheel Drive (FWD):

Removal and Installation
1. Remove the rear seat bolster.
2. Disconnect the wheel speed sensor electrical connector.
3. With the vehicle in NEUTRAL, position it on a hoist.
4. Using a suitable tool, disconnect the grommet from the body.

5. NOTE: It is not necessary to remove the harness routing brackets.

Disconnect the wheel speed sensor harness from the brackets.
6. Remove the wheel speed sensor wire bolt and the wheel speed sensor.
^ To install, tighten to 23 Nm (17 lb-ft).
7. To install, reverse the removal procedure.
