Backup Lamp Switch: Service and Repair

REVERSING LAMP SWITCH







Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the fasteners and the lower engine splash shield.

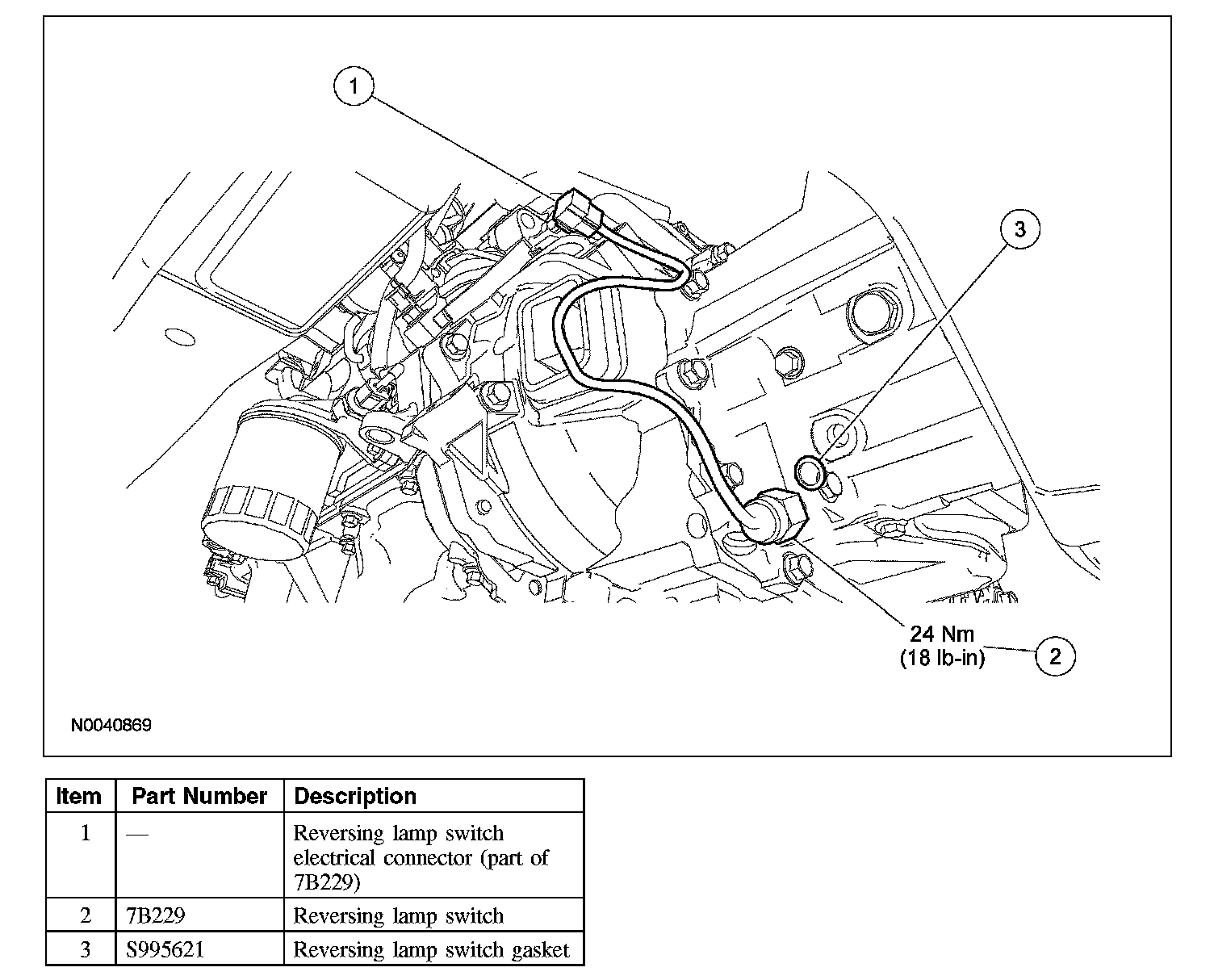

3. NOTE: Discard the reversing lamp switch gasket.

Disconnect the electrical connector and remove the reversing lamp switch.
- To install, tighten to 24 Nm (18 lb-ft).

4. To install, reverse the removal procedure.
- Install a new reversing lamp switch gasket.
- Check the transmission fluid and fill as necessary.
