Home >> Ford >> 2008 >> Fusion FWD L4-2.3L >> Repair and Diagnosis >> Lighting and Horns >> Sensors and Switches - Lighting and Horns >> Backup Lamp Switch >> Diagrams >> Transmission Range (TR) Sensor

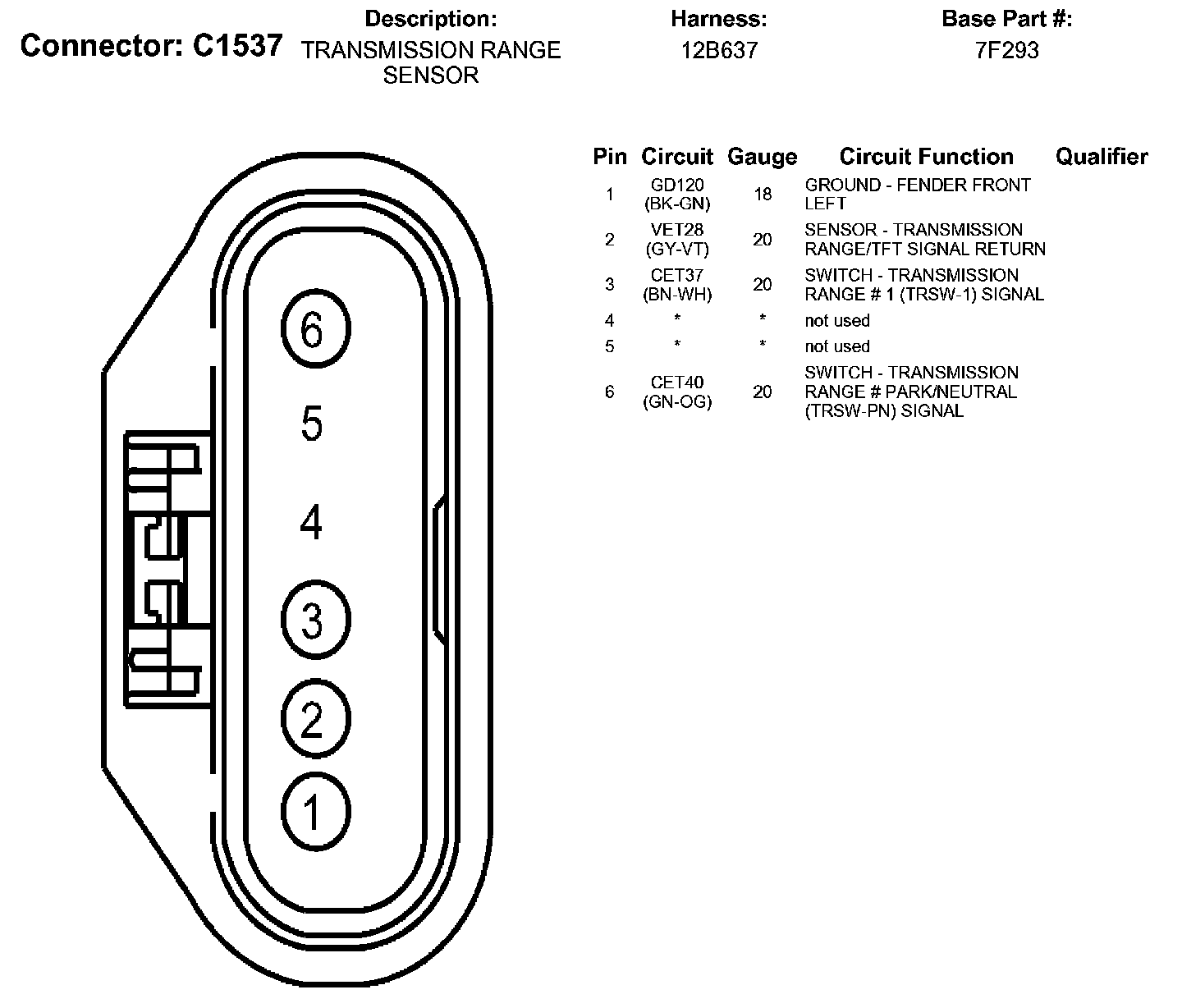

Transmission Range (TR) Sensor

C1537:
