Test Q: The Parking, Rear Or License Plate Lamps Are On Continuously

PINPOINT TEST Q: THE PARKING, REAR OR LICENSE PLATE LAMPS ARE ON CONTINUOUSLY

Normal Operation
The smart junction box (SJB) provides a ground for the parking lamp relay coil when a request for the parking lamps is received. When the parking lamp relay is energized, voltage is sent through circuit CBP08 (GY/YE) to the rear and front parking lamps.

This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- Headlamp switch
- SJB

Q1:

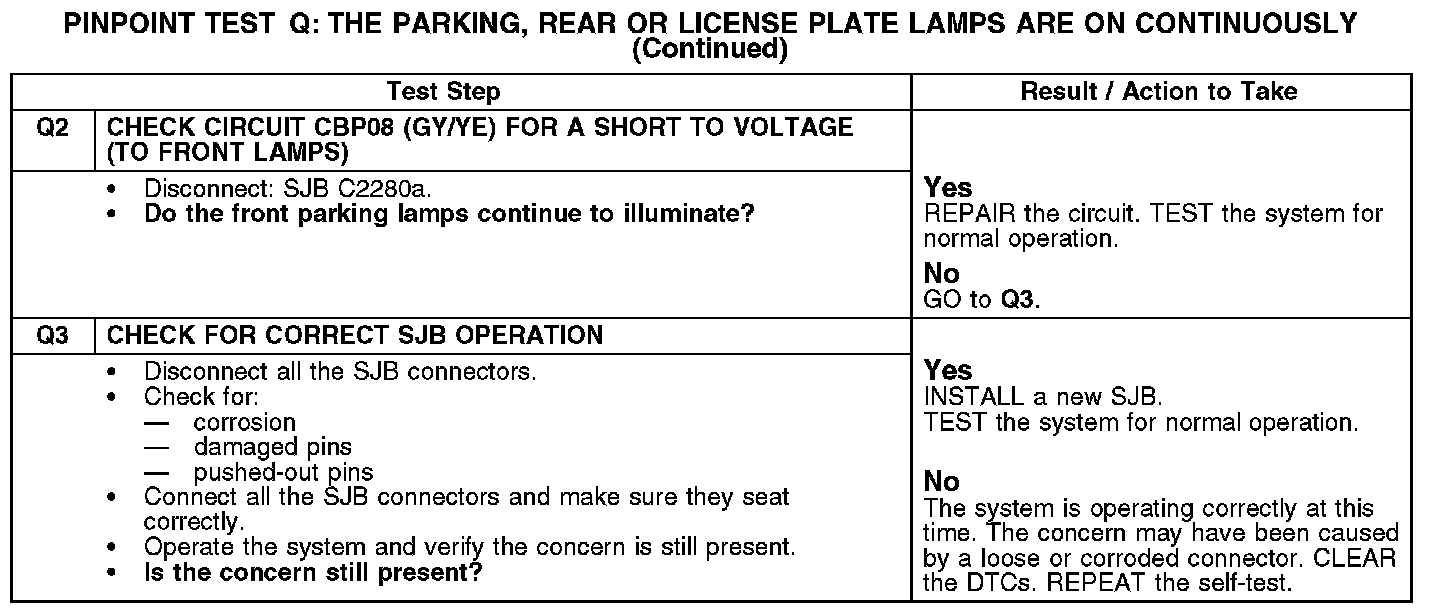

Q2-Q3:
