Parking Brake Warning Switch: Service and Repair

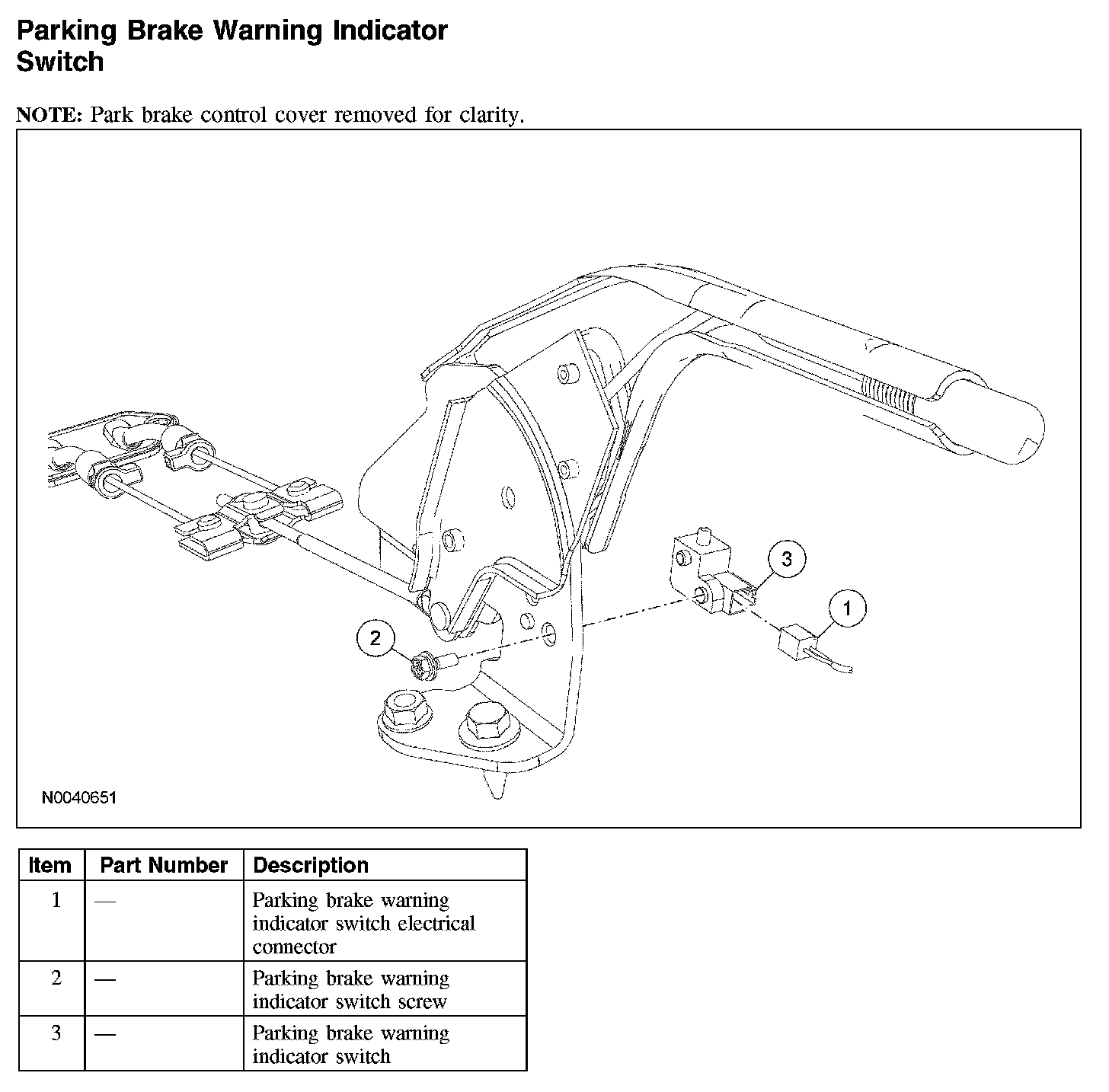

Parking Brake Warning Indicator Switch

NOTE: Park brake control cover removed for clarity.

Parking Brake Warning Indicator Switch:

Removal and Installation
1. Remove the floor console.
2. Disconnect the parking brake warning indicator switch electrical connector.
3. Remove the parking brake warning indicator switch screw.
4. Remove the parking brake warning indicator switch.
5. To install, reverse the removal procedure.
