Test R: The Heated Seat Is Inoperative - Passenger Seat Does Heat But The Heated Seat Indicator Does Not Illuminate When Presse

PINPOINT TEST R: THE HEATED SEAT IS INOPERATIVE - PASSENGER SEAT DOES HEAT BUT THE HEATED SEAT INDICATOR DOES NOT ILLUMINATE WHEN PRESSED

Normal Operation
Upon receiving a signal from the heating ventilation air conditioning (HVAC) module, the heated seat module will decrease one setting (the sequence is HI, LO, OFF, HI, etc.). When the passenger heated seat is set to HI, both LED indicators above the passenger heated seat control button will illuminate. When the passenger heated seat is set to LO, only the left LED on the passenger heated seat indicator will illuminate. When the passenger heated seat is set to OFF, neither passenger heated seat LED will illuminate.

This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- Heated seat module
- HVAC module

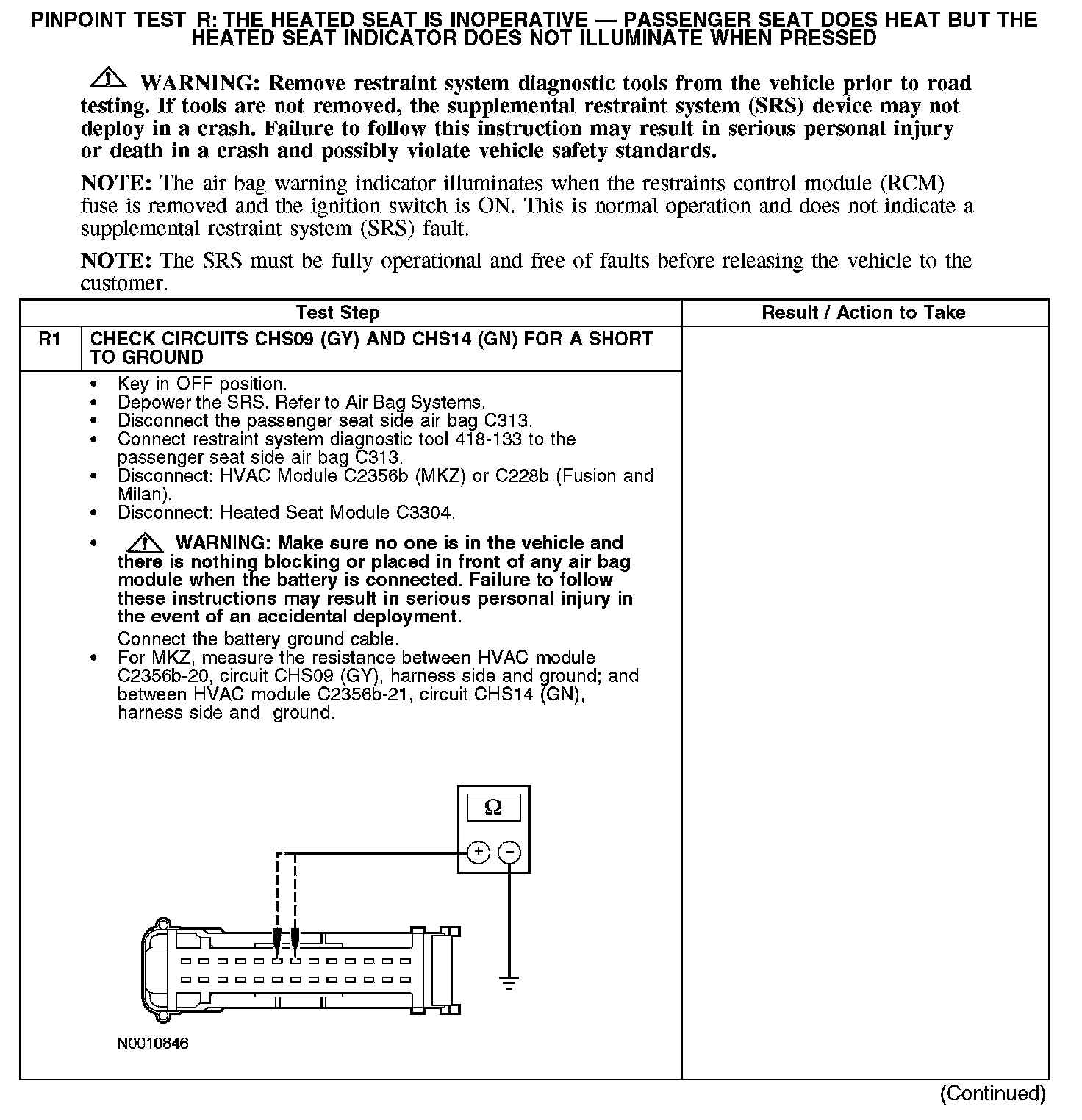

R1:

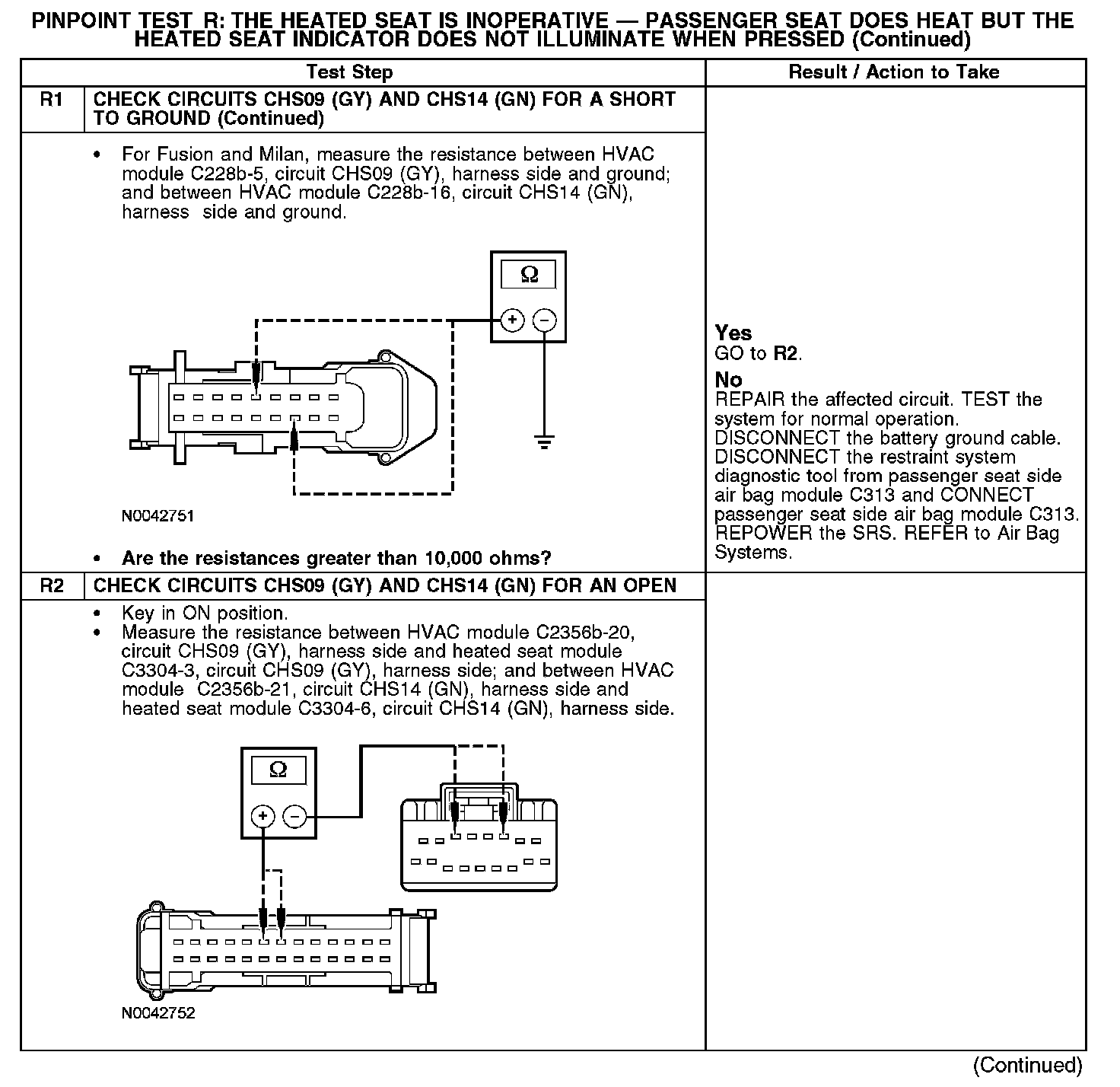

R1-R2:

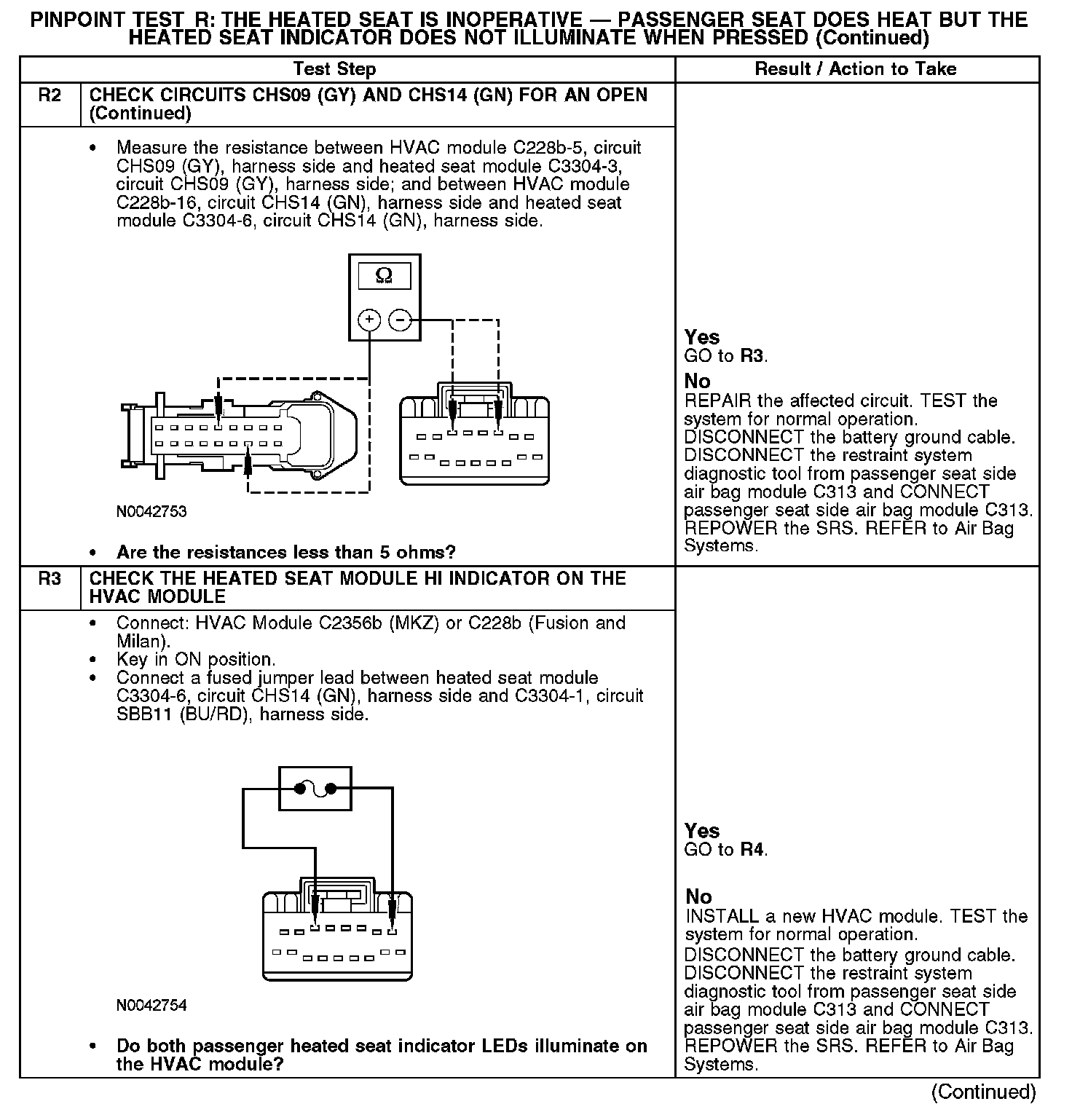

R2-R3:

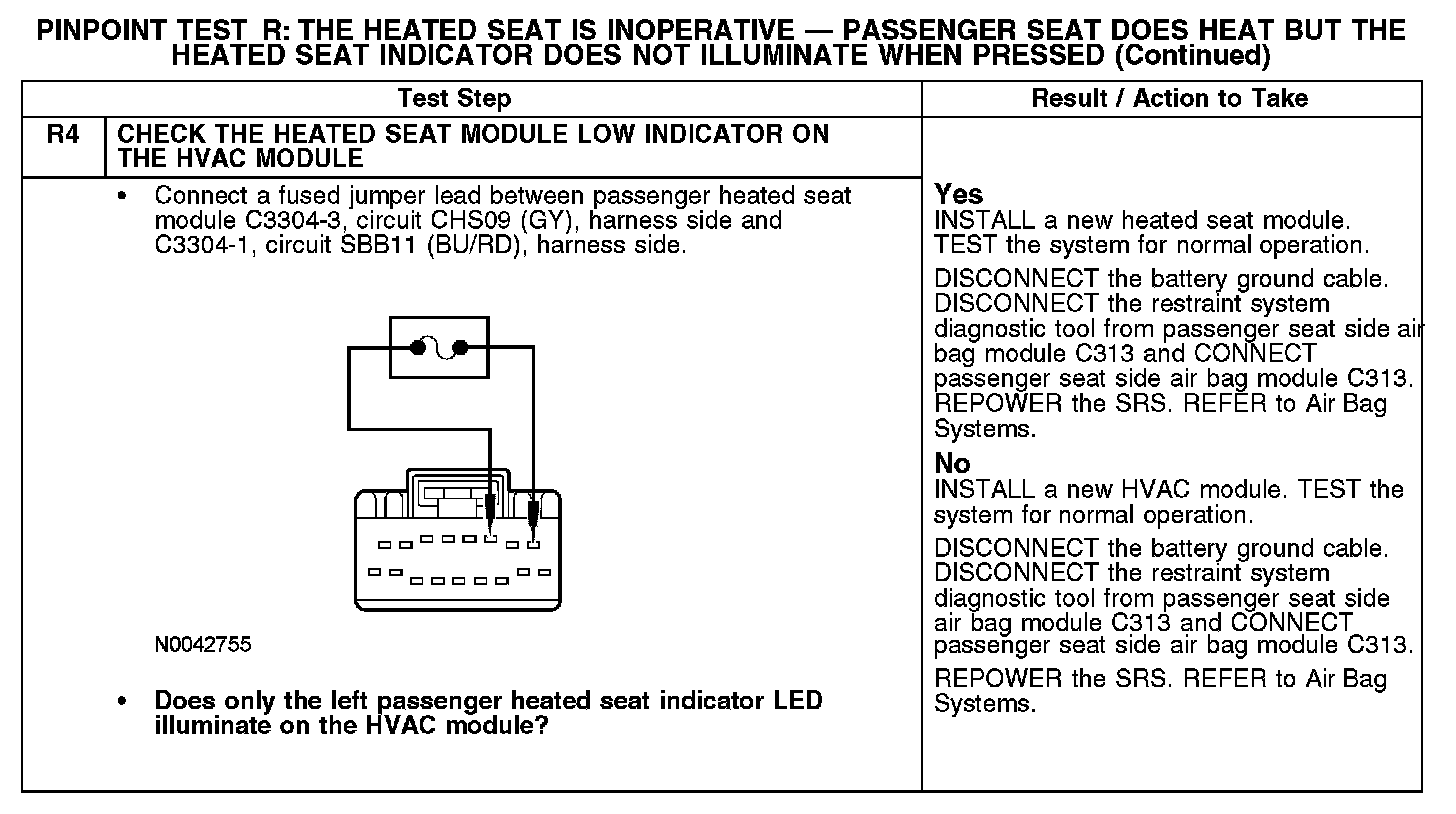

R4:
