Engine Lubrication Components Exploded View

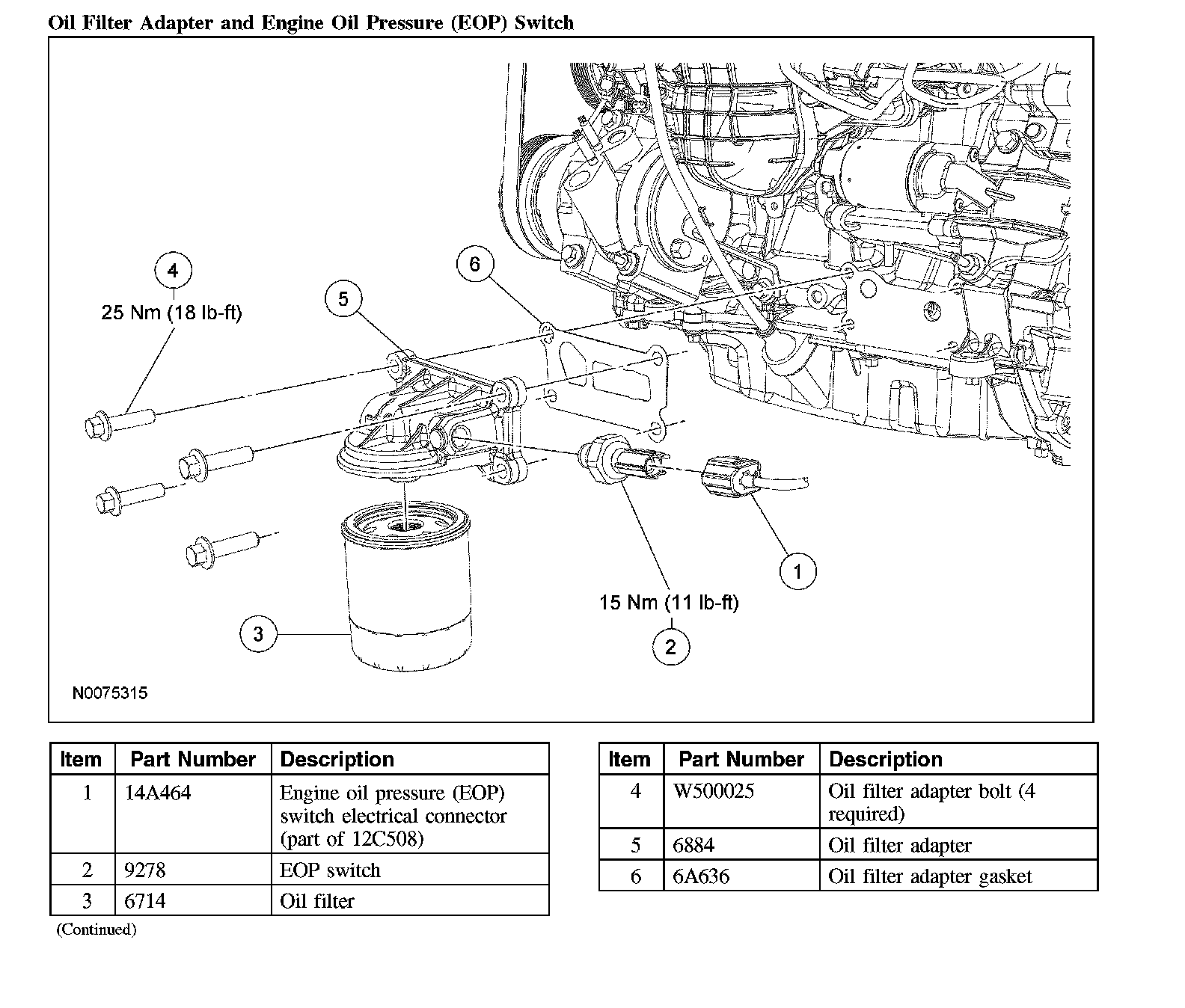

Oil Filter Adapter and Engine Oil Pressure (EOP) Switch
Oil Filter Adapter and Engine Oil Pressure (EOP) Switch:
