Wheel Speed Sensor - Rear

Wheel Speed Sensor - Rear

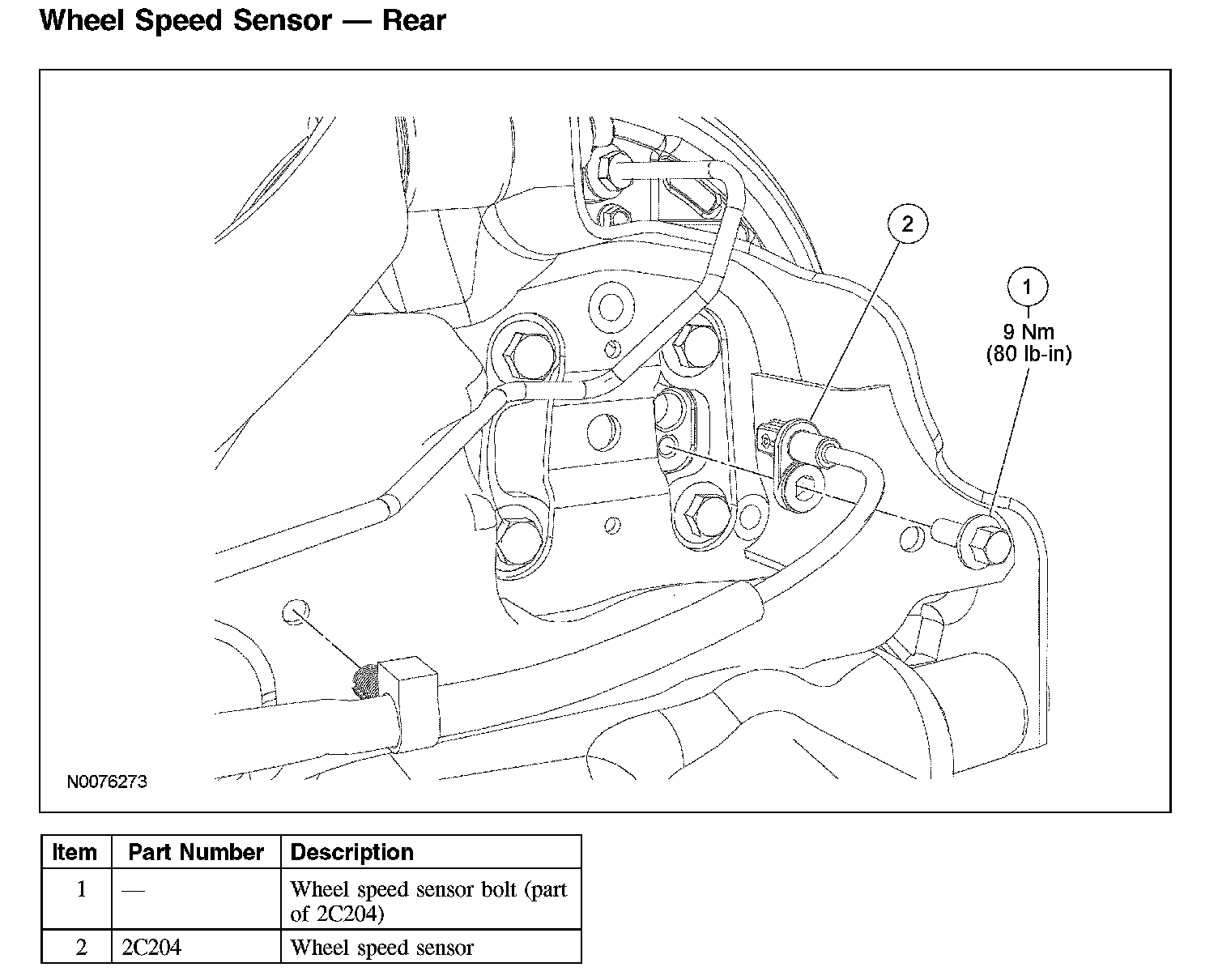

Wheel Speed Sensor - Rear:

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.
2. Remove the wheel speed sensor bolt.
^ To install, tighten to 9 Nm (80 lb-in).

3. NOTE: Not all the clips are part of the sensor assembly and may not be reusable.

Disconnect the wheel speed sensor electrical connector.
^ Remove the sensor by detaching the pin-type retainer and pulling the sensor grommets out of the clips.
4. To install, reverse the removal procedure.
