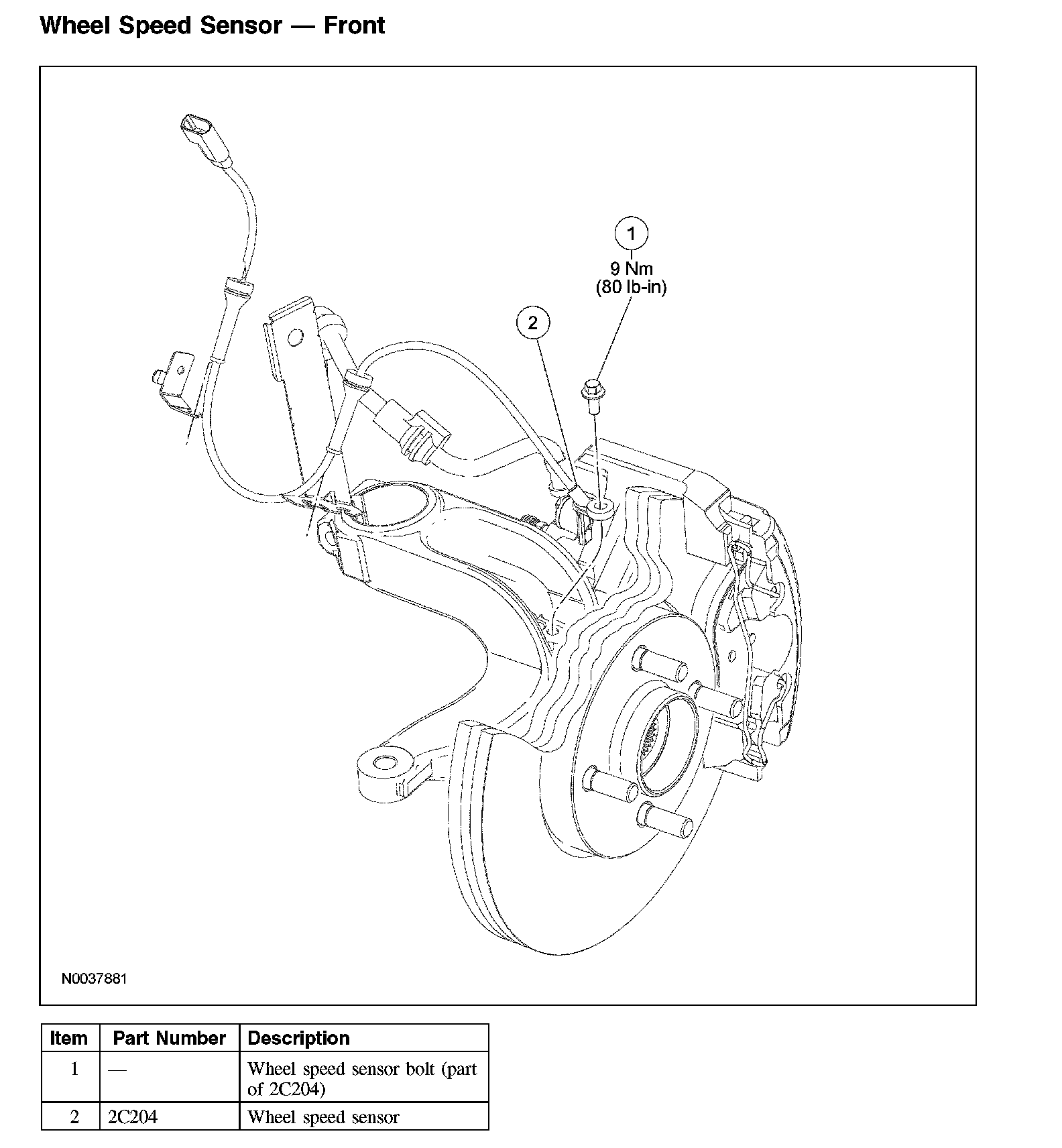

Wheel Speed Sensor - Front

Wheel Speed Sensor - Front

Wheel Speed Sensor - Front:

Removal and Installation
1. Remove the wheel and tire.
2. Remove the wheel speed sensor bolt.
^ To install, tighten to 9 Nm (80 lb-in).

3. Disconnect the wheel speed sensor electrical connector.
^ Remove the sensor by pulling the sensor grommets out of the clips.

4. To install, reverse the removal procedure.
