Inertia Fuel Shutoff Switch: Service and Repair

INERTIA FUEL SHUTOFF (IFS) SWITCH

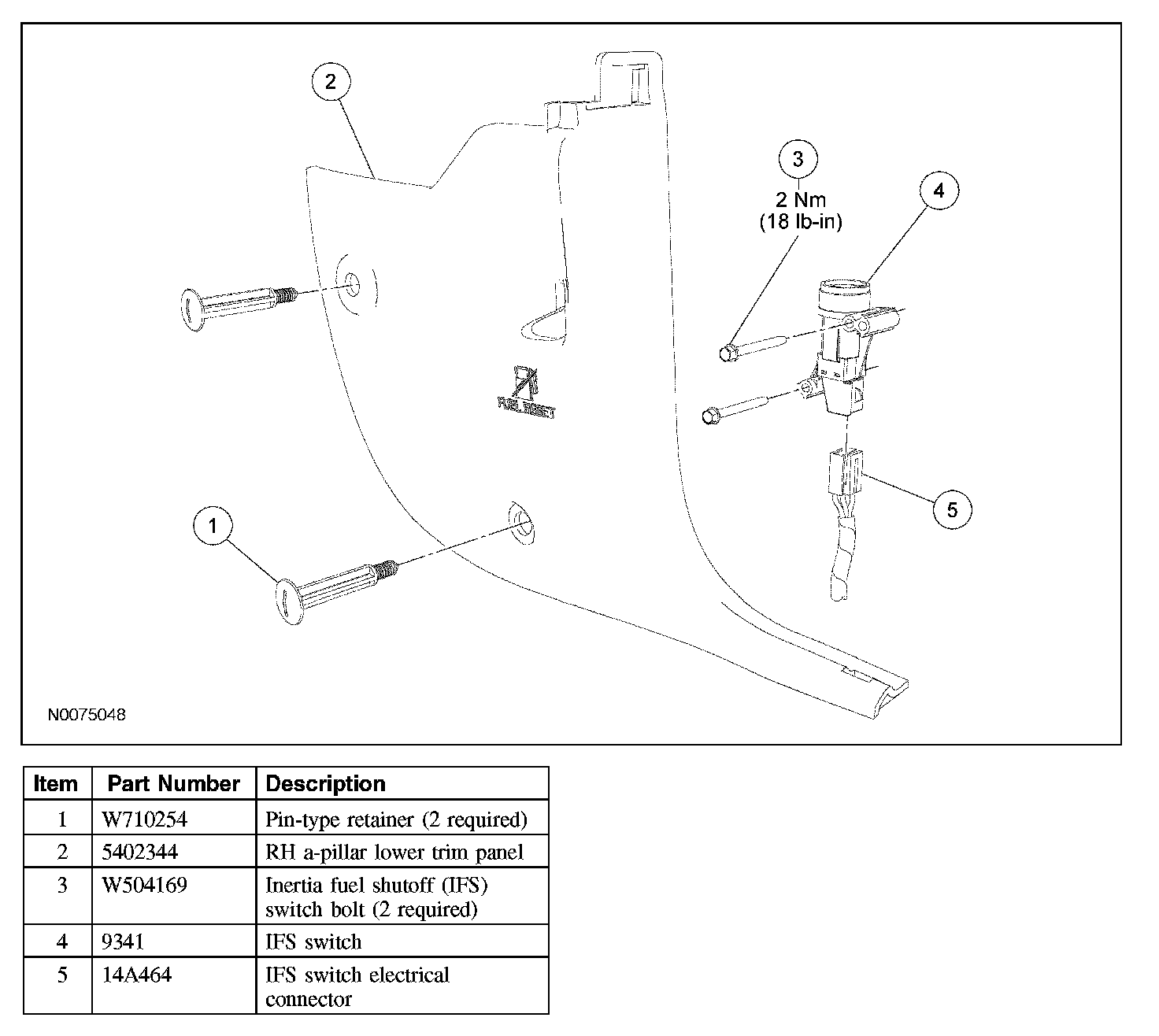

Removal and Installation
1. Remove the 2 pin-type retainers and the RH a-pillar lower trim panel.
2. Disconnect the inertia fuel shutoff (IFS) switch electrical connector.

3. CAUTION: Do not overtighten the fasteners or damage to the switch will occur.

Remove the 2 bolts and the IFS switch.
- To install, tighten to 2 Nm (18 lb-in).

4. To install, reverse the removal procedure.
- If necessary, reset the IFS switch after the installation has been completed.
