Headlamp Switch: Service and Repair

HEADLAMP SWITCH







Removal and Installation

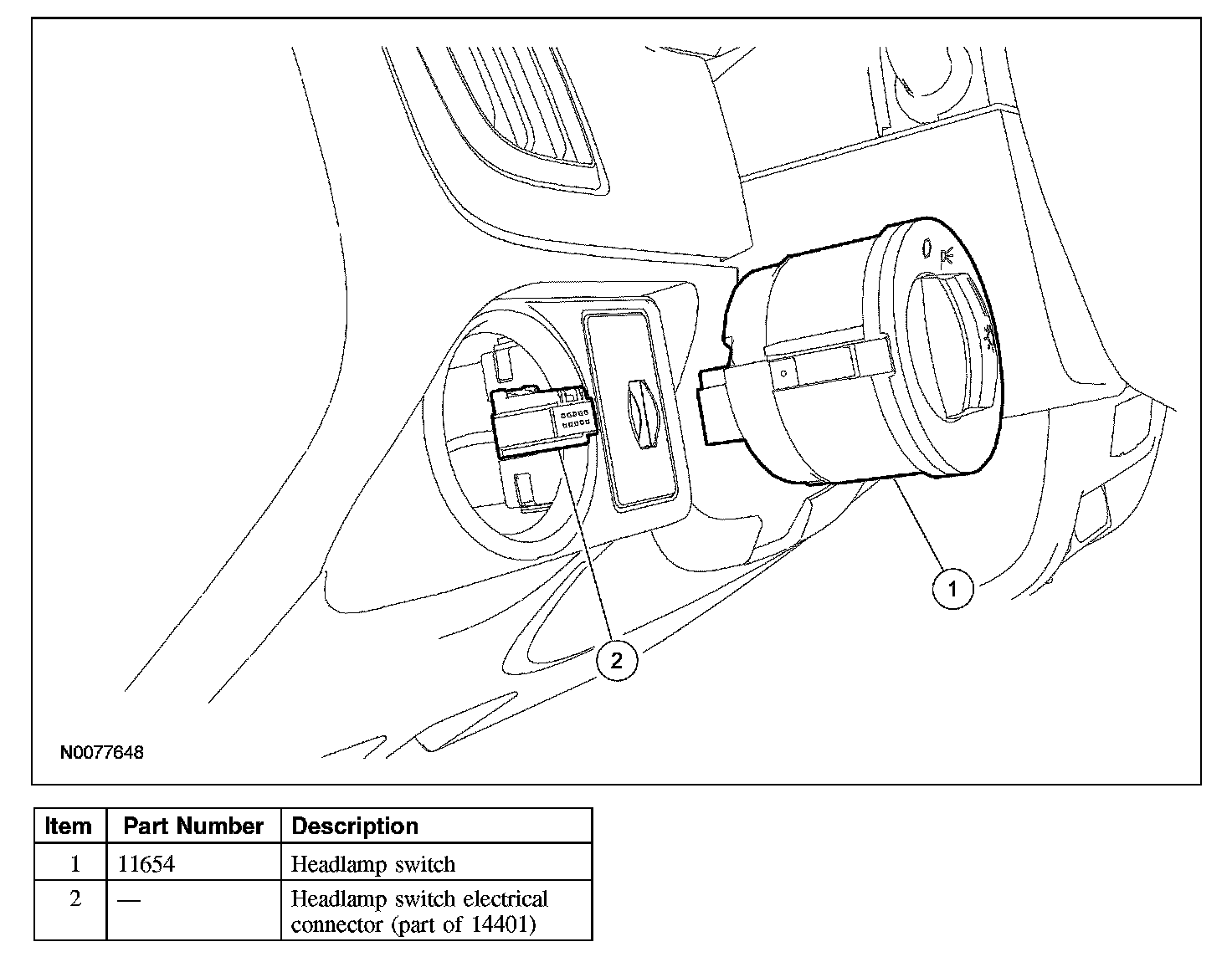

1. NOTE: The headlamp switch is removed by reaching from underneath the instrument panel and pushing it from behind.

Release the clips and remove the headlamp switch.
- Disconnect the electrical connector.

2. To install, reverse the removal procedure.
