Backup Lamp Switch: Service and Repair

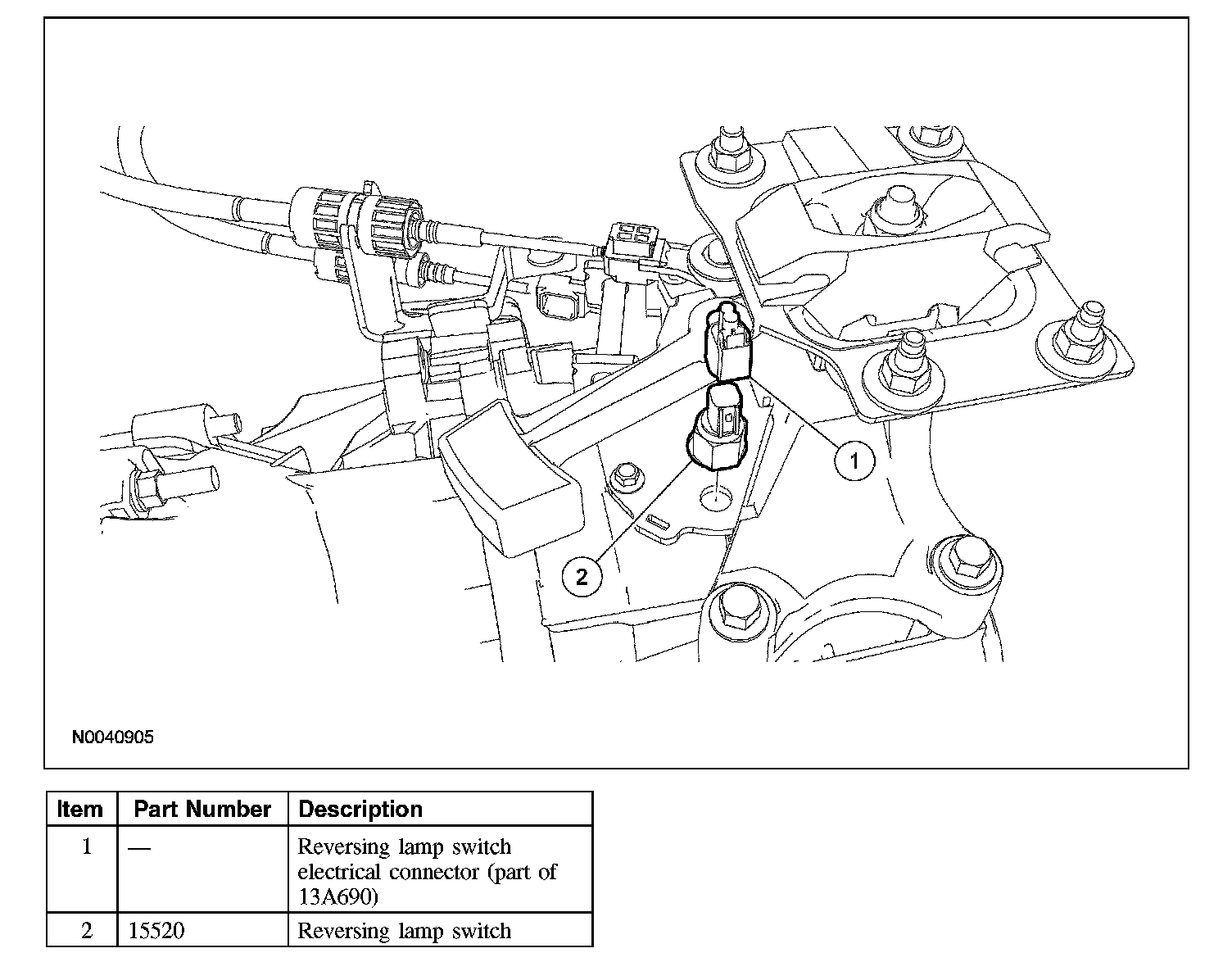

REVERSING LAMP SWITCH







Removal and Installation
1. Remove the battery tray.
2. Disconnect the electrical connector and remove the reversing lamp switch.
3. To install, reverse the removal procedure.
