Air Dam: Service and Repair

AIR DEFLECTOR - LOWER, RADIATOR

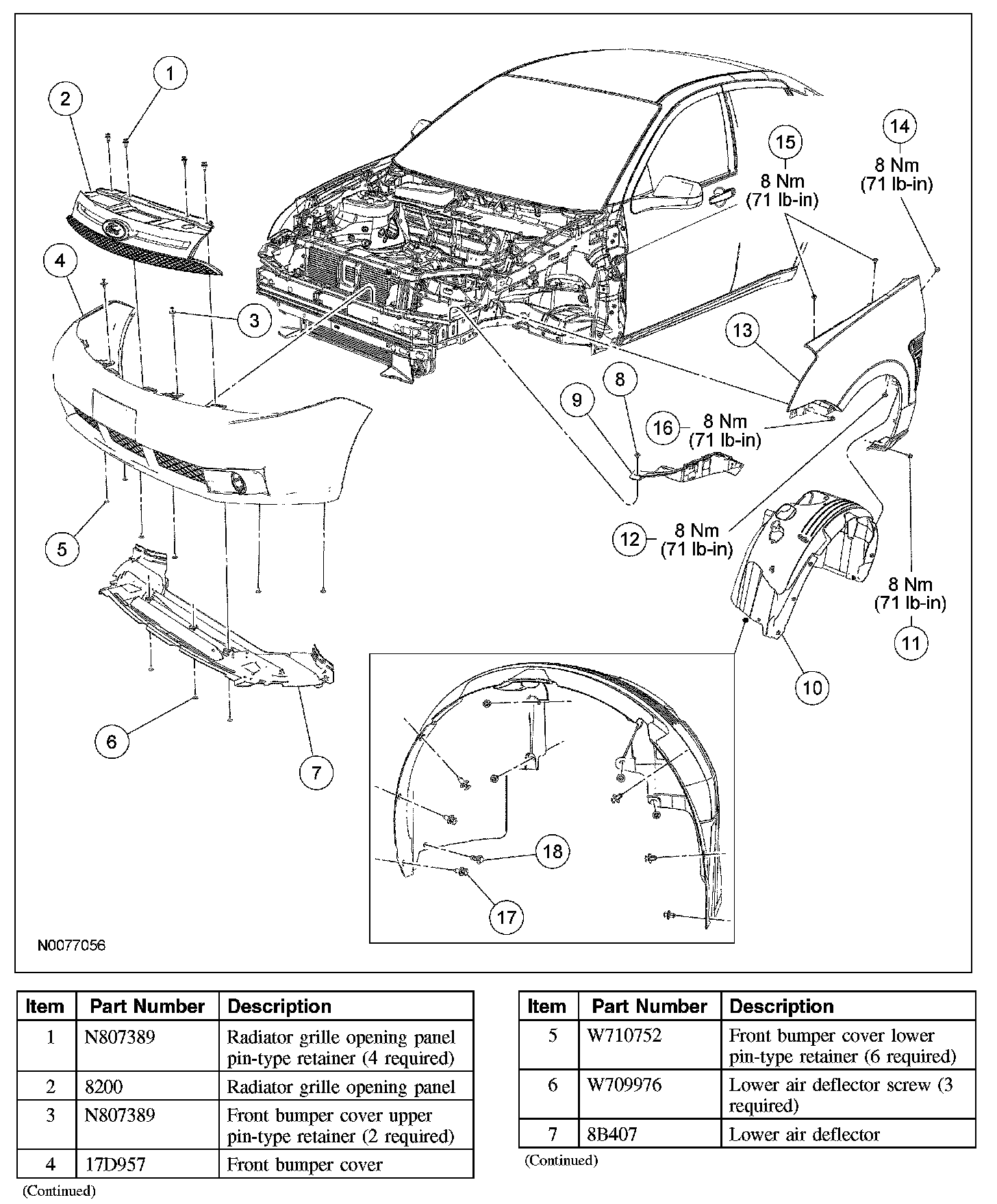

Exploded View

Part 1:

Part 2:

Removal and Installation

1. NOTE: LH shown, RH similar.

Remove the 2 screws from rear of the air deflector.







2. Remove the 6 screws and 3 pin-type retainers from the bottom of the air deflector.







3. To install, reverse the removal procedure.
