Amplifier: Service and Repair

SUBWOOFER

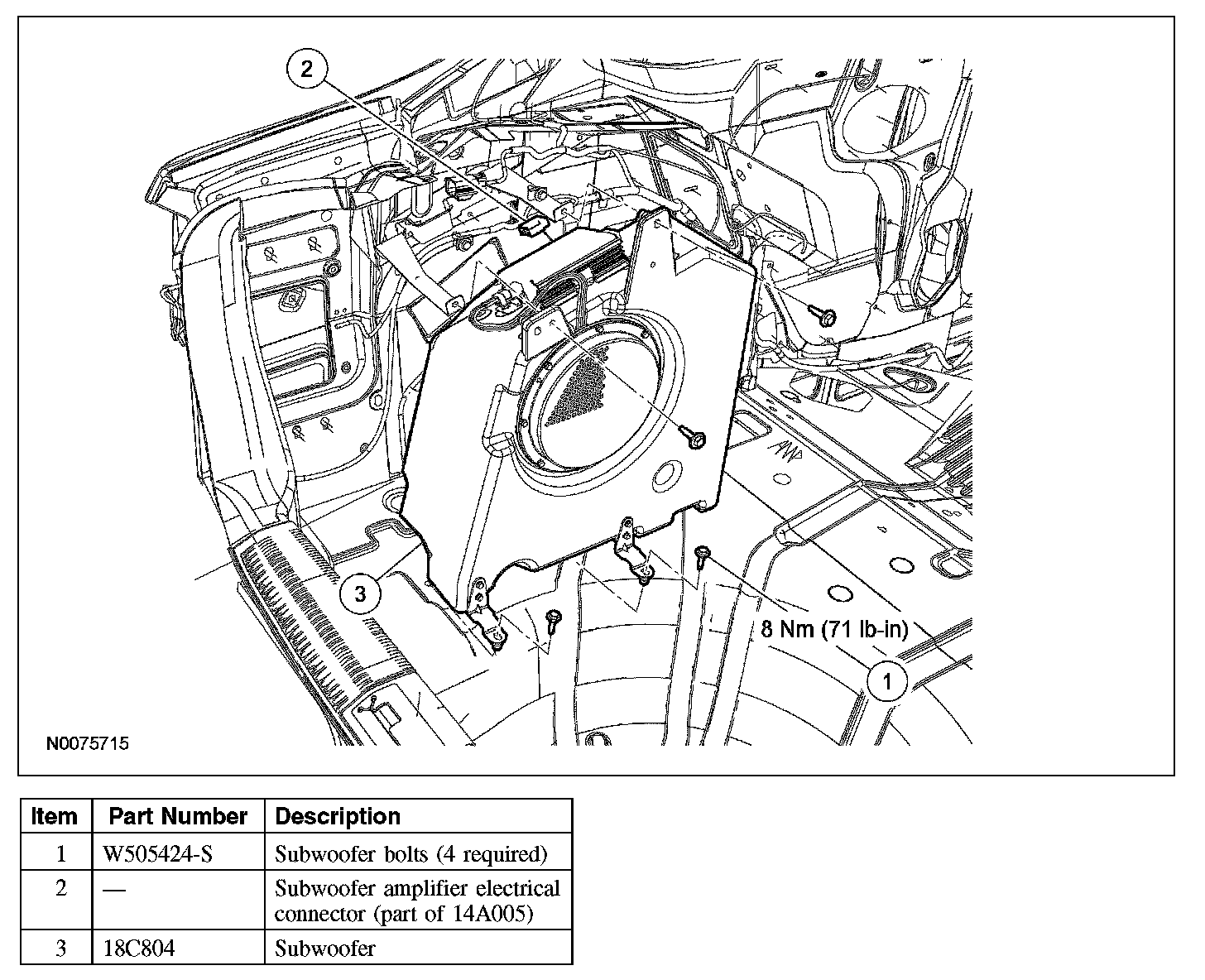

Removal and Installation

NOTE: The subwoofer speaker, amplifier, and enclosure are only replaced as a complete assembly.

1. Remove the LH luggage compartment trim panel.
2. Disconnect the subwoofer amplifier electrical connector.
3. Remove the 4 bolts and the subwoofer.
- To install, tighten to 8 Nm (71 lb-in).

4. To install, reverse the removal procedure.
