Symptom Chart - Noise, Vibration and Harshness (NVH)
>>
Four Wheel Drive (4WD) Systems - All Wheel Drive (AWD)
Four Wheel Drive (4WD) Systems - All Wheel Drive (AWD)
Symptom Chart - Noise, Vibration and Harshness (NVH)

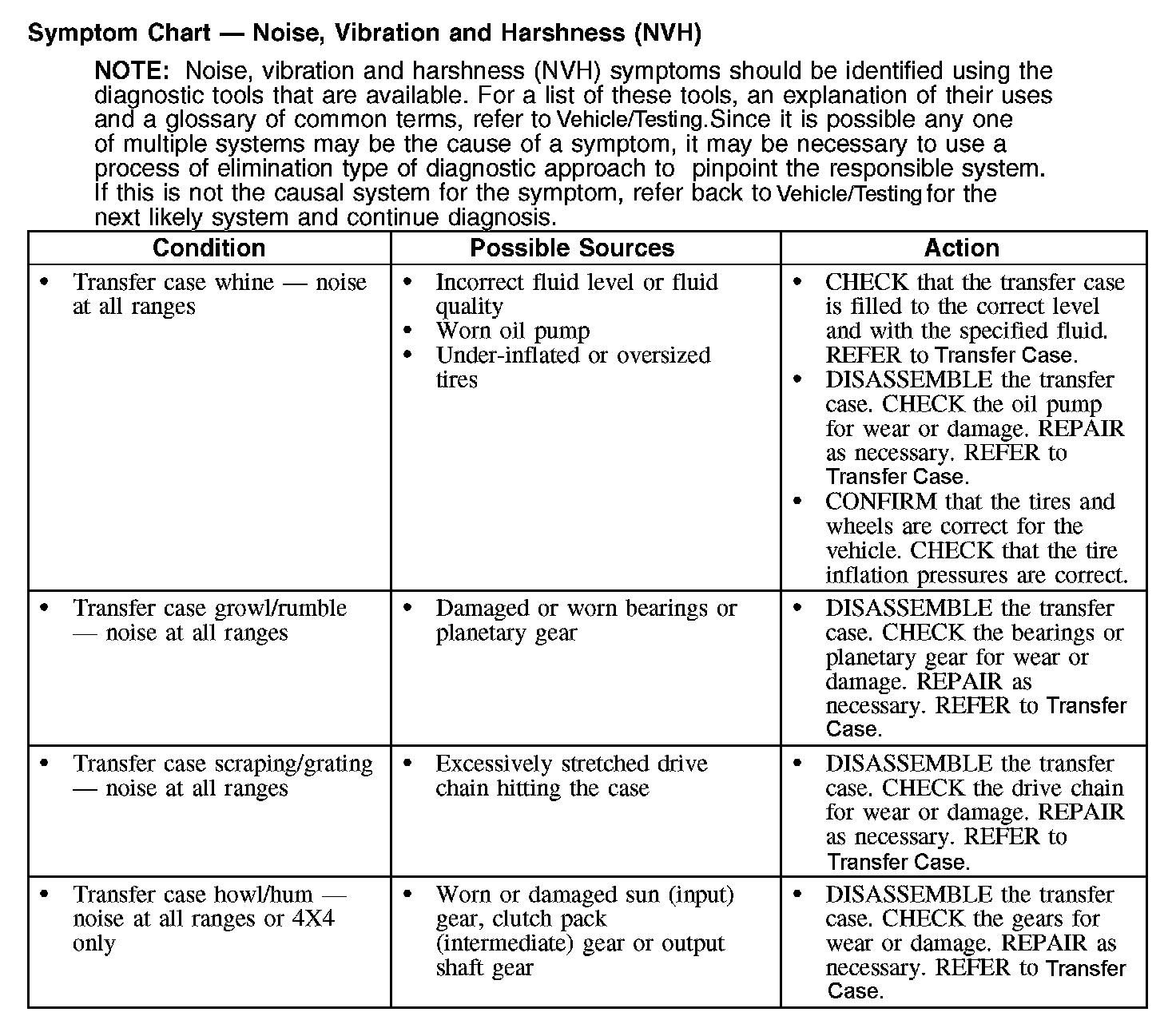

Symptom Chart - Noise, Vibration and Harshness (NVH):
