Ball Joint: Specifications
Ball Joint
Deflection

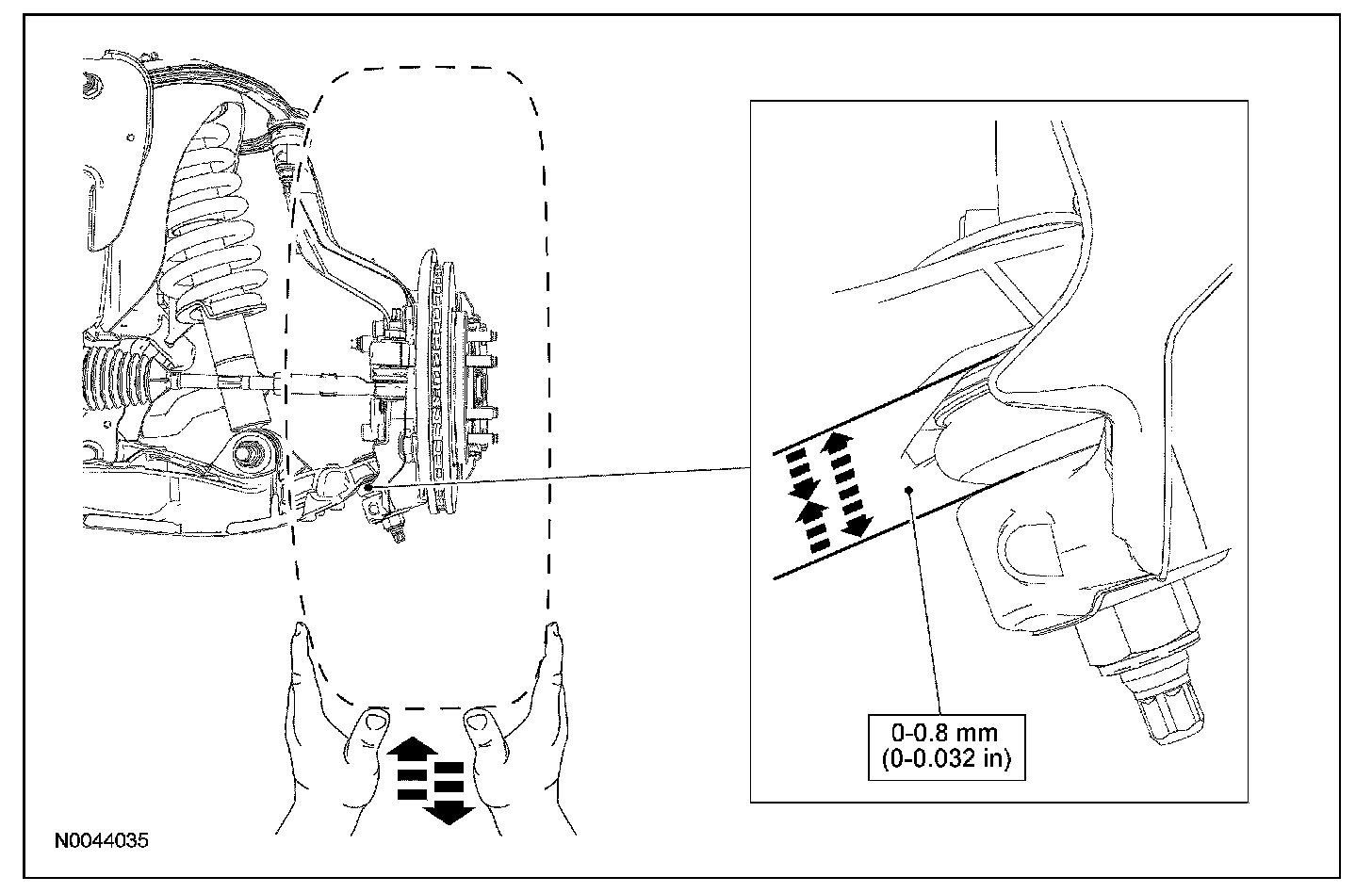

Lower
0-0.8 mm (0-0.032 in)

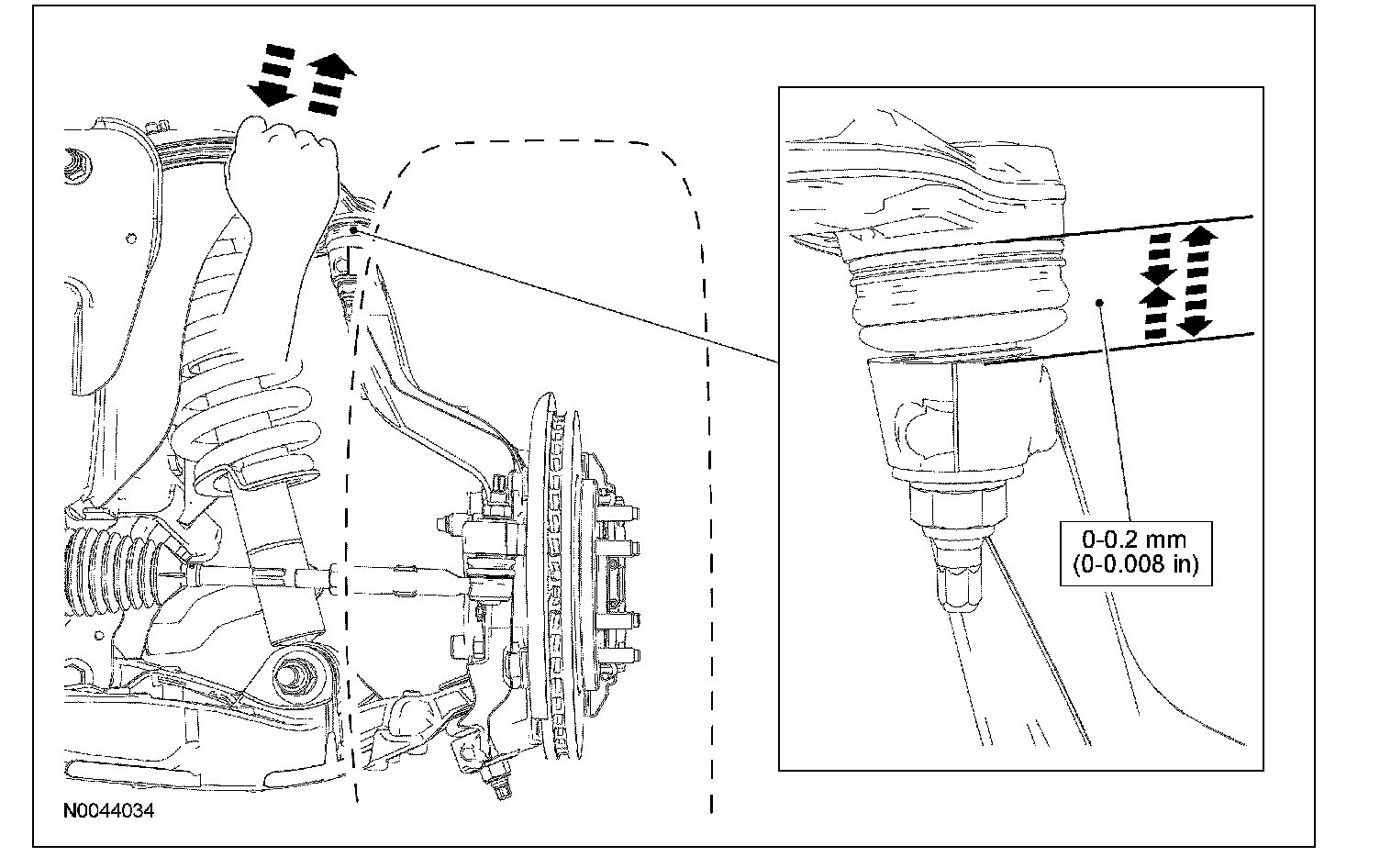

Upper
0-0.2 mm (0-0.008 in)
