Transmission Mode Switch: Service and Repair

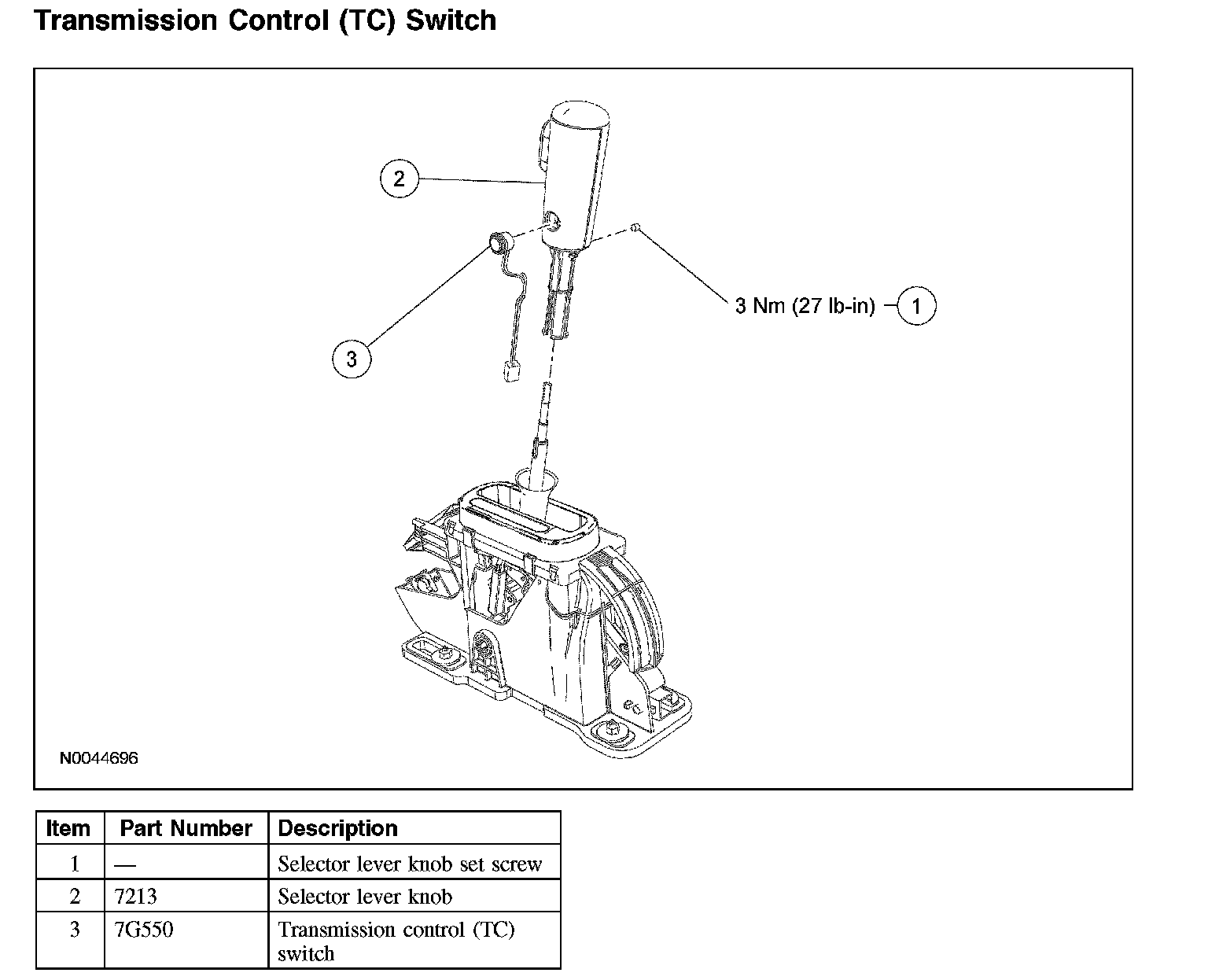

Transmission Control (TC) Switch

Transmission Control (TC) Switch:





Removal
1. Remove the selector lever knob.
2. Remove the transmission control (TC) switch from the knob.

Installation
1. Install the TC switch into the selector lever knob.
2. Install the selector lever knob.
