Test E: Turbine Shaft Speed (TSS), Intermediate Shaft Speed and Output Shaft Speed (OSS) Sensors

PINPOINT TEST E: TURBINE SHAFT SPEED (TSS), INTERMEDIATE SHAFT SPEED AND OUTPUT SHAFT SPEED (OSS) SENSORS

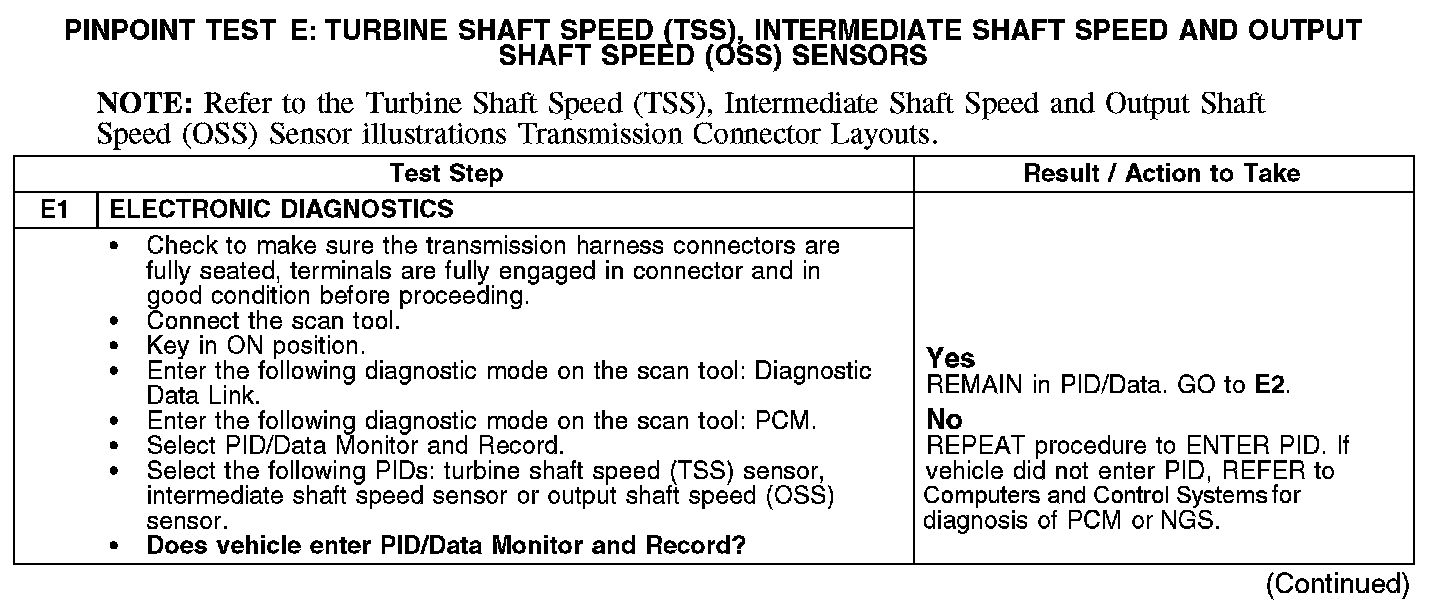

E1:

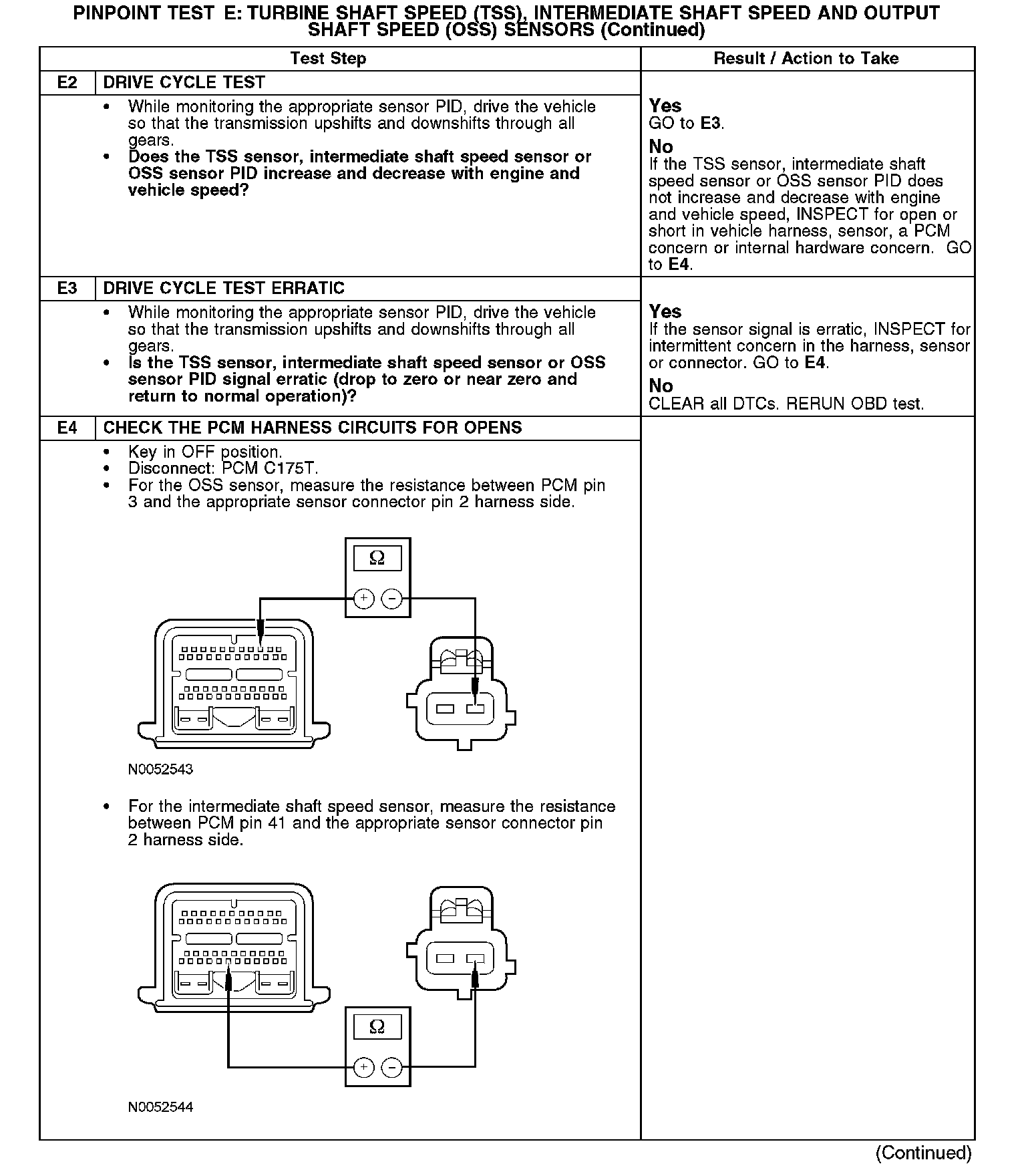

E2-E4:

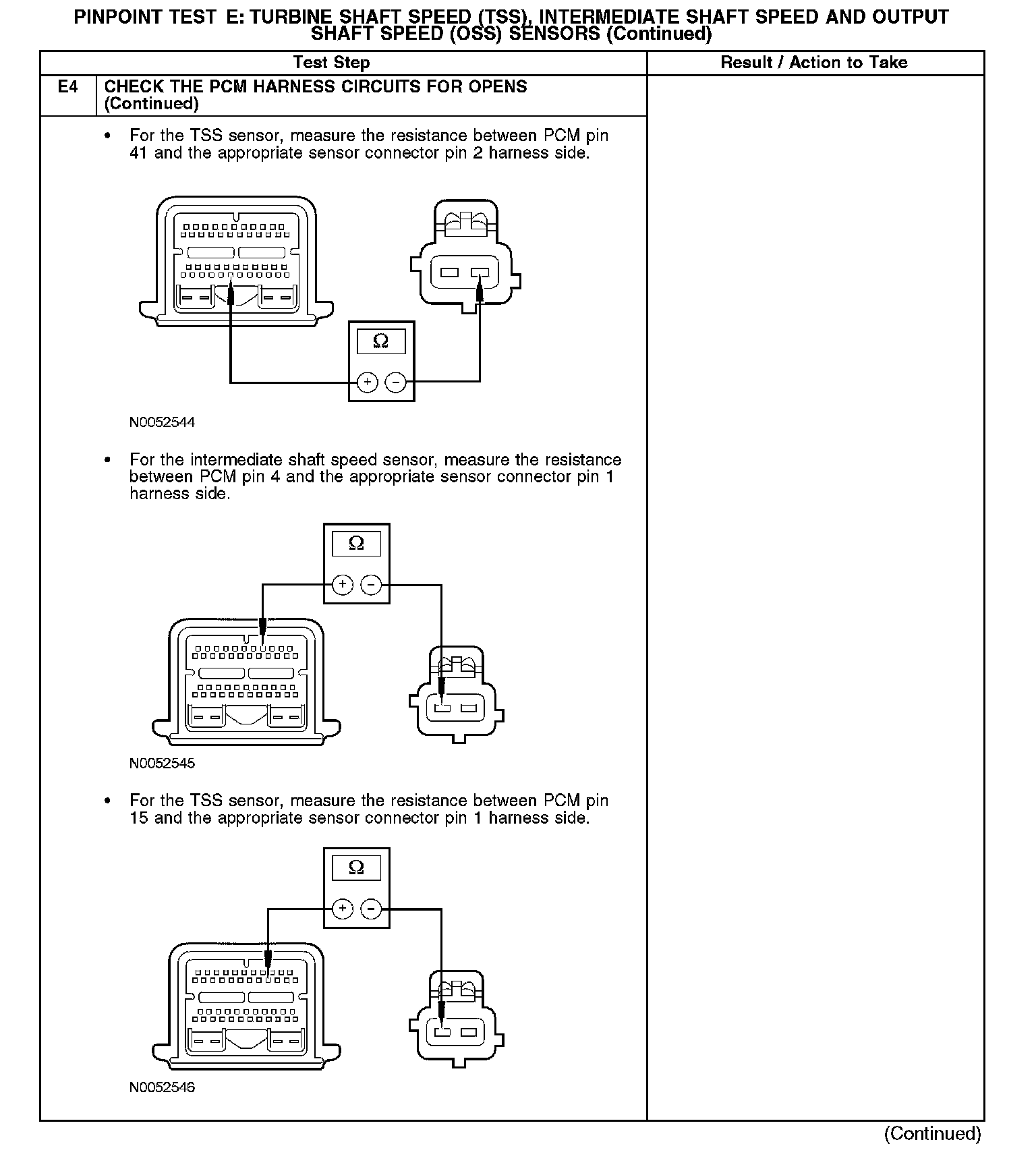

E4 (Continued):

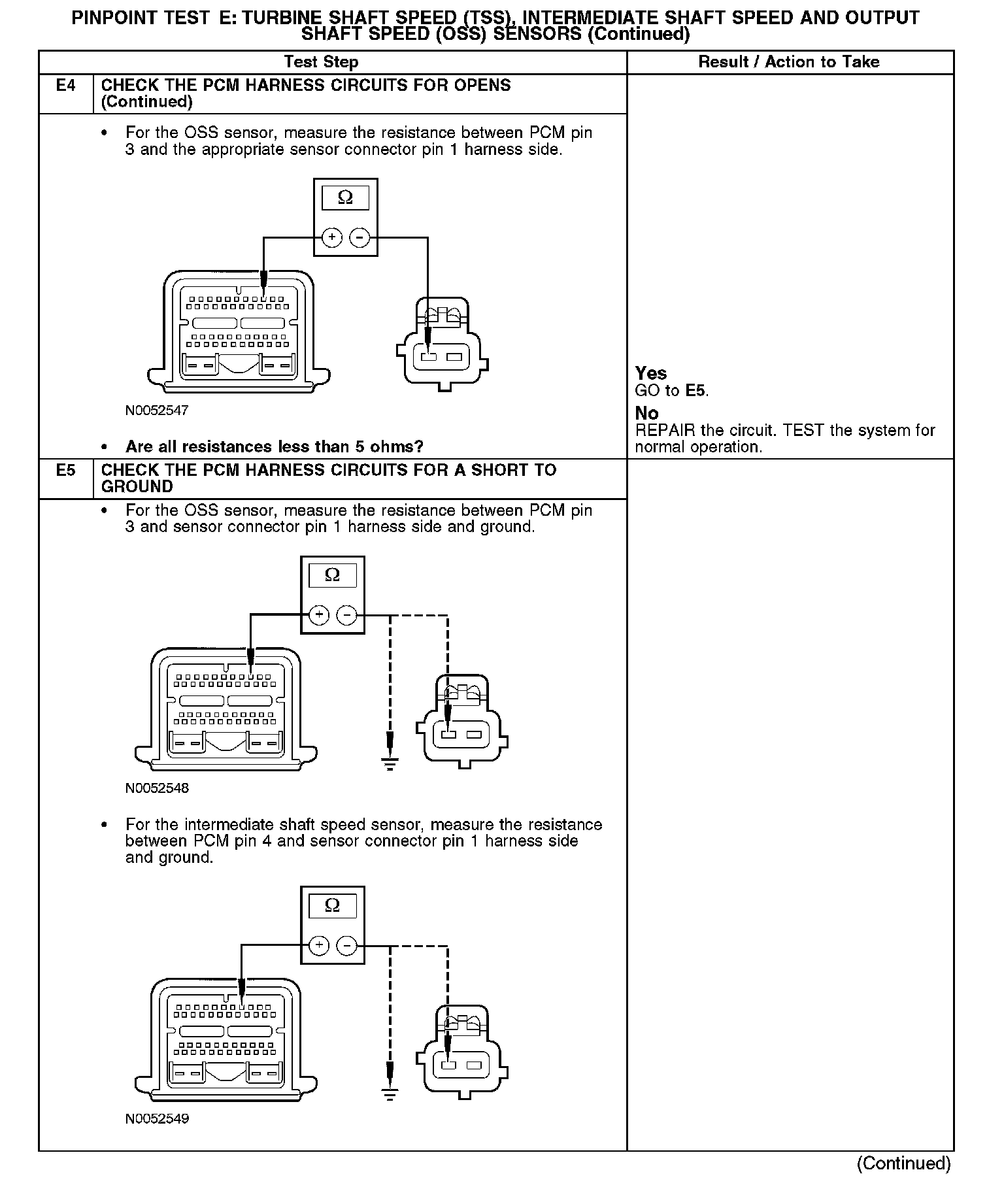

E4 (Continued)-E5:

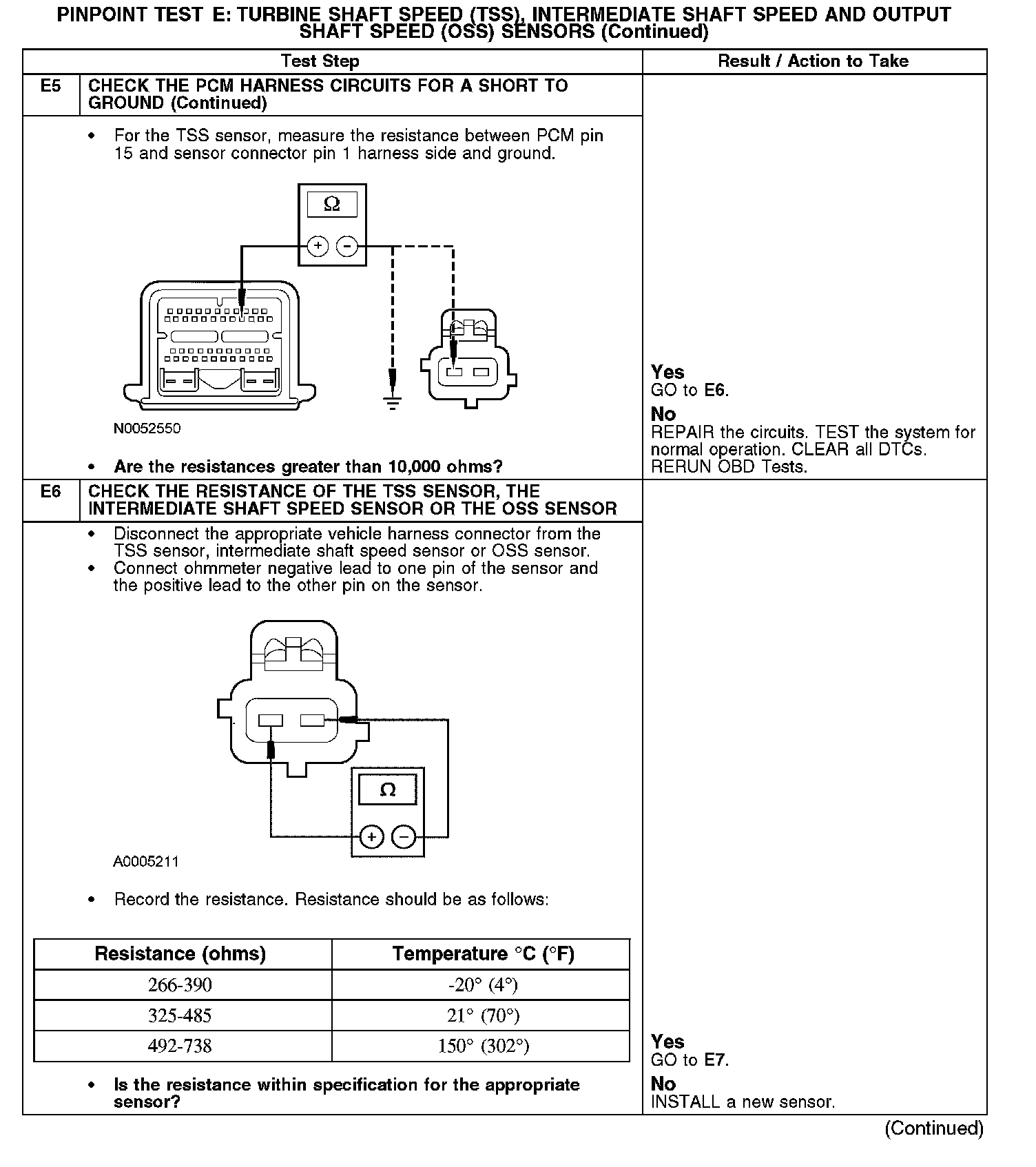

E5 (Continued)-E6:




E7:
