Power Window Switch
>>
Diagrams
>>
Master Window Adjust Switch
Master Window Adjust Switch

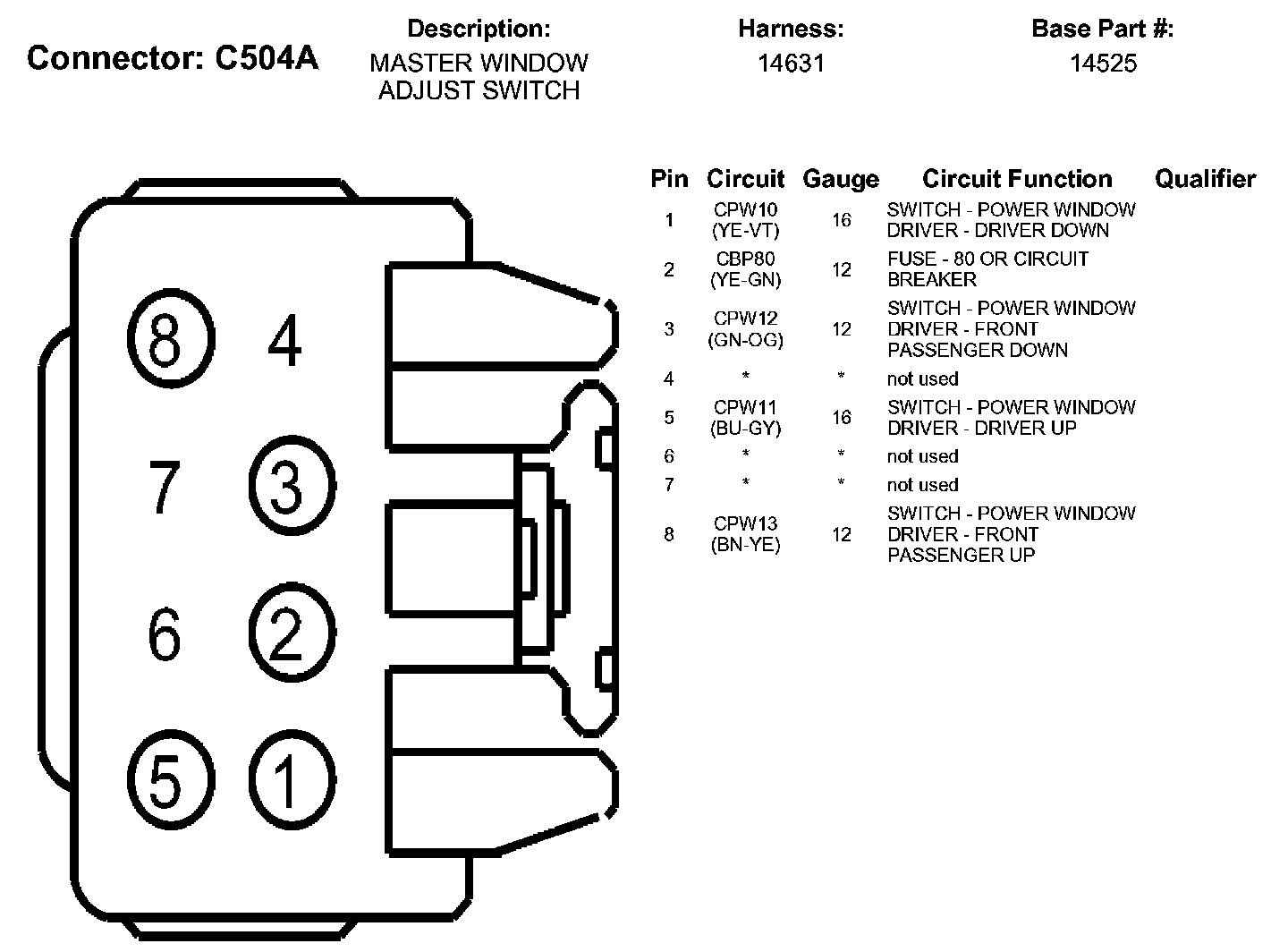

C504A:

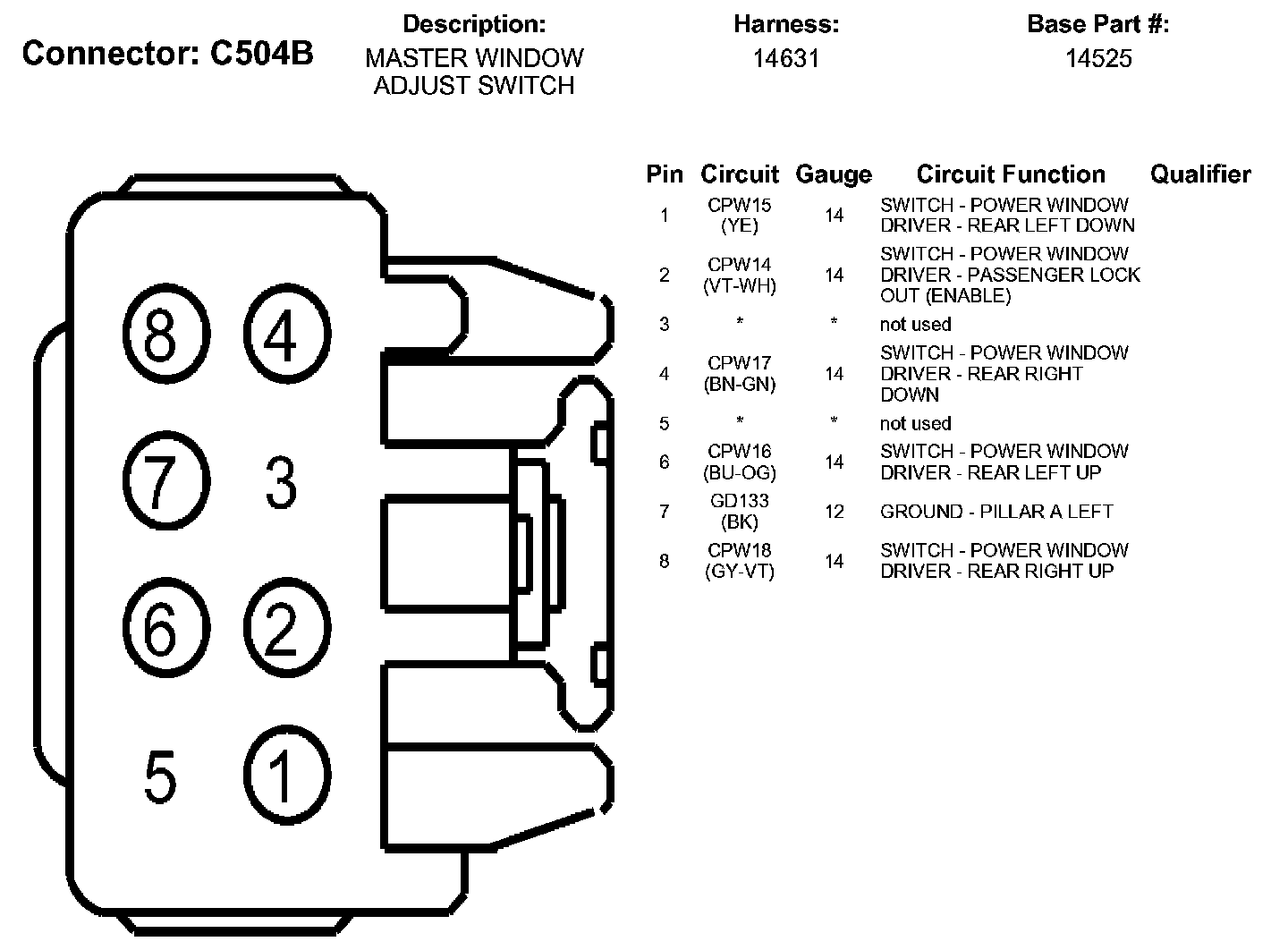

C504B:
