Steering Angle Sensor: Service and Repair

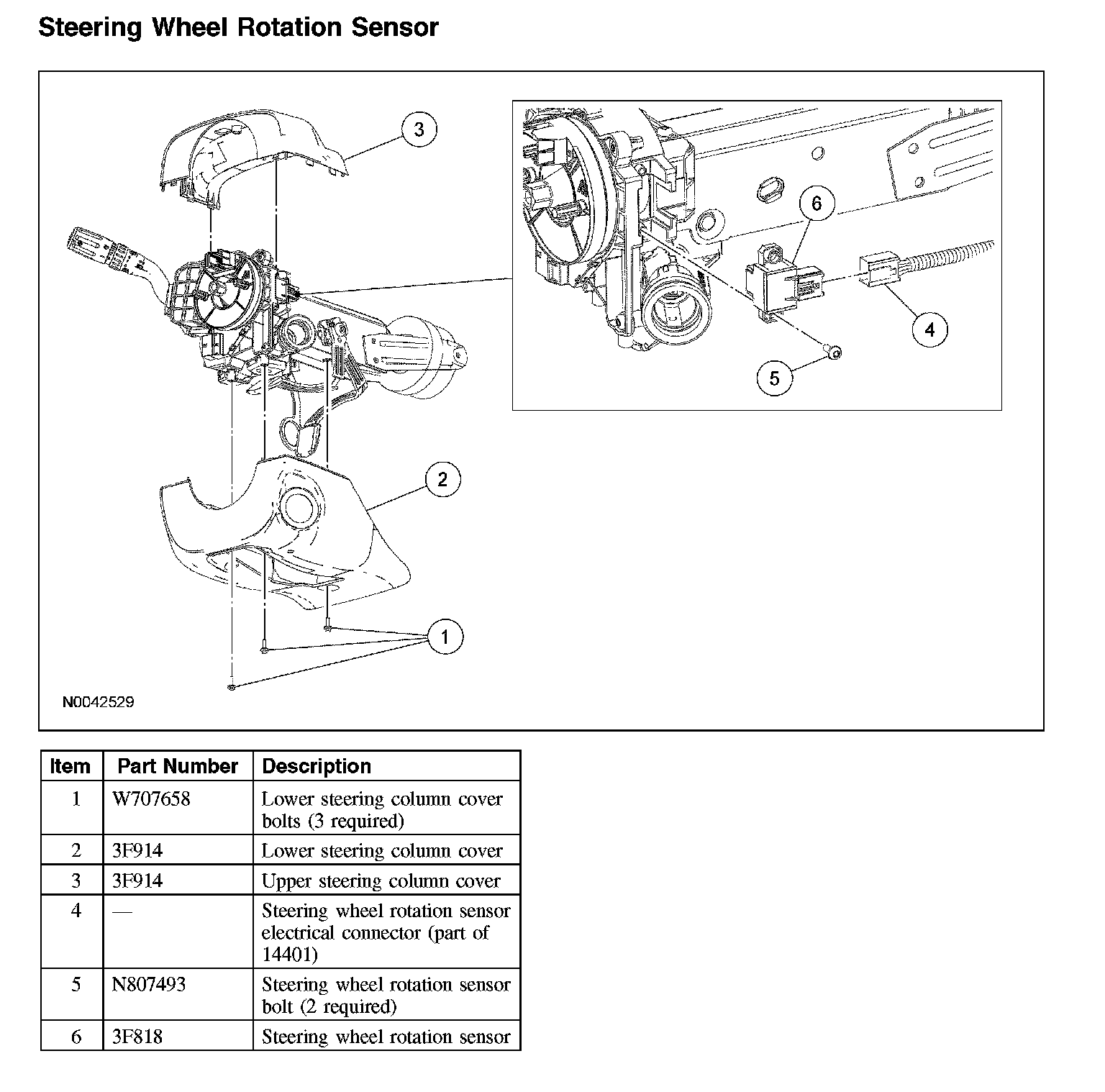

Steering Wheel Rotation Sensor





Removal and Installation
1. Remove the 3 lower steering column cover bolts and the lower steering column cover.
2. Remove the upper steering column cover.
3. Disconnect the steering wheel rotation sensor electrical connector.
4. Remove the 2 bolts and the steering wheel rotation sensor.
5. To install, reverse the removal procedure.
