Test E: The Control Illumination Is Always On - All Hardwired Illumination

PINPOINT TEST E: THE CONTROL ILLUMINATION IS ALWAYS ON - ALL HARDWIRED ILLUMINATION

Normal Operation
The smart junction box (SJB) supplies a pulse-width modulated (PWM) voltage signal to the dimmable illumination sources on circuit CLN04 (BU/BN).

This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- SJB

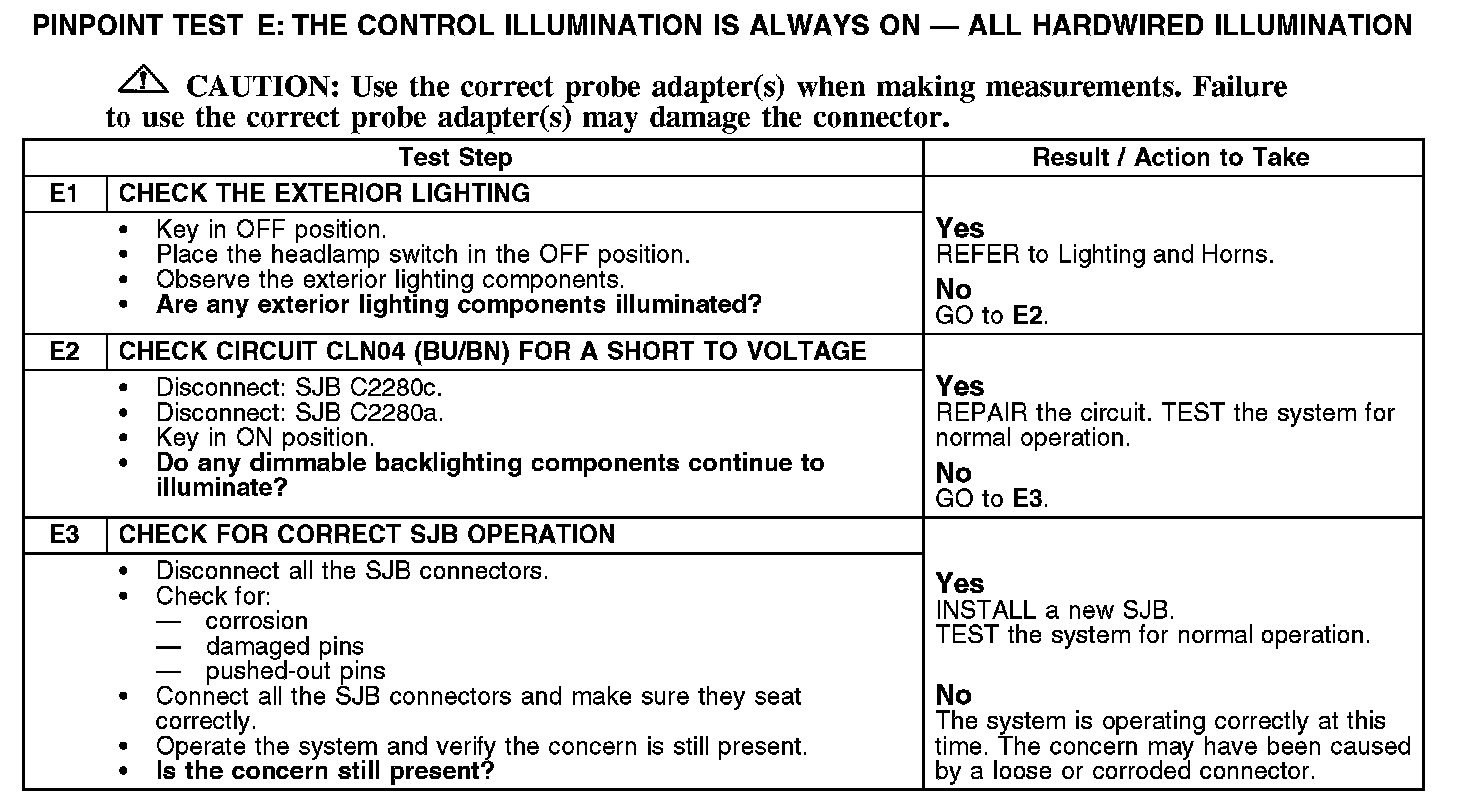

E1-E3:
