Dimmer Switch: Service and Repair

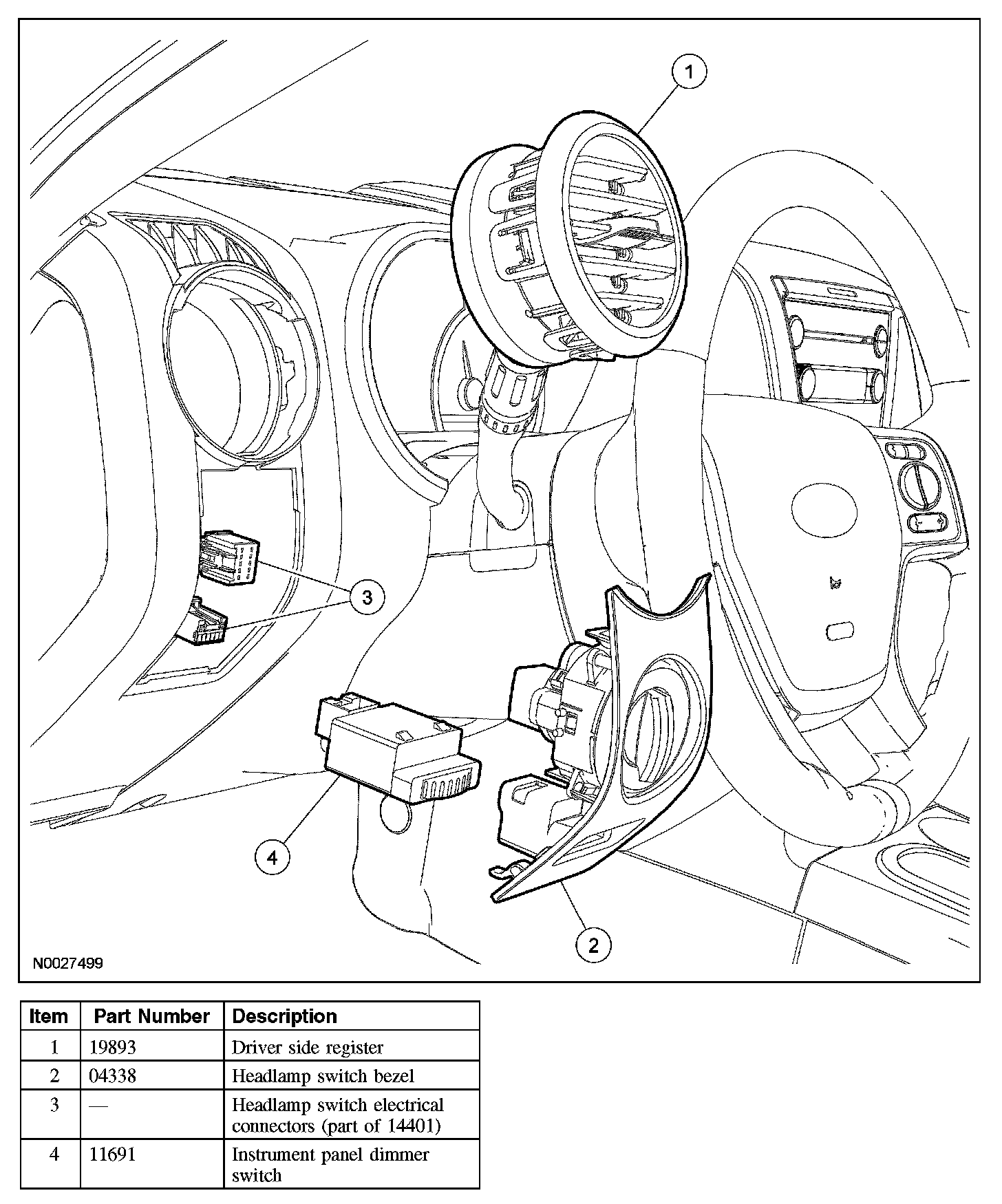

INSTRUMENT PANEL DIMMER SWITCH







1. Remove the driver side register.
2. Remove the headlamp switch and bezel as an assembly.
- Disconnect the electrical connectors.

3. Release the 2 tabs and remove the instrument panel dimmer switch.







4. To install, reverse the removal procedure.
