Crankshaft Rear Seal

Crankshaft Rear Seal

Flexplate or Flywheel and Crankshaft Rear Seal - Exploded View:

Removal
1. Remove the flexplate.
2. Remove the engine-to-transmission spacer plate.

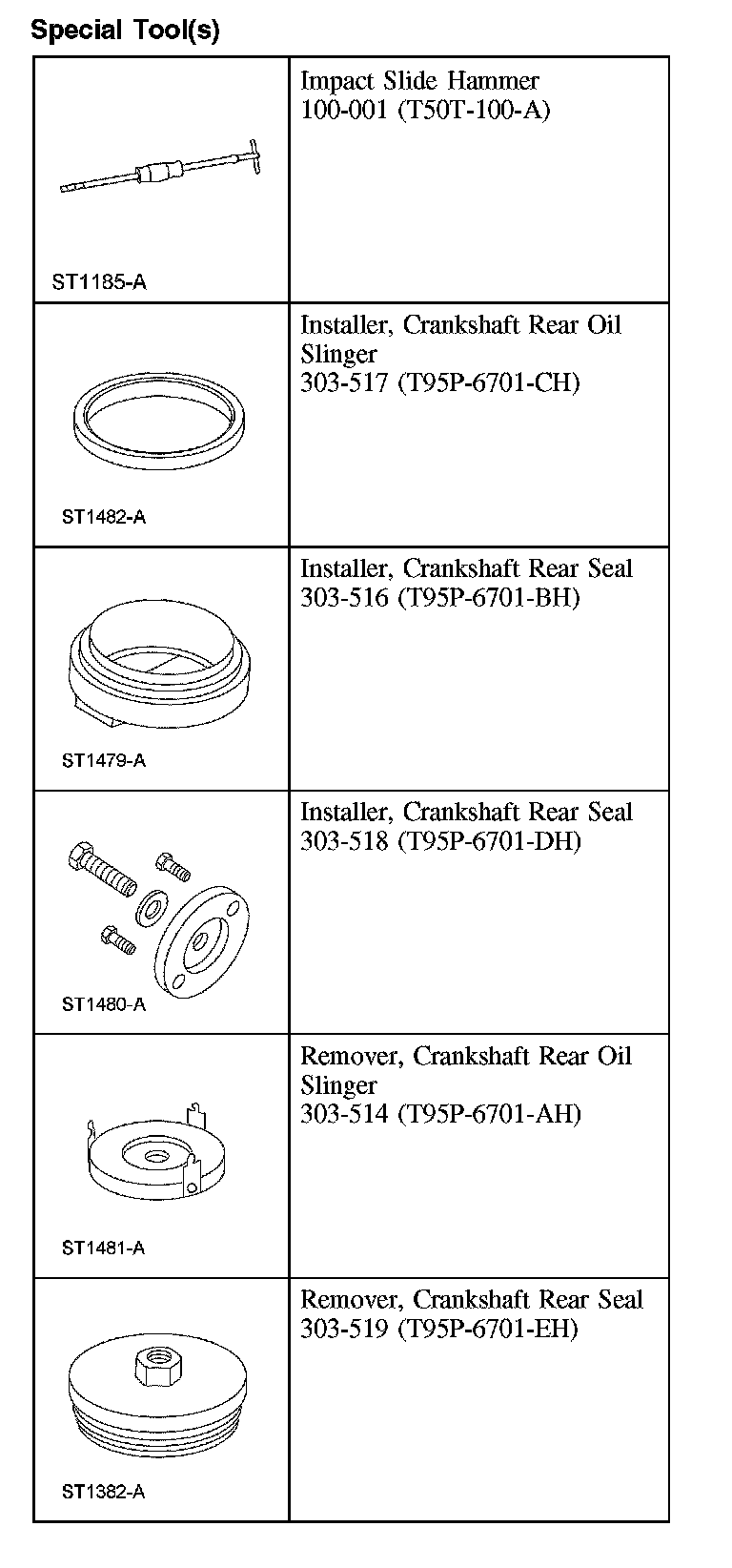

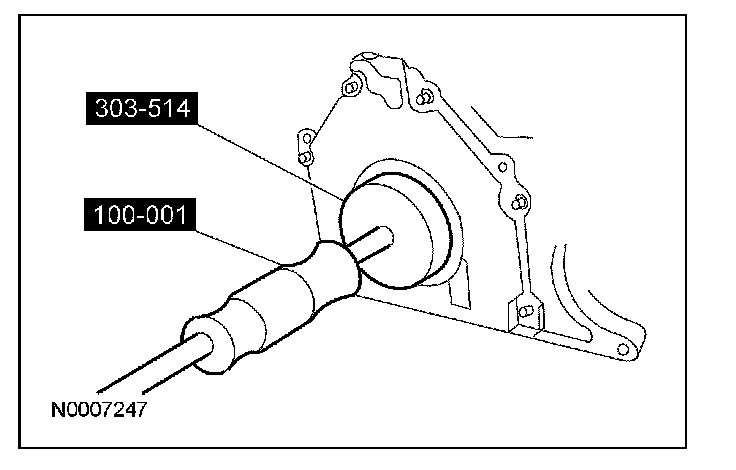

3. Using the special tools, remove the crankshaft oil slinger.
^ Discard the crankshaft oil slinger.

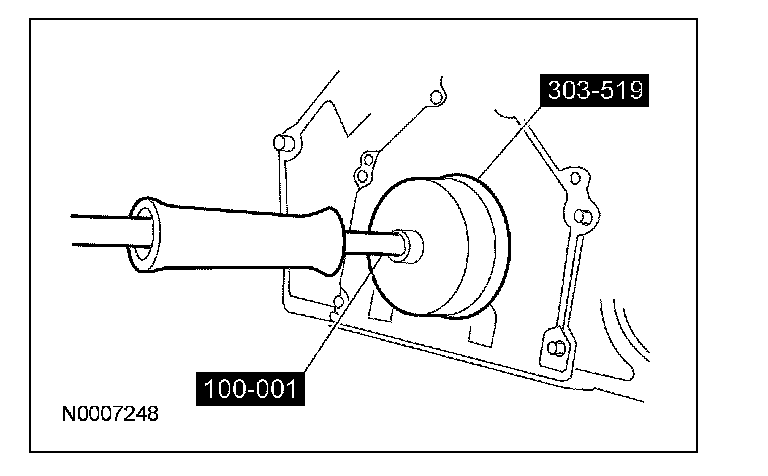

4. Using the special tools, remove the crankshaft rear seal.
^ Discard the crankshaft rear seal.





Installation

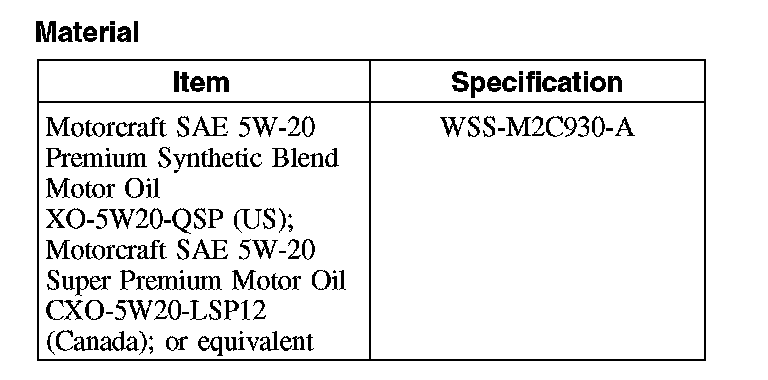

1. NOTE: Lubricate the inner lip of the crankshaft rear seal with clean engine oil.

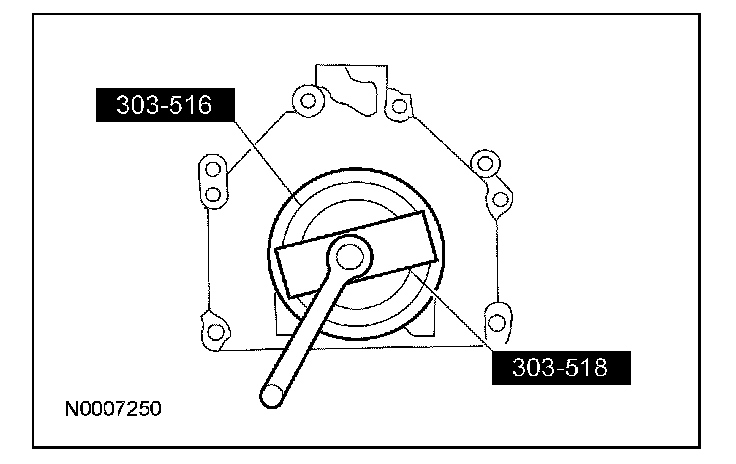

Using the special tools, install the crankshaft rear seal.

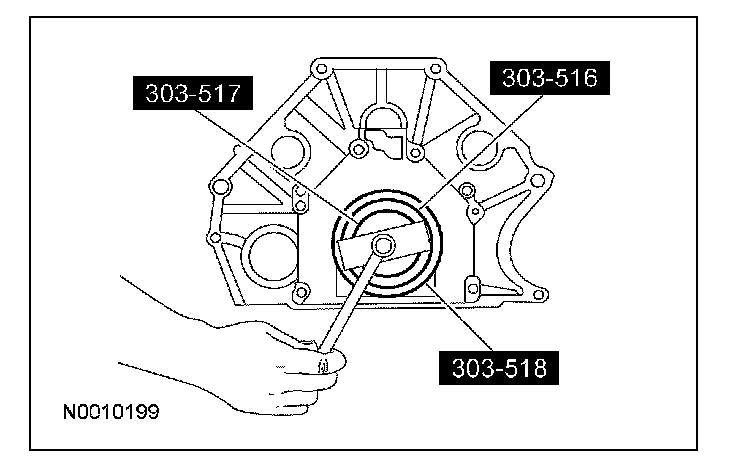

2. Using the special tools, install the crankshaft rear oil slinger.





3. Install the engine-to-transmission spacer plate.
4. Install the flexplate.
