Home >> Ford >> 2008 >> Explorer 2WD V8-4.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 131 (Parking Aid)

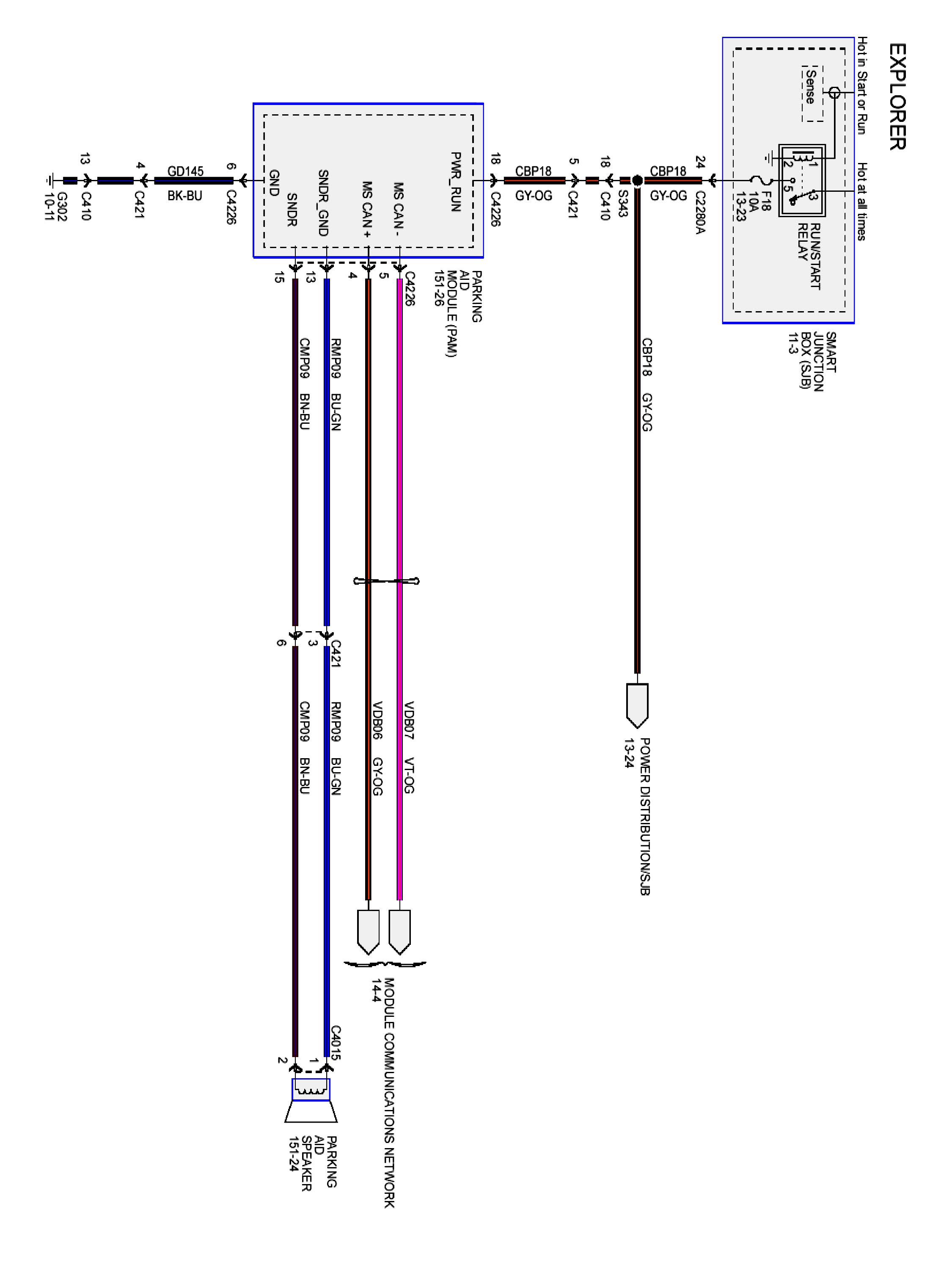

Diagram Set 131 (Parking Aid)

131-3:
