Home >> Ford >> 2008 >> Explorer 2WD V8-4.6L >> Repair and Diagnosis >> Brakes and Traction Control >> Sensors and Switches - Brakes and Traction Control >> Parking Brake Warning Switch >> Locations

Parking Brake Warning Switch: Locations

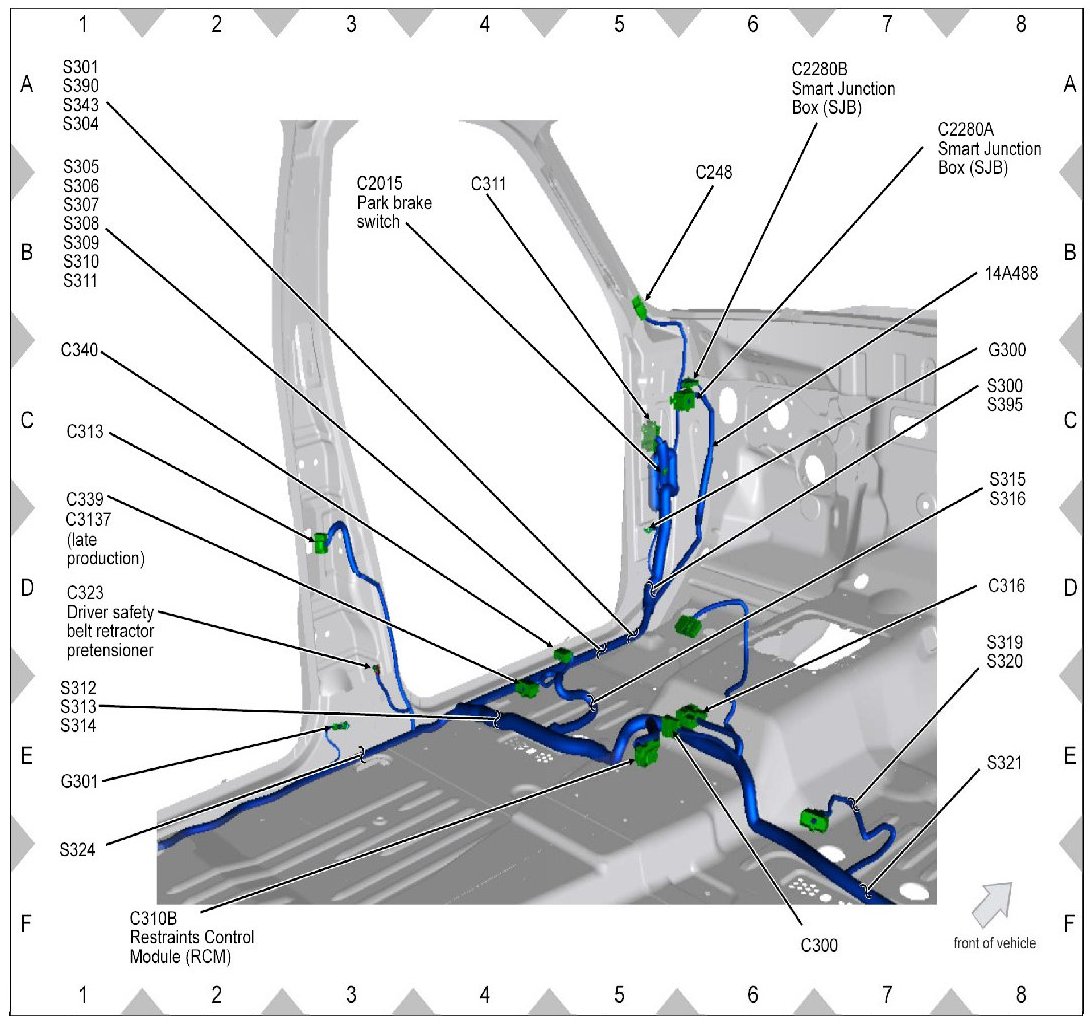

View 151-18:

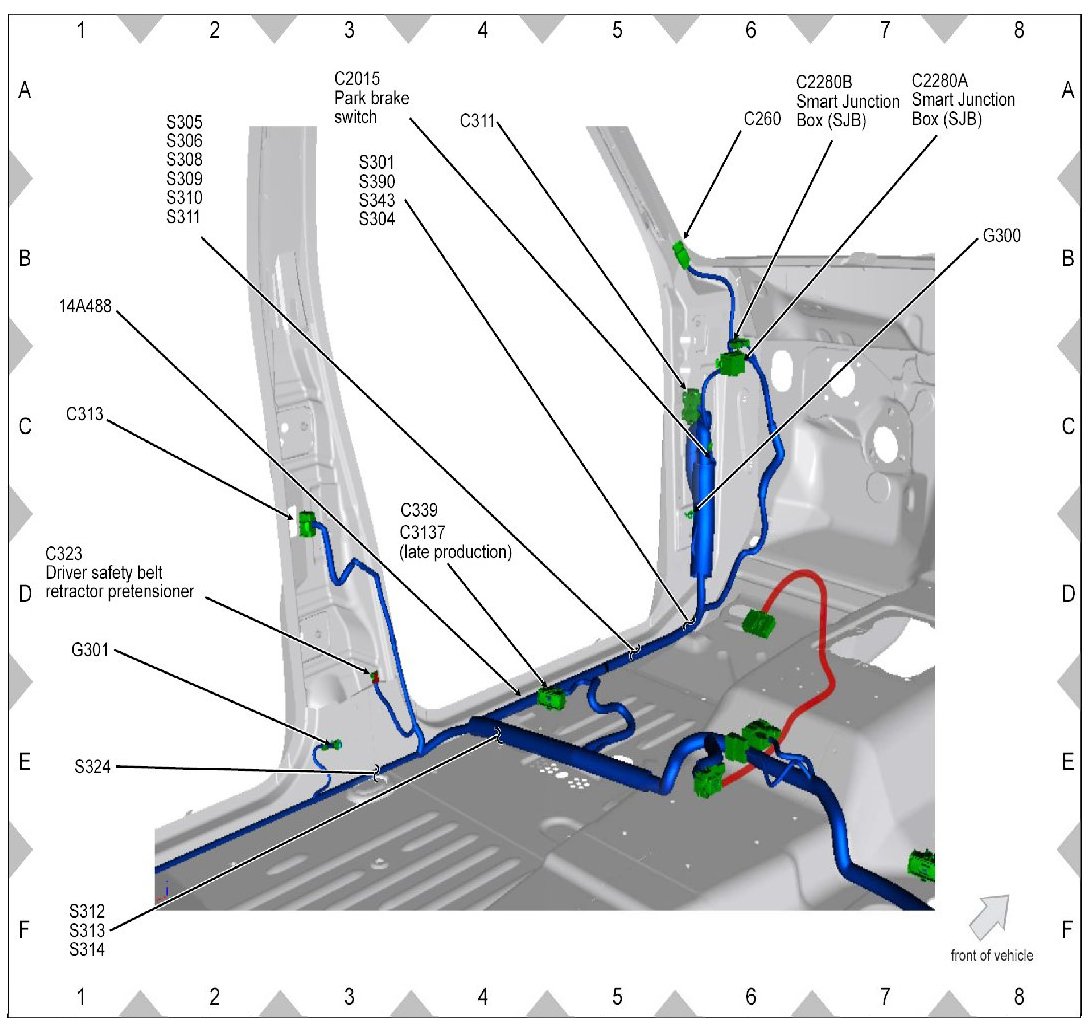

View 151-19:
