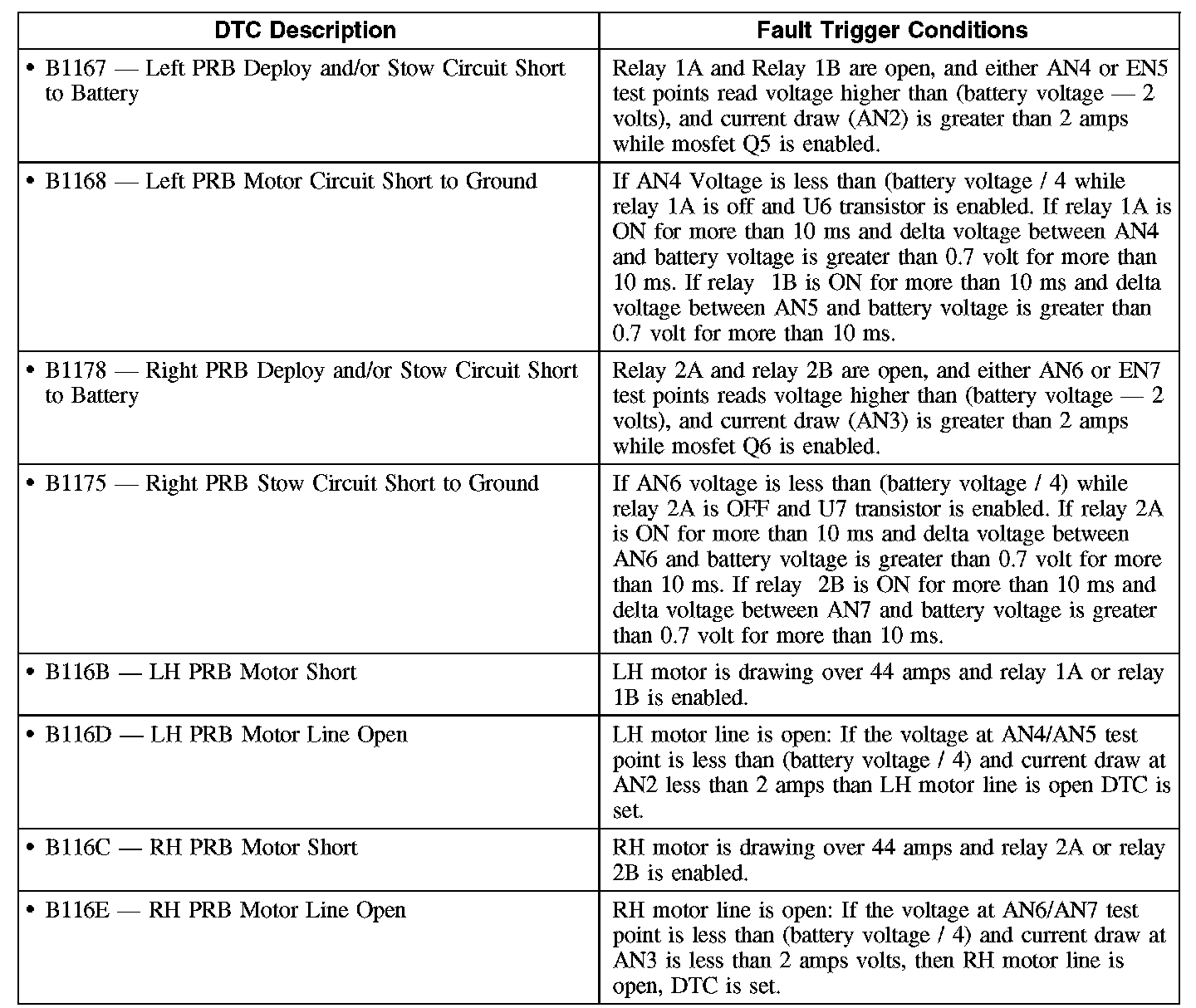

Test D: DTC B1167, B1168, B1178, B1175, B116B, B116D, B116C Or B116E - The Power Running Board (PRB) Does Not Operate Correctly

PINPOINT TEST D: DTC B1167, B1168, B1178, B1175, B116B, B116D, B116C OR B116E - THE POWER RUNNING BOARD (PRB) DOES NOT OPERATE CORRECTLY

Normal Operation
During power running board (PRB) deployment, the PRB module supplies power to the PRB motor through circuit CPR41 (BU/WH) (LH) or CPR44 (BN/WH) (RH) and ground through circuit CPR42 (WH) (LH) or CPR45 (VT/GY) (RH). The PRB module stows the PRB by supplying power to the PRB motor through circuit CPR42 (WH) (LH) or CPR45 (VT/GY) (RH) and ground through circuit CPR41 (BU/WH) (LH) or CPR44 (BN/WH) (RH). The PRB module provides a regulated 10 volt power supply to the Hall-effect sensor (internal to the PRB motor) through circuit CPR47 (GY/BN). The Hall-effect ground is provided by the PRB module through circuit RPR47 (BU/GN). The PRB module monitors the PRB Hall-effect signal through circuit VPR43 (GY/BU) (LH) or VPR46 (GY/OG) (RH). If the PRB module does not receive any signal from the Hall-effect sensor during operation, the PRB will stop.







This pinpoint test is intended to diagnose the following:
- Wiring, terminals or connectors
- LH or RH PRB motor assembly
- PRB module

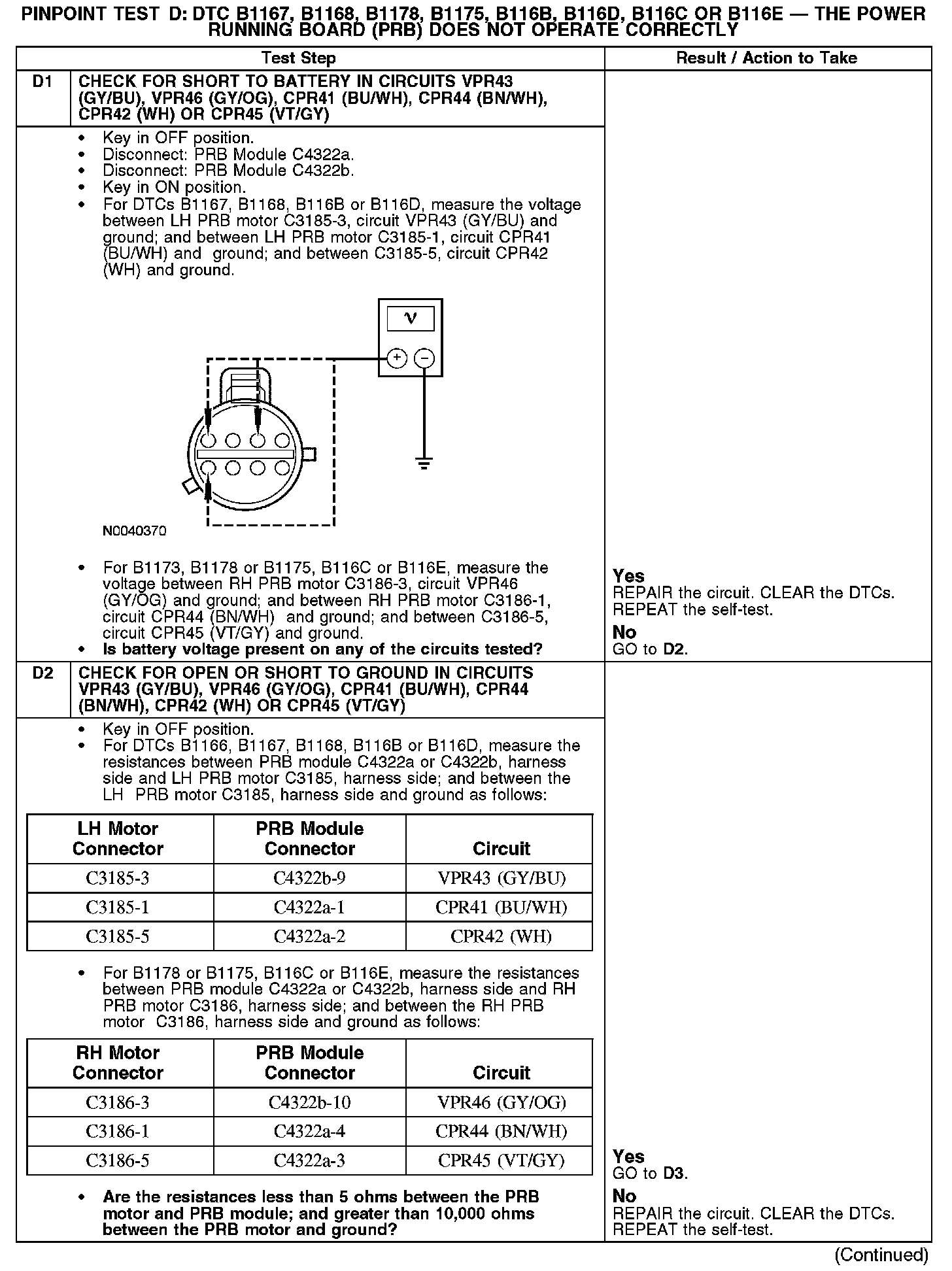

D1-D2:

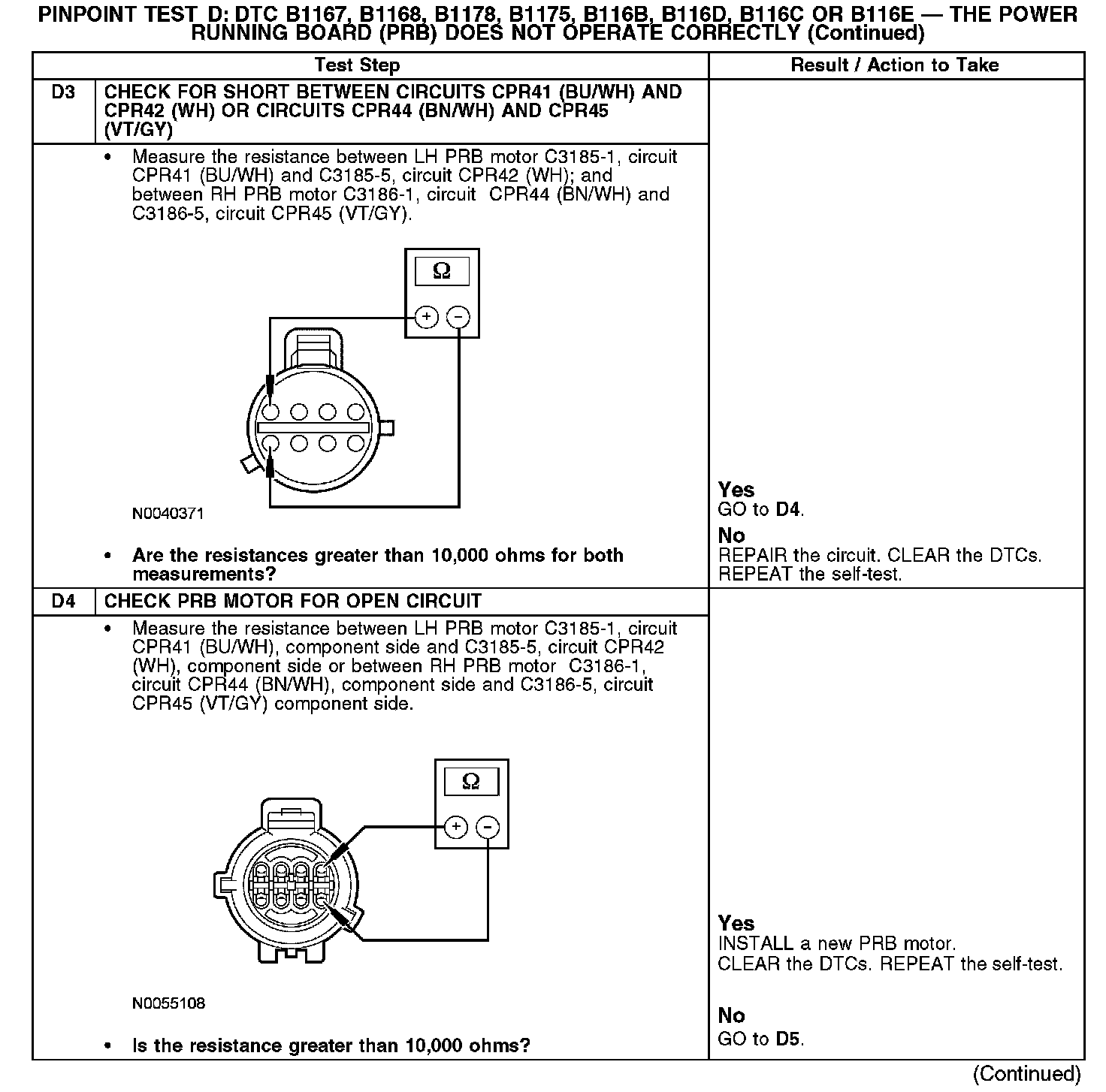

D3-D4:

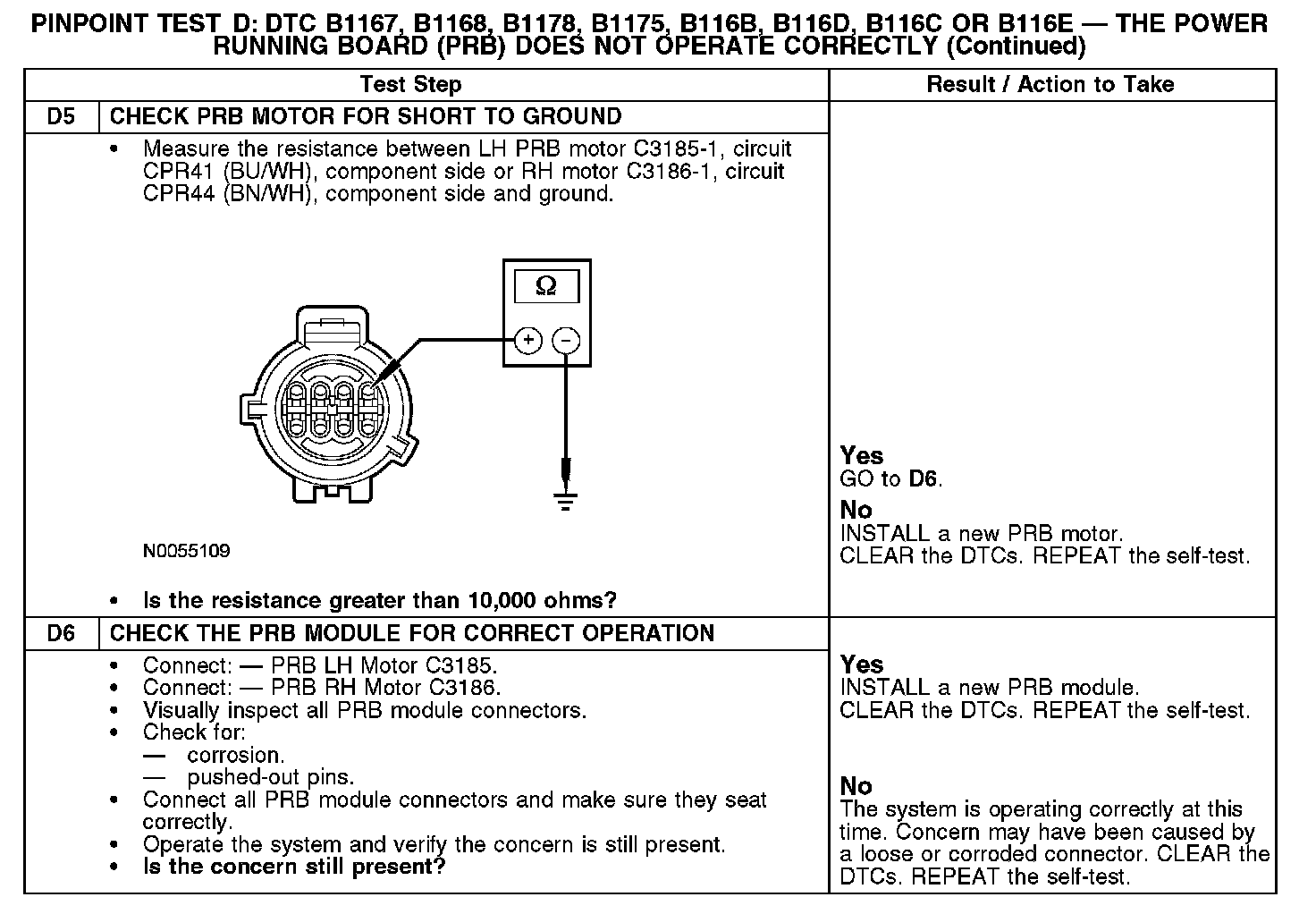

D5-D6:
