Power Steering Pump Pulley

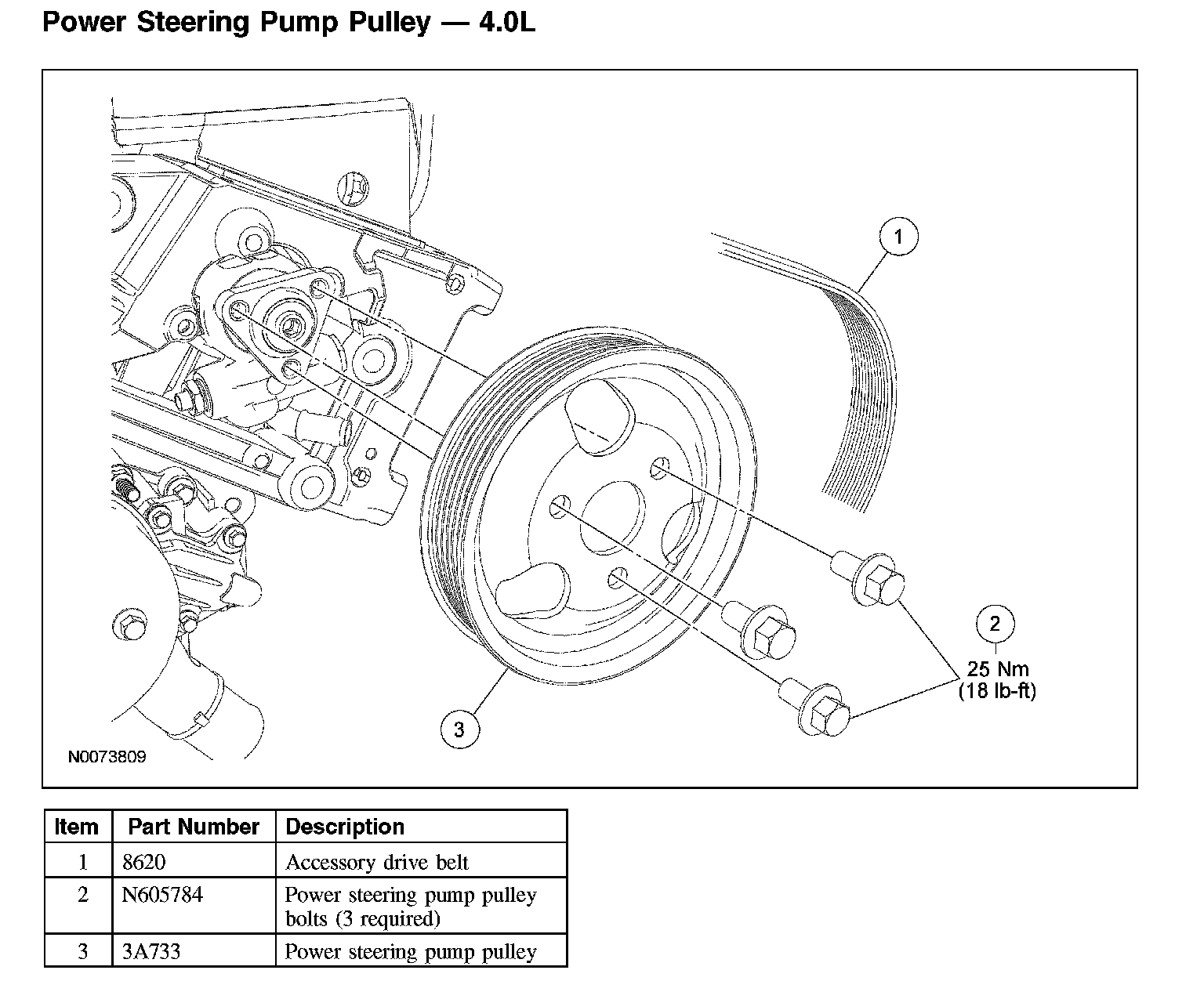

Power Steering Pump Pulley - 4.0LPower Steering Pump Pulley - 4.0L:
Removal and Installation
1. Disconnect the fan clutch electrical connector, remove the fan clutch wiring harness bracket bolt and position the harness aside.
^ To install, tighten to 7 Nm (62 lb-inch).
2. Loosen the 3 power steering pump pulley bolts.
3. Rotate the tensioner and remove the engine accessory drive belt from the power steering pump pulley.
4. Remove the 3 bolts and the power steering pump pulley.
^ To install, tighten to 25 Nm (18 lb-ft).
5. To install, reverse the removal procedure.
