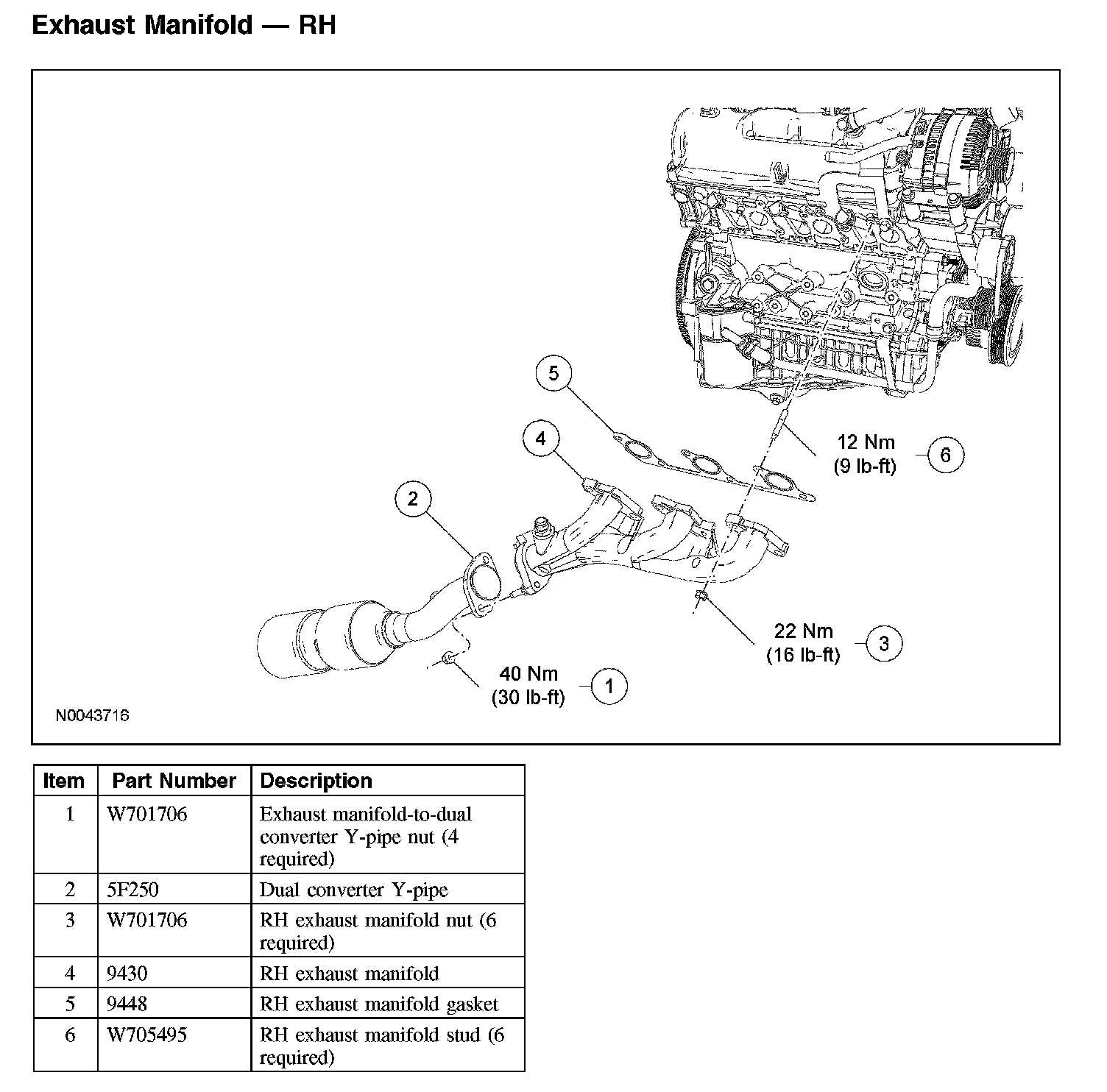

Exhaust Manifold - RH

Exhaust Manifold - RH





Removal
1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.
2. Remove the EGR tube. For additional information, refer to Emission Control Systems.
3. Remove the 4 exhaust manifold-to-dual converter Y-pipe nuts and position the dual converter Y-pipe aside.
4. Remove the 6 nuts, the RH exhaust manifold and the gasket.
^ Discard the nuts and the gasket.
5. Remove and discard the 6 RH exhaust manifold studs.

Installation
1. Inspect the RH exhaust manifold gasket surfaces for flatness.
2. Install 6 new RH exhaust manifold studs.
^ Tighten to 12 Nm (9 lb-ft).
3. Position a new gasket, the RH exhaust manifold and install 6 new nuts.
^ Tighten to 22 Nm (16 lb-ft).
4. Position the dual converter Y-pipe and install the 4 nuts.
^ Tighten to 40 Nm (30 lb-ft).
5. Install the EGR tube.
