Home >> Ford >> 2008 >> Explorer 2WD V6-4.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 86 (Fog Lamps)

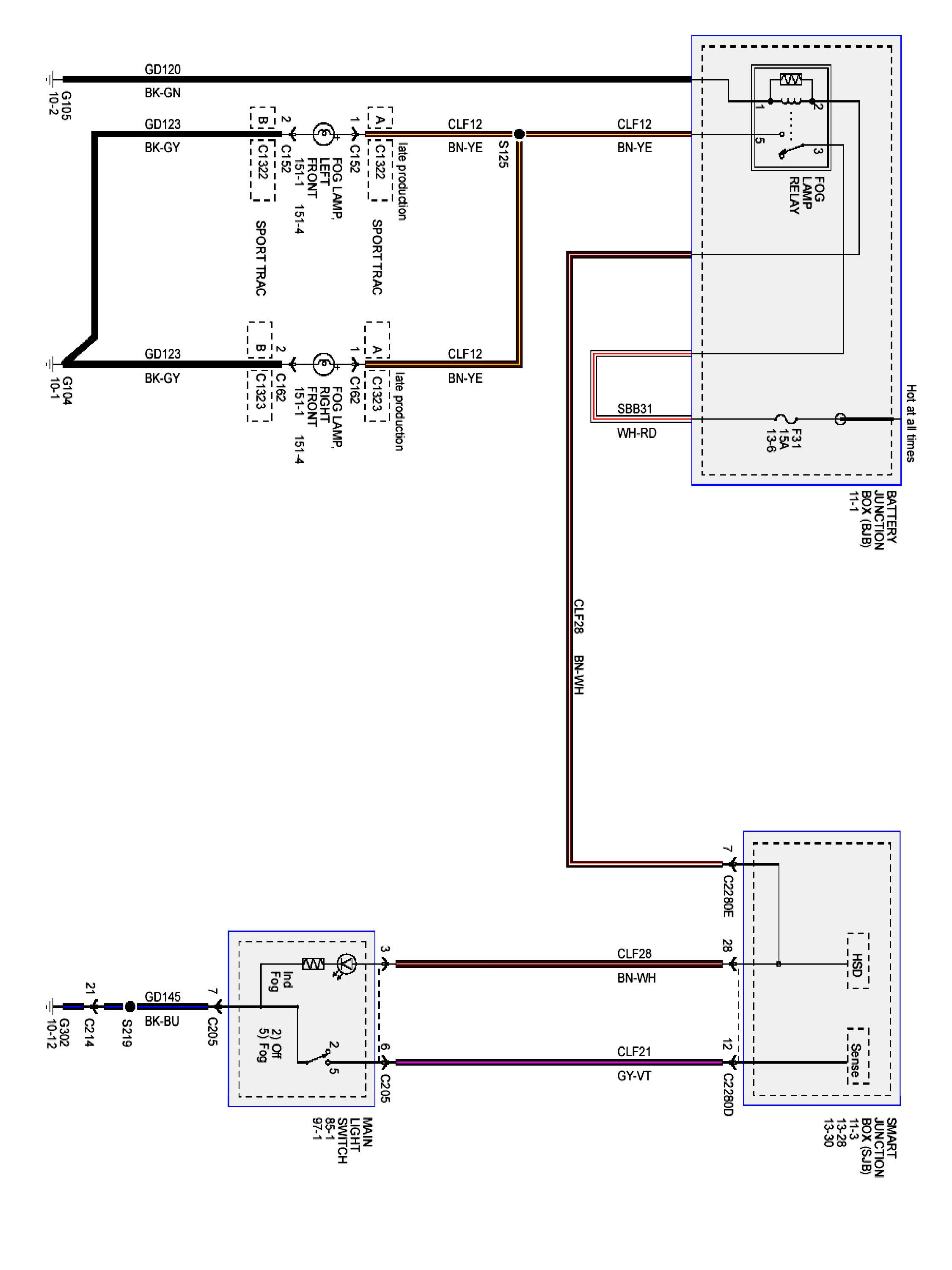

Diagram Set 86 (Fog Lamps)

86-1:
