Wheel Studs: Notes

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	C-Frame and Screw Assembly	211-023 (T74P-3044-A1)

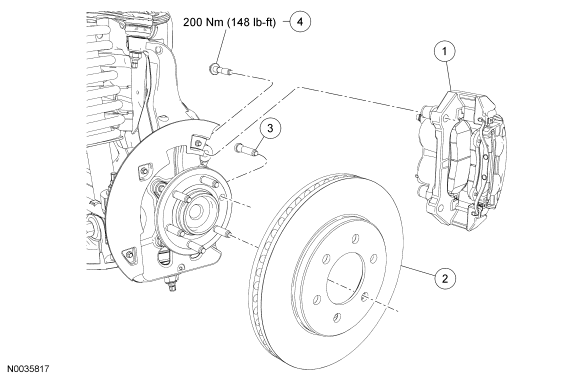

Fig 1: Exploded View Of Wheel Studs With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Brake caliper and anchor plate assembly
2	1125	Brake disc
3	W707287	Wheel stud
4	W707353	Brake caliper anchor plate bolt (2 required)
