Wheel Knuckle: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Separator, Ball Joint | 204-592 |

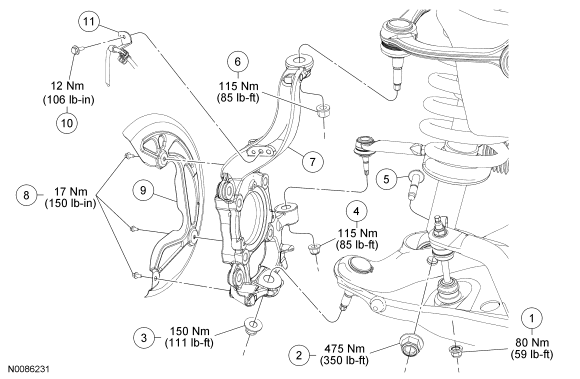

| Item | Part Number | Description |
|---|---|---|
| 1 | N807144 | Stabilizer bar link lower nut |
| 2 | W520217 | Shock absorber lower nut |
| 3 | W707254 | Lower ball joint nut |
| 4 | W520215 | Tie-rod end nut |
| 5 | W712682 | Shock absorber lower bolt |
| 6 | W520215 | Upper ball joint nut |
| 7 | 3K186 LH/ 3K185 RH | Wheel knuckle |
| 8 | W505211 | Brake disc shield bolts (3 required) |
| 9 | 2K005 LH/ 2K004 RH | Brake disc shield |
| 10 | - | Wheel speed sensor harness bracket bolt |
| 11 | - | Wheel speed sensor harness bracket (part of 2C204) |
