Wheel Bearing and Wheel Hub: Notes

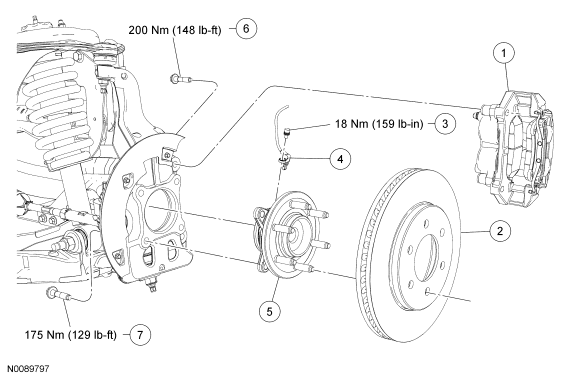

Fig 1: Exploded View Of Wheel Bearing & Wheel Hub With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	2B121 LH/ 2B120 RH	Brake caliper and anchor plate assembly
2	1125	Brake disc
3	W710279	Wheel speed sensor bolt
4	2C204	Wheel speed sensor
5	2B663	Wheel bearing and wheel hub
6	W707292	Brake caliper anchor plate bolt (2 required)
7	W707353	Wheel bearing and wheel hub bolt (4 required)
