Upper Arm: Notes

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Separator, Ball Joint	204-592

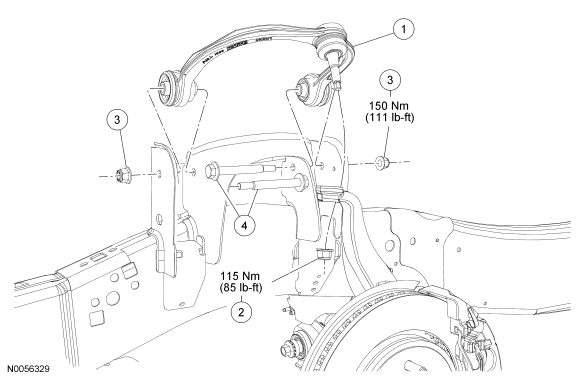

Fig 1: Exploded View Of Upper Arm With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3091 LH/ 3084 RH	Upper arm
2	W520215	Upper ball joint nut
3	W520215	Upper arm-to-frame nuts (2 required)
4	W707841	Upper arm-to-frame bolts (2 required)
