Shock Absorber and Spring Assembly: Notes

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Separator, Ball Joint	204-592

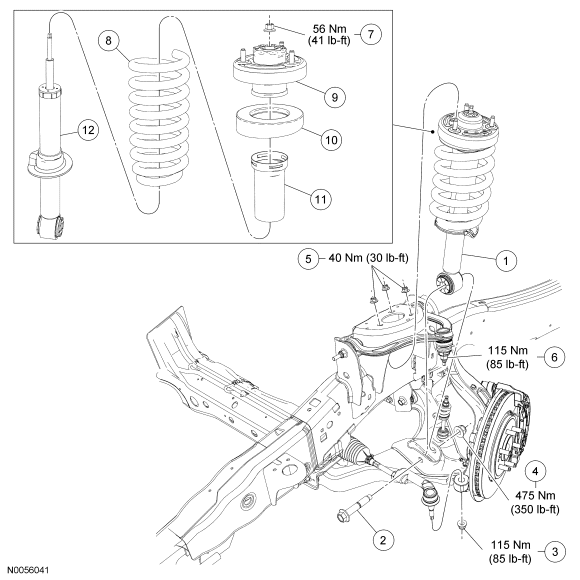

Fig 1: Exploded View Of Shock Absorber & Spring Assembly With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	18B036	Shock absorber and spring assembly
2	W712682	Shock absorber lower bolt
3	W707251	Tie-rod end nut
4	W520217	Shock absorber lower nut
5	W712334	Shock absorber upper mount nuts (3 required)
6	W520215	Upper ball joint nut
7	W712134	Shock rod nut
8	5310	Spring
9	18A099	Upper mount
10	18A154	Insulator
11	18A047	Dust boot
12	18045	Shock absorber
