Lower Arm: Notes

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Separator, Ball Joint	204-592

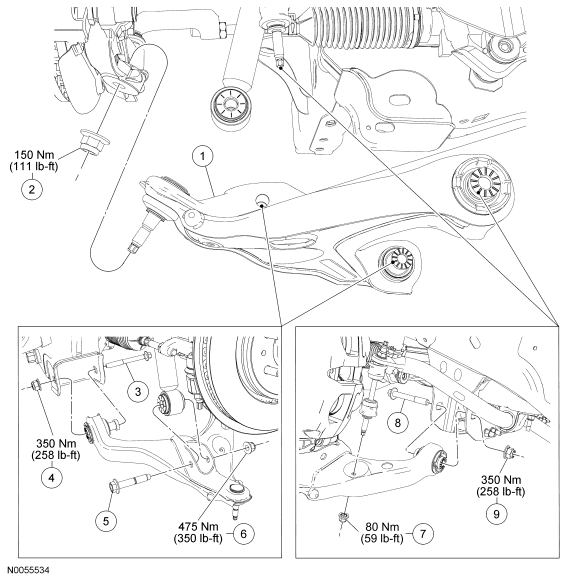

Fig 1: Exploded View Of Lower Arm With Torque Specifications

GF0022151

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3051 LH/ 3042 RH	Lower arm
2	W707254	Lower ball joint nut
3	W711399	Lower arm forward bolt
4	W711310	Lower arm forward nut
5	W712682	Shock absorber lower bolt
6	W520217	Shock absorber lower nut
7	N807144	Stabilizer bar link lower nut
8	W709877	Lower arm rearward bolt
9	W711310	Lower arm rearward nut
