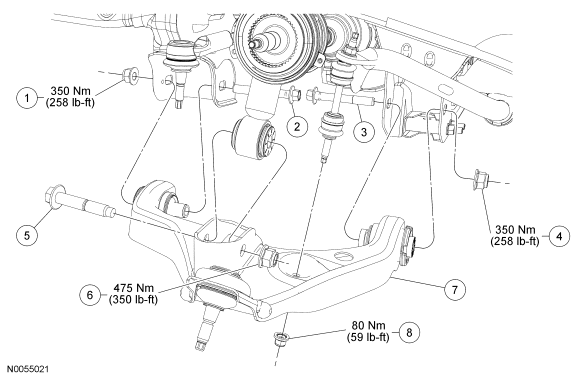

Lower Arm: Notes
| Item | Part Number | Description |
|---|---|---|
| 1 | W707254 | Lower arm forward nut |
| 2 | W707843 | Lower arm forward bolt |
| 3 | W707202 | Lower arm rearward bolt |
| 4 | W707254 | Lower arm rearward nut |
| 5 | W712682 | Shock absorber lower bolt |
| 6 | W520217 | Shock absorber lower nut |
| 7 | 3051 LH/ 3042 RH | Lower arm |
| 8 | N807144 | Stabilizer bar link lower nut |
