Transfer Case Rear Output Shaft Seal: Notes
WARNING: This page is about a different variant/trim than selected.
Special Tools
| Illustration |
Tool Name |
Tool Number |
 Courtesy of FORD MOTOR CO.
|
Installer, Input Shaft Oil Seal |
308-249 (T96T-7127-A) |

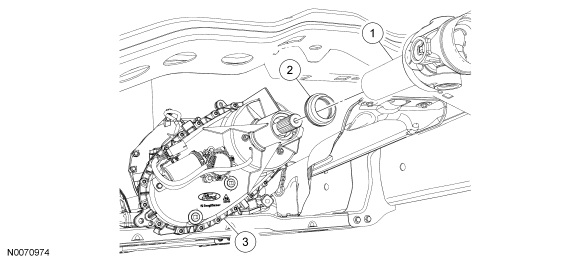

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
4602 |
Driveshaft |
| 2 |
7B215 |
Rear output shaft seal |
| 3 |
7A195 |
Transfer case |
