Transfer Case Shift Motor: Notes
WARNING: This page is about a different variant/trim than selected.
Material
| Item | Specification |
|---|---|
| RTV Silicone Sealant TA-31 |
- |

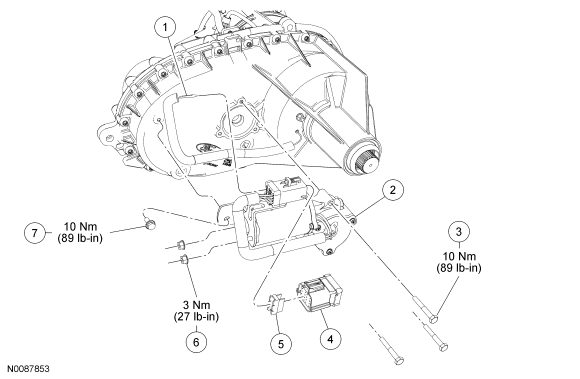

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Coil wire (part of 7G361) |
| 2 | 7G360 | Transfer case shift motor |
| 3 | N800670-S | Bolt (3 required) |
| 4 | 15525 | Connector |
| 5 | - | Connector inner retainer (part of 15525) |
| 6 | - | Nut (2 required) (part of 7G360) |
| 7 | 7A443 | Bolt |
