Output Shaft Seal: Notes

WARNING: This page is about a different car, the 2008 Lincoln Navigator L and 2008 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	Installer, Transmission Extension Housing Fluid Seal	307-560
Courtesy of FORD MOTOR CO.	Installer, Fluid Pump Seal	307-556
Courtesy of FORD MOTOR CO.	Remover, Input Shaft Oil Seal	308-375
Courtesy of FORD MOTOR CO.	Slide Hammer	100-001 (T50T-100-A)
Courtesy of FORD MOTOR CO.	Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

Material

Item	Specification
MERCON® SP Automatic Transmission Fluid XT-6-QSP (US); CXT-6-LSP12 (Canada)	MERCON® SP

NOTE: Rear wheel drive (RWD) shown, four wheel drive (4WD) similar.

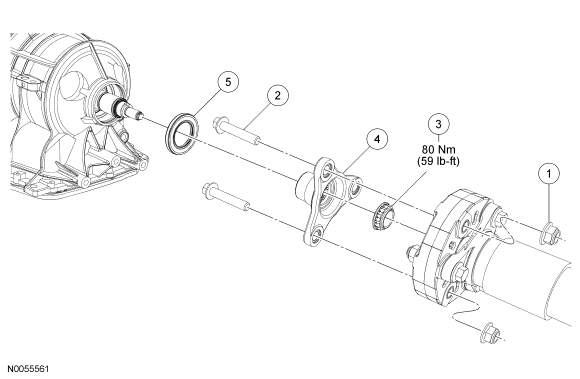

Fig 1: Exploded View Of Output Shaft Seal With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Rear driveshaft nuts (3 required)
2	-	Rear driveshaft bolts (3 required)
3	7K440	Output shaft flange nut
4	7A021	Output shaft flange
5	7052	Output shaft seal
