Instrument Panel Finish Panel - Center, Expedition

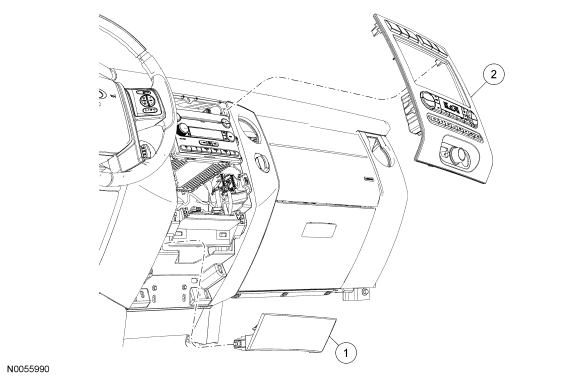

Fig 1: Exploded View Of Instrument Panel Center Finish Panel - Expedition

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Lower instrument panel center finish panel
2	04302	Upper instrument panel center finish panel

1. Remove the lower instrument panel center finish panel.
2. Remove the upper instrument panel center finish panel.
   • Disconnect the electrical connectors.
3. To install, reverse the removal procedure.
   • Transfer parts as needed.
