Instrument Cluster Finish Panel - Navigator

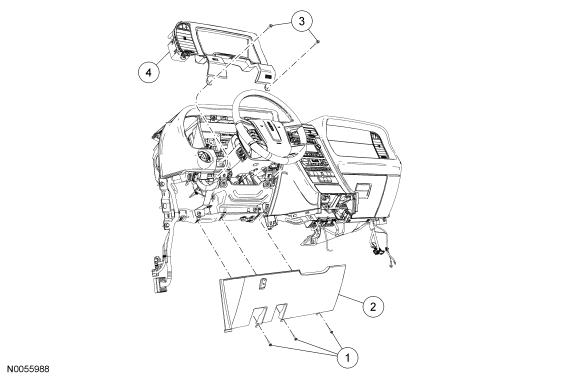

Fig 1: Exploded View Of Instrument Cluster Finish Panel - Navigator

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W707628	Steering column opening cover screws (3 required)
2	04459	Steering column opening cover
3	W707628	Instrument cluster finish panel screws (2 required)
4	04320	Instrument cluster finish panel

1. Remove the steering column multi-function switch, refer to STEERING COLUMN SWITCHES article.
2. Remove the 2 instrument cluster finish panel screws.
NOTE: There are 2 locking tabs on the outboard register that need to be depressed before the cluster finish panel is removed.
NOTE: Cluster finish panel removed for clarity.
3. Depress the 2 locking tabs and remove the cluster finish panel.
   • Access the tabs from under the instrument panel.
   • Disconnect the electrical connectors.

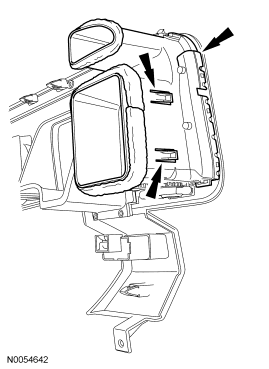

Fig 2: Cluster Finish Panel Locking Tabs
Courtesy of FORD MOTOR CO.
4. To install, reverse the removal procedure.
