Instrument Cluster Finish Panel - Expedition

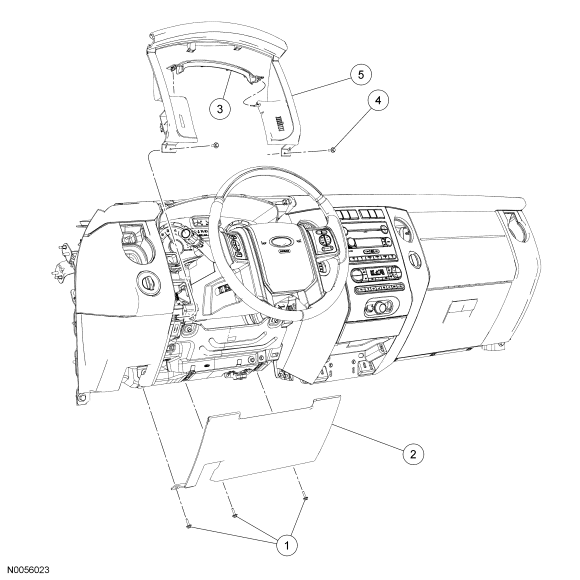

| Item | Part Number | Description |
|---|---|---|
| 1 | W707628 | Steering column opening cover screws (3 required) |
| 2 | 04459 | Steering column opening cover |
| 3 | - | Instrument cluster finish panel bridge |
| 4 | W707628 | Instrument cluster finish panel screw (2 required) |
| 5 | 04320 | Instrument cluster finish panel |
Column shift vehicles only
- Place the column shift lever to the 1 position.
- Remove the steering column opening cover.
- Remove the 3 steering column opening cover screws.
- Release the steering column opening cover from the instrument panel.
- Tilt the steering wheel to the full down position.
- Remove the instrument cluster finish panel bridge.
- Pull upward and then left on the LH side of the finish panel bridge to release the retainer and remove the finish panel bridge.
- Remove the 2 instrument cluster finish panel screws.
- Remove the instrument cluster finish panel.
- Pull on the finish panel to release it from the retainers.
- Disconnect the electrical connectors.
- To install, reverse the removal procedure.
All vehicles
