Liftgate Release Switch - Power

LIFTGATE RELEASE SWITCH - POWER

Exploded View

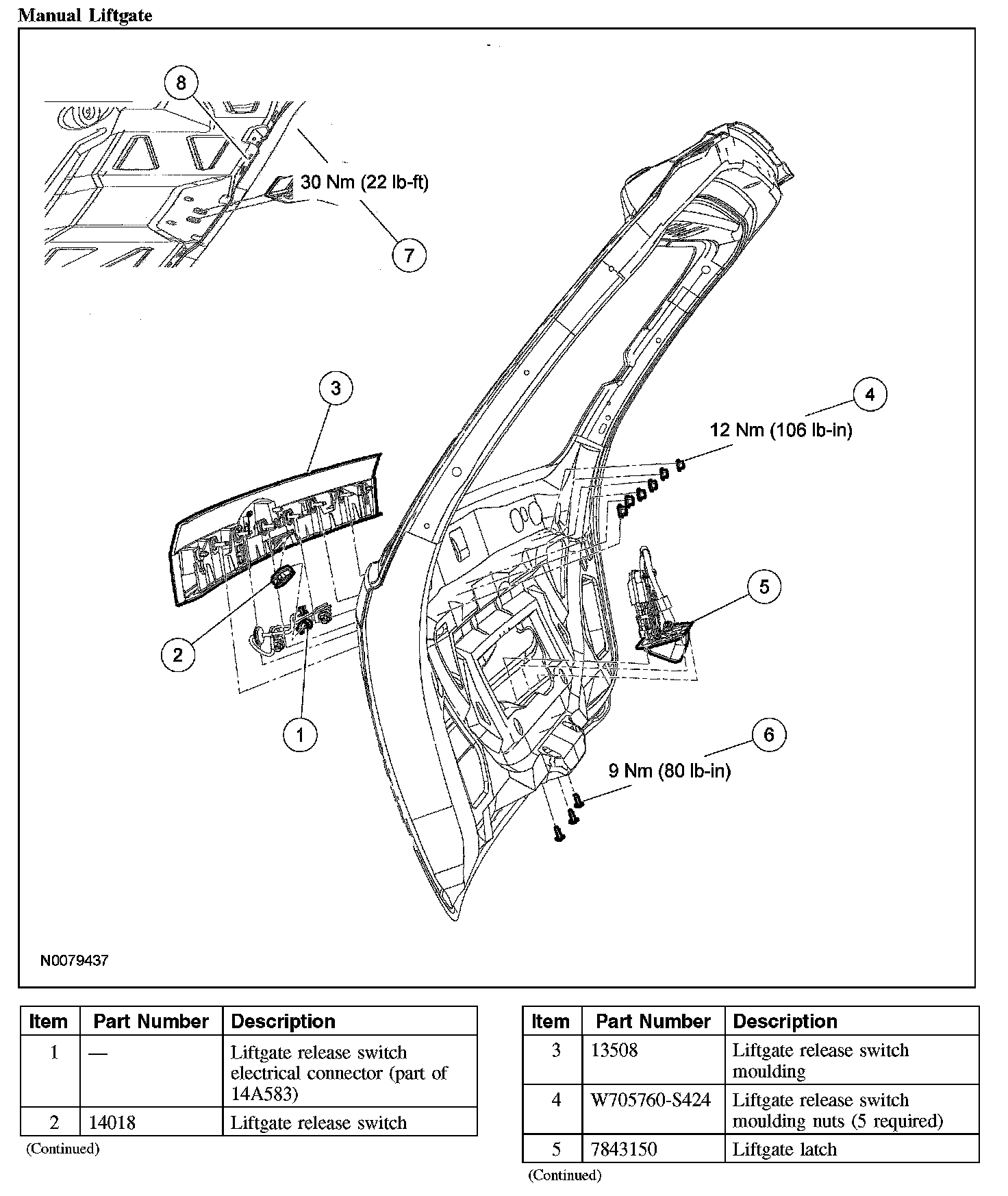

Manual Liftgate (Part 1):

Manual Liftgate (Part 2):

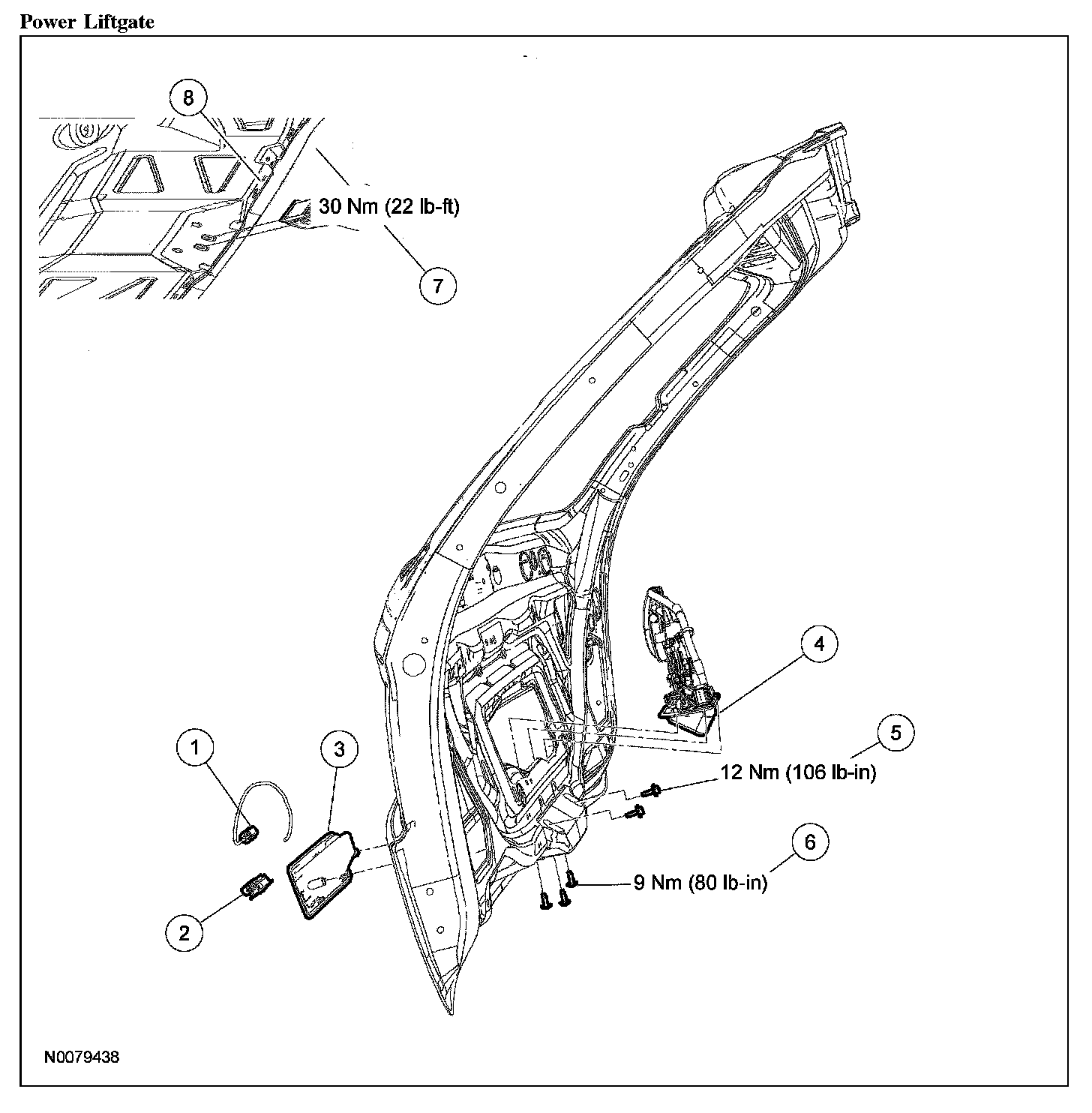

Power Liftgate (Part 1):

Power Liftgate (Part 2):

Removal and Installation
1. Remove the liftgate trim panel.
2. Disconnect the liftgate release switch electrical connector.
3. Remove the 2 liftgate release switch moulding bolts.
- To install, tighten to 12 Nm (106 lb-in).

4. Depress the tabs and remove the liftgate release switch.
5. To install, reverse the removal procedure.
