A-Pillar Trim Panel

A-PILLAR TRIM PANEL

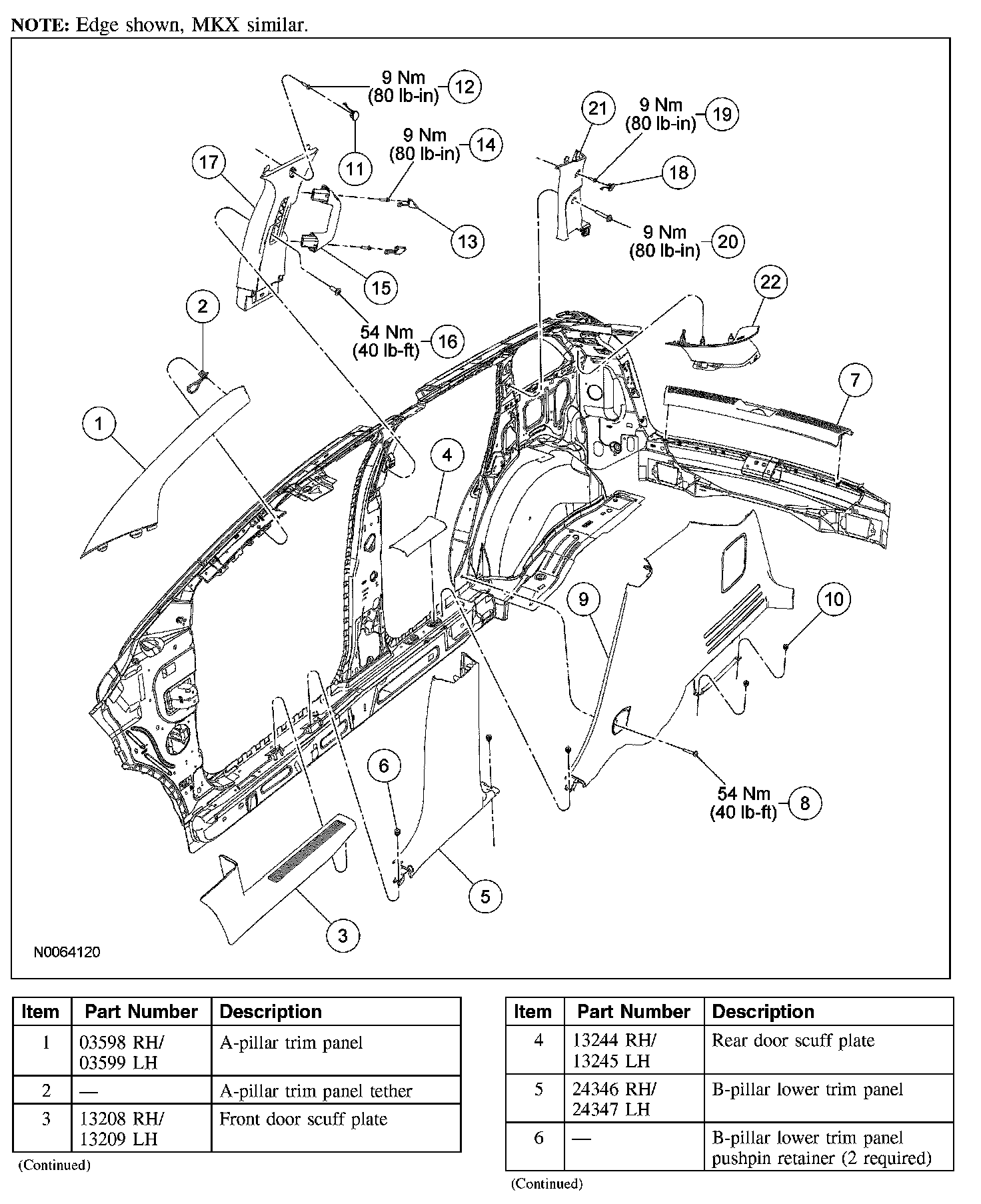

Exploded View

Part 1:

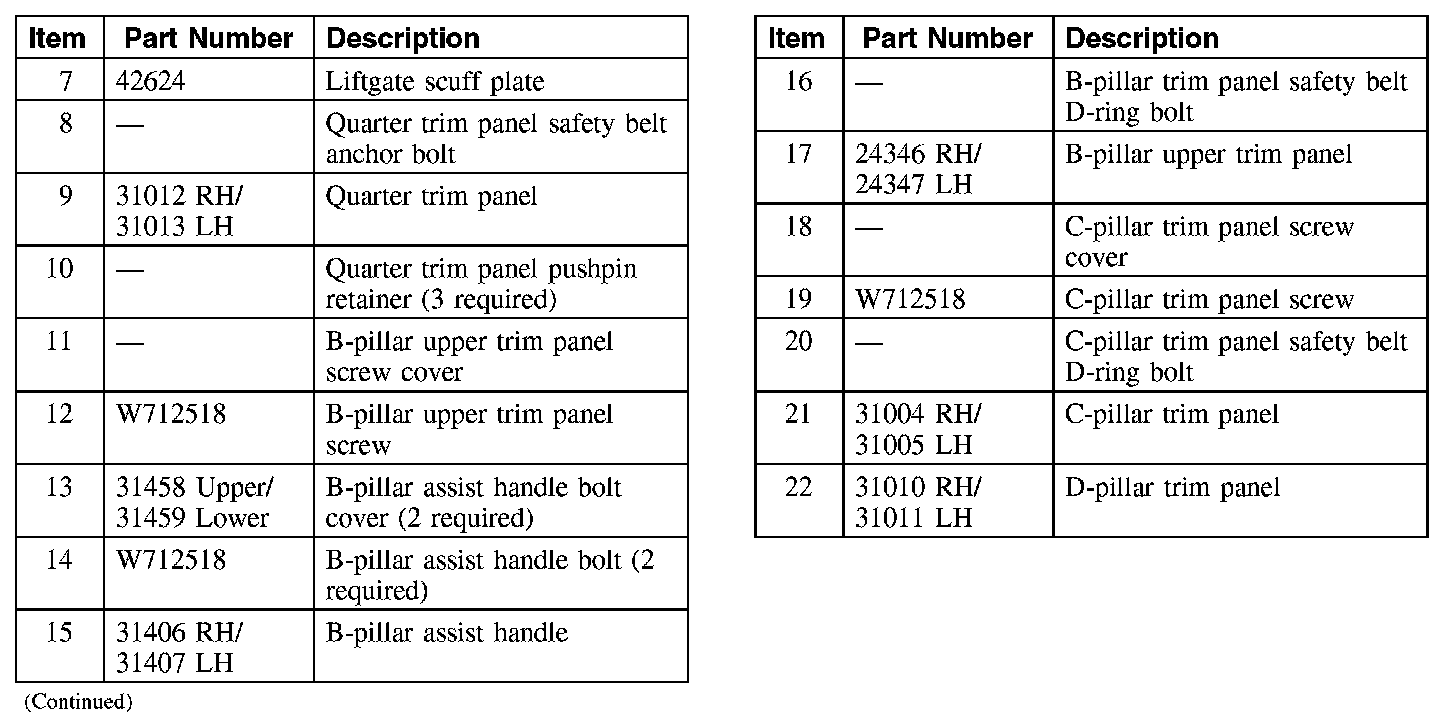

Part 2:

Removal and Installation

NOTE: The A-pillar trim panel is held in place by a clip that is snapped to the back of the panel. A new clip must be installed when installing the existing trim panel.

1. NOTE: The A-pillar trim panel is held in place by a tether that is snapped to the back of the panel.

Remove the A-pillar trim panel and disconnect the tether.







2. To install, reverse the removal procedure.
