Sunroof / Moonroof Switch: Service and Repair

ROOF OPENING PANEL CONTROL SWITCH

Exploded View

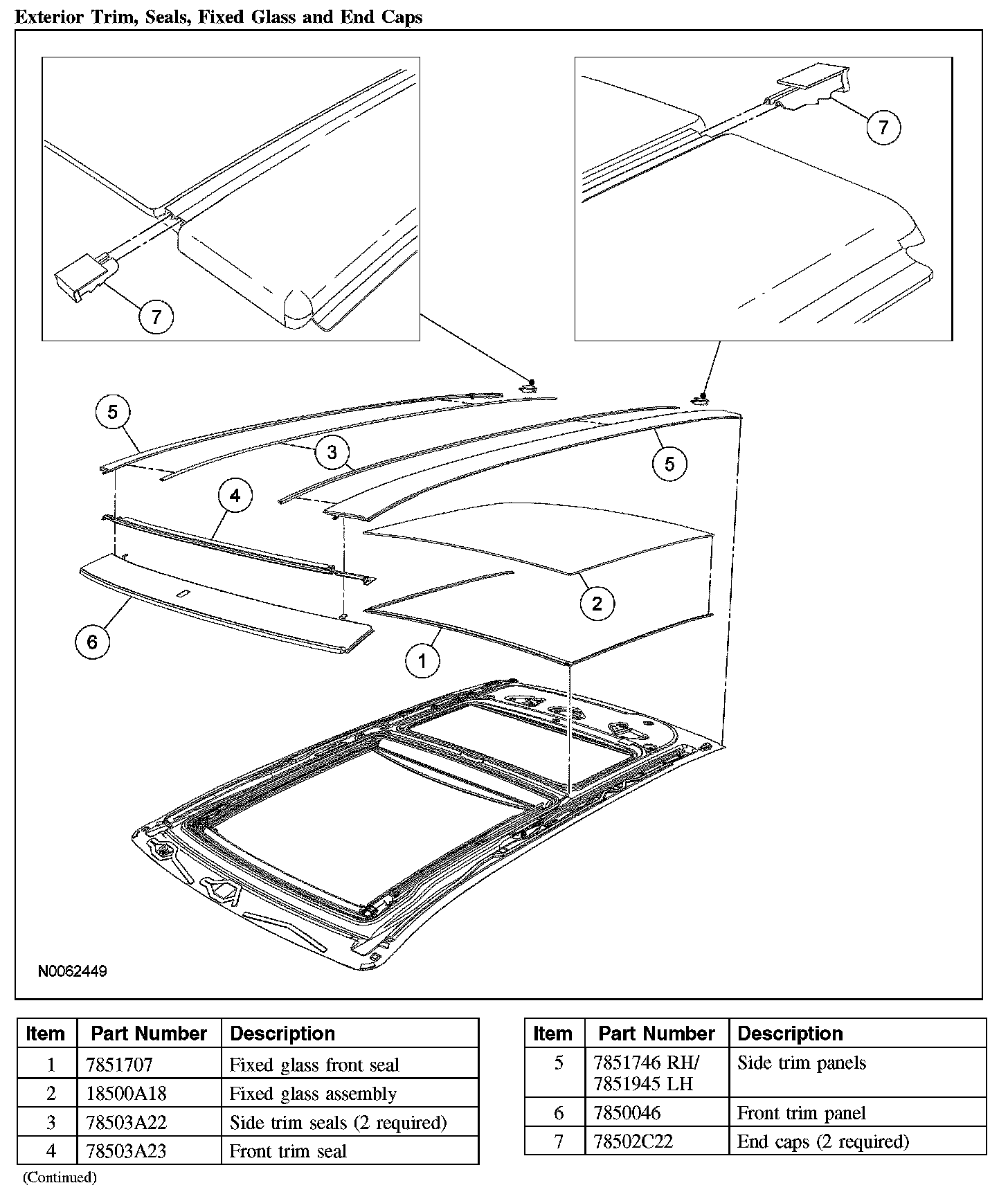

Exterior Trim, Seals, Fixed Glass and End Caps:

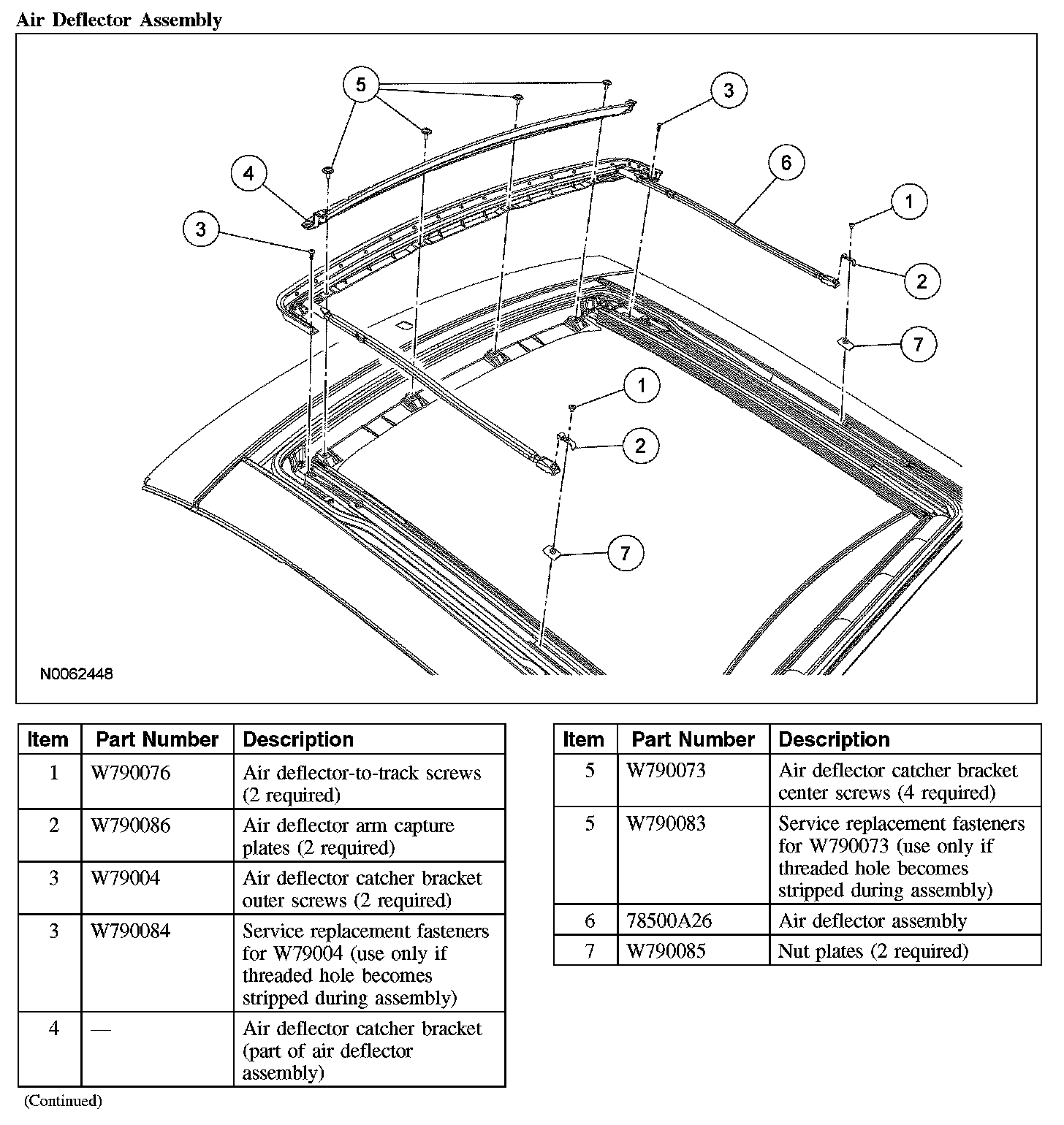

Air Deflector Assembly:

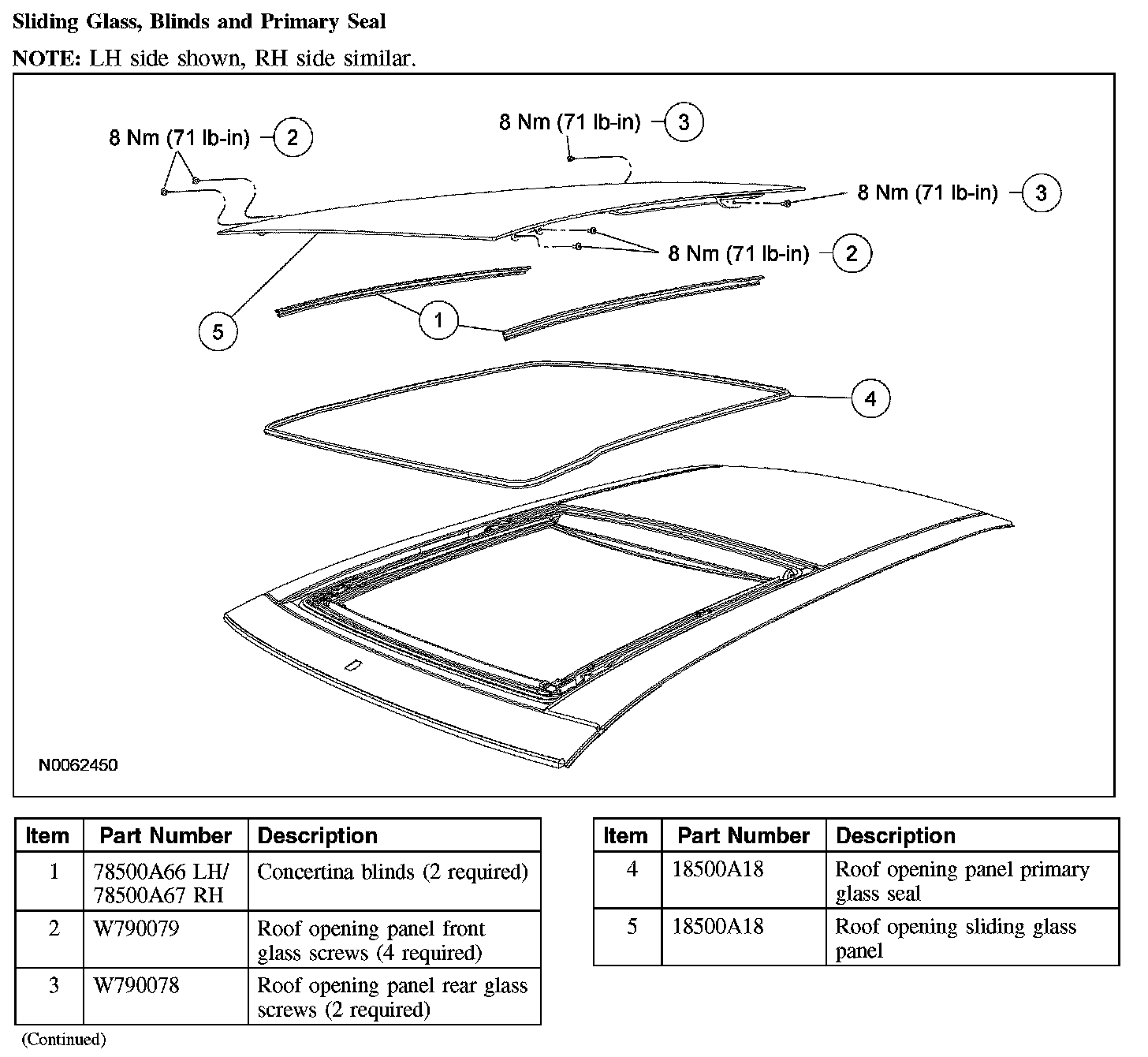

Sliding Glass, Blinds and Primary Seal:

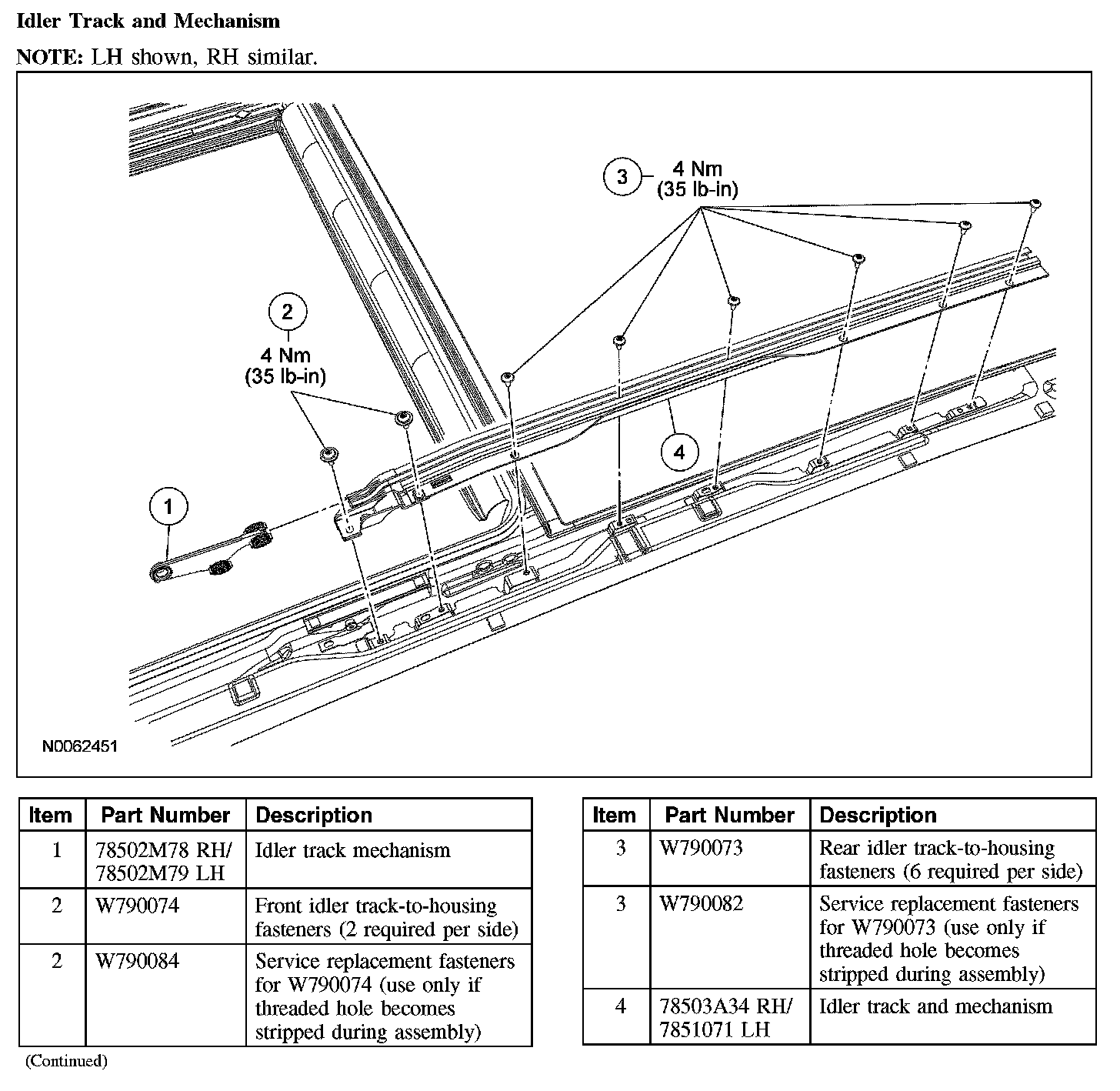

Idler Track and Mechanism:

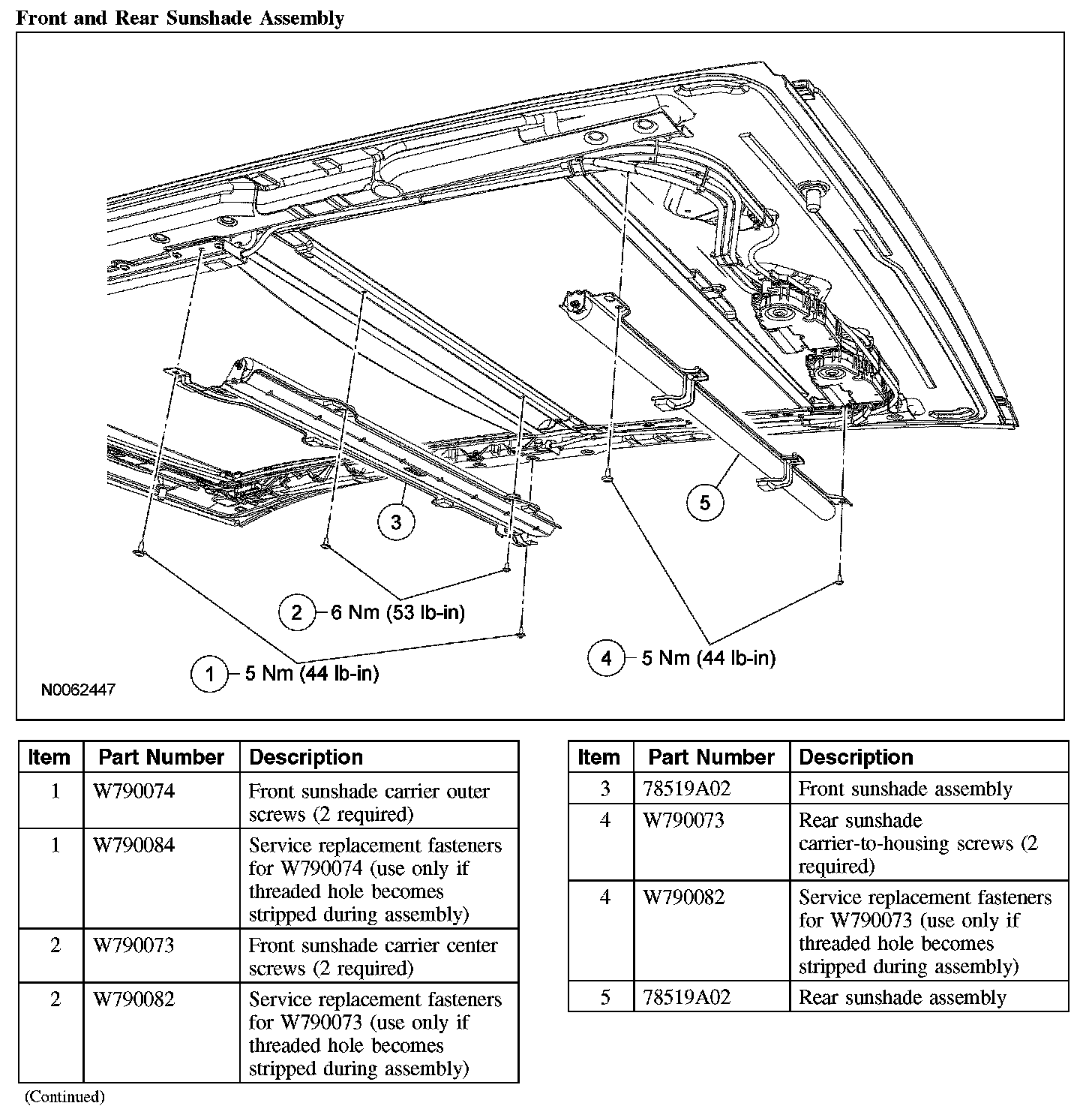

Front and Rear Sunshade Assembly:

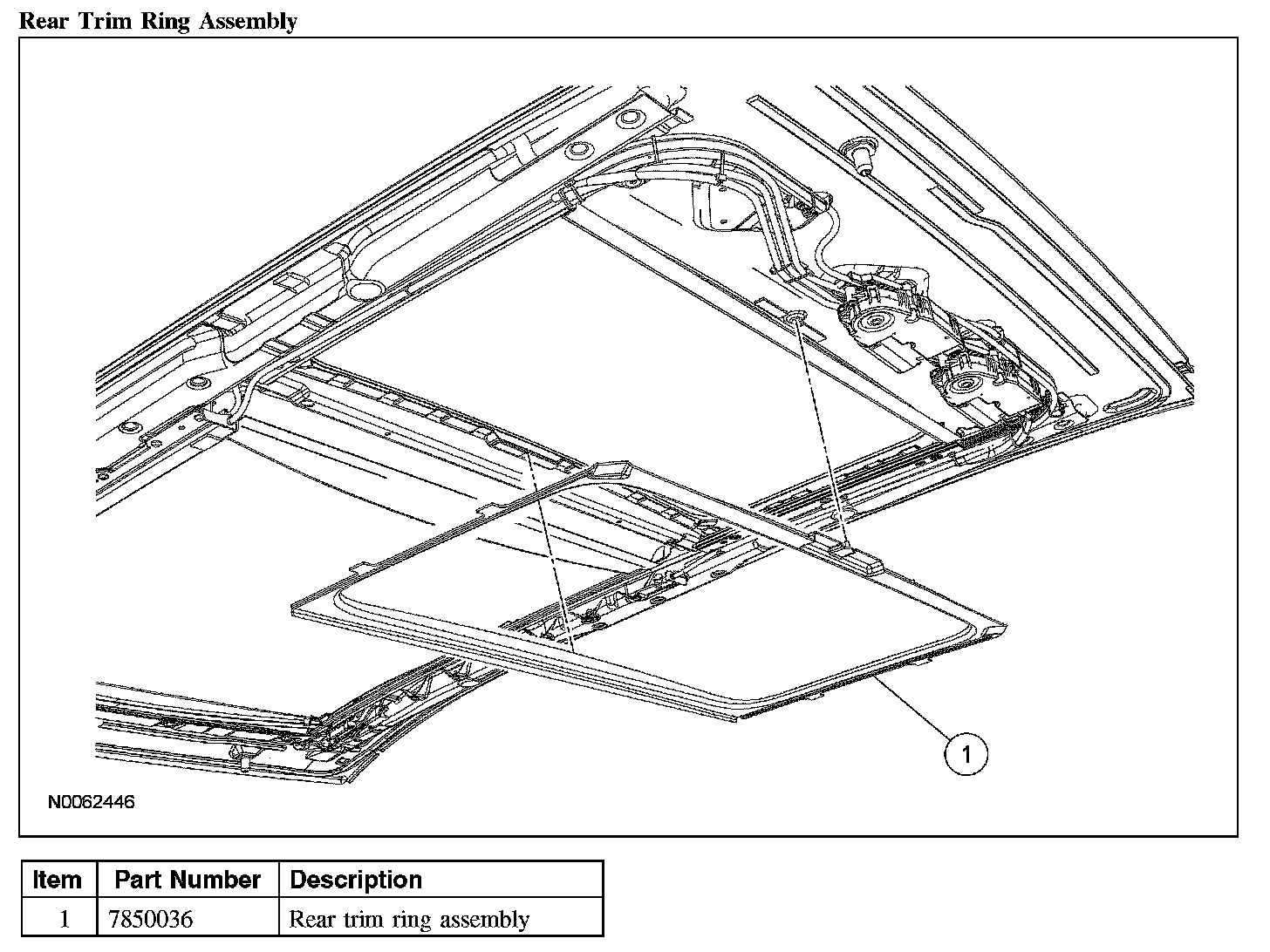

Rear Trim Ring Assembly:

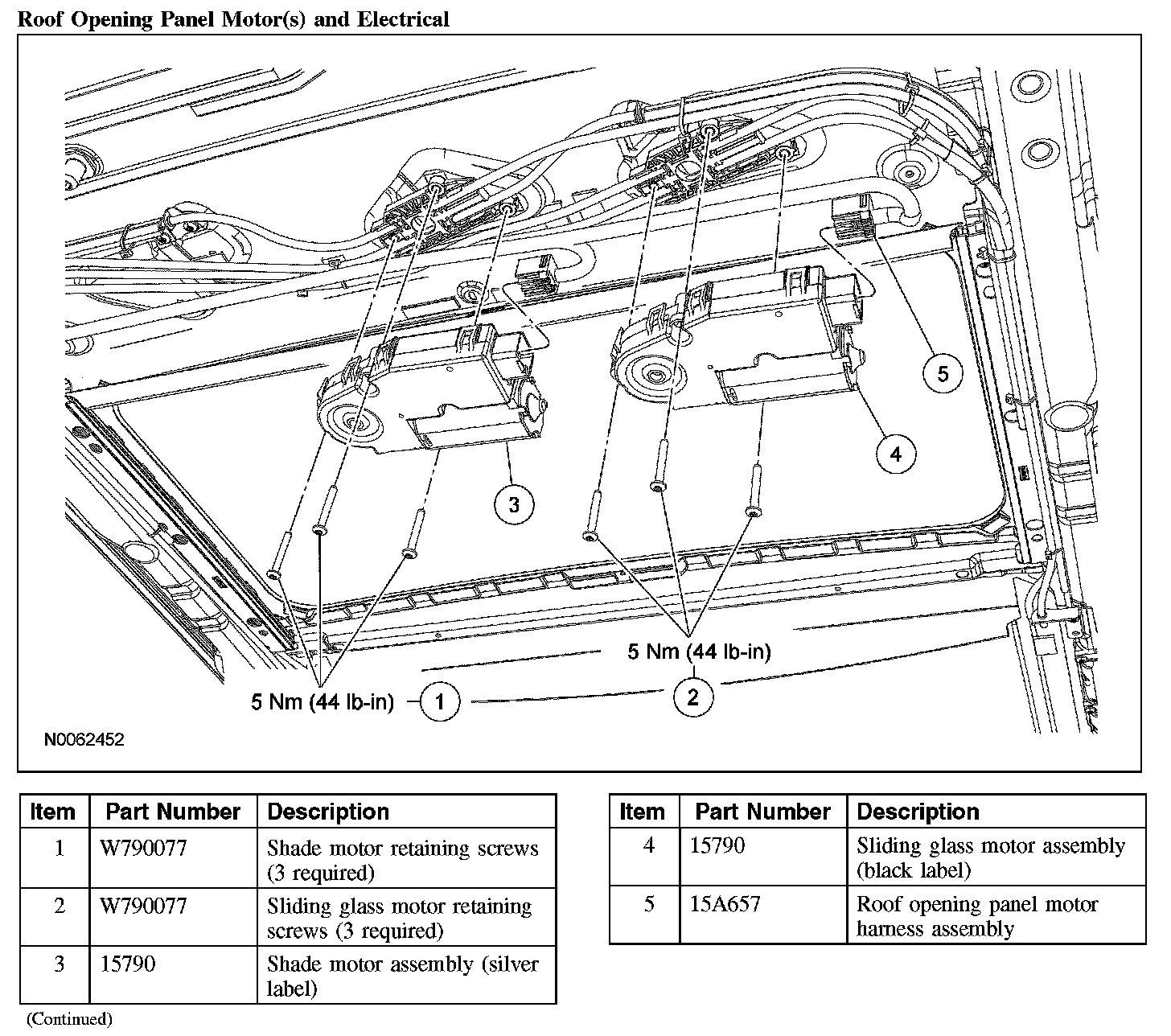

Roof Opening Panel Motor(s) and Electrical:

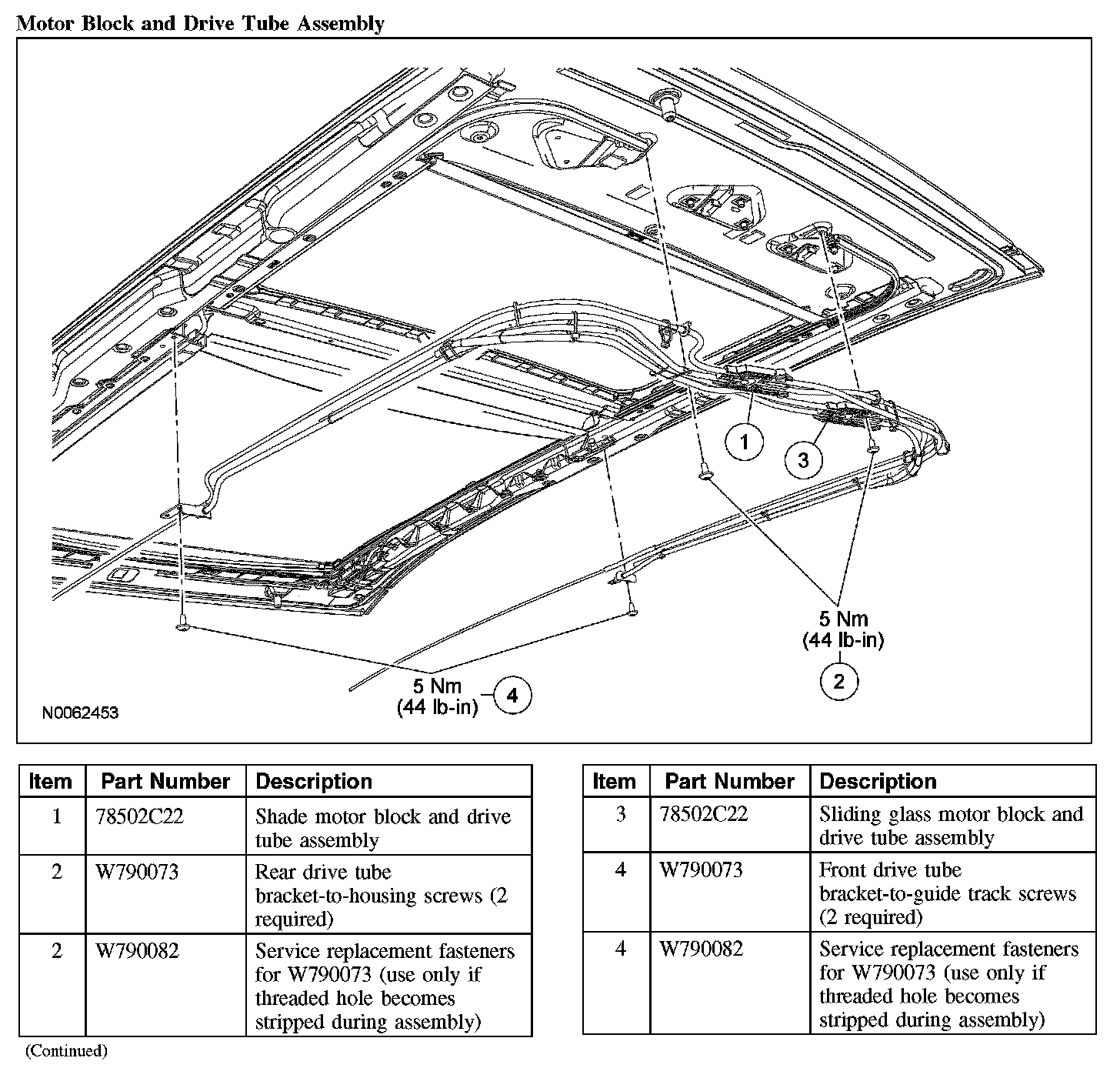

Motor Block and Drive Tube Assembly:

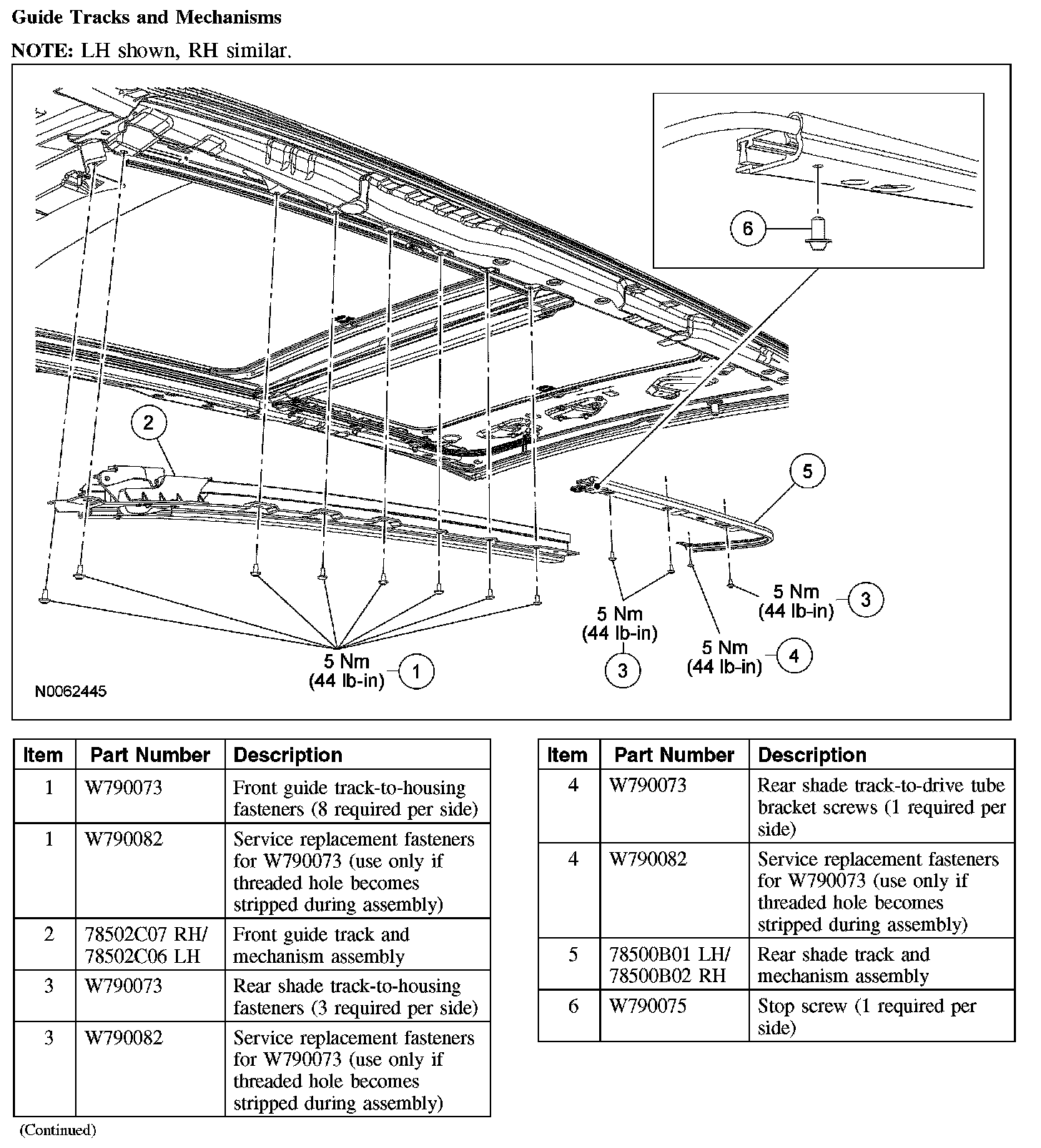

Guide Tracks and Mechanisms:

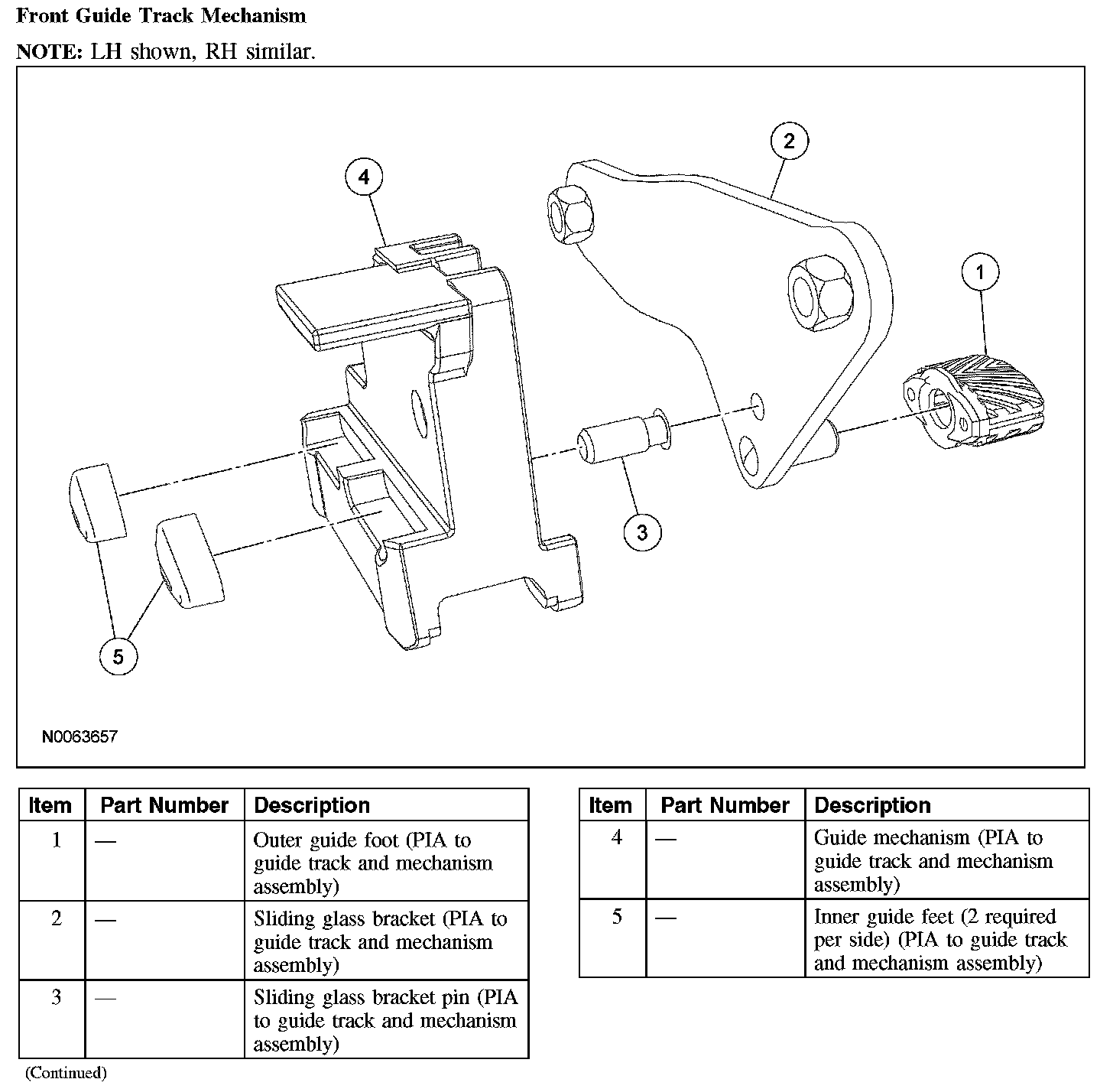

Front Guide Track Mechanism:

Removal and Installation
1. Remove the overhead console.
2. Disengage the clips and remove the switch from the overhead console.
3. To install, reverse the removal procedure.
