Power Seat Switch: Service and Repair

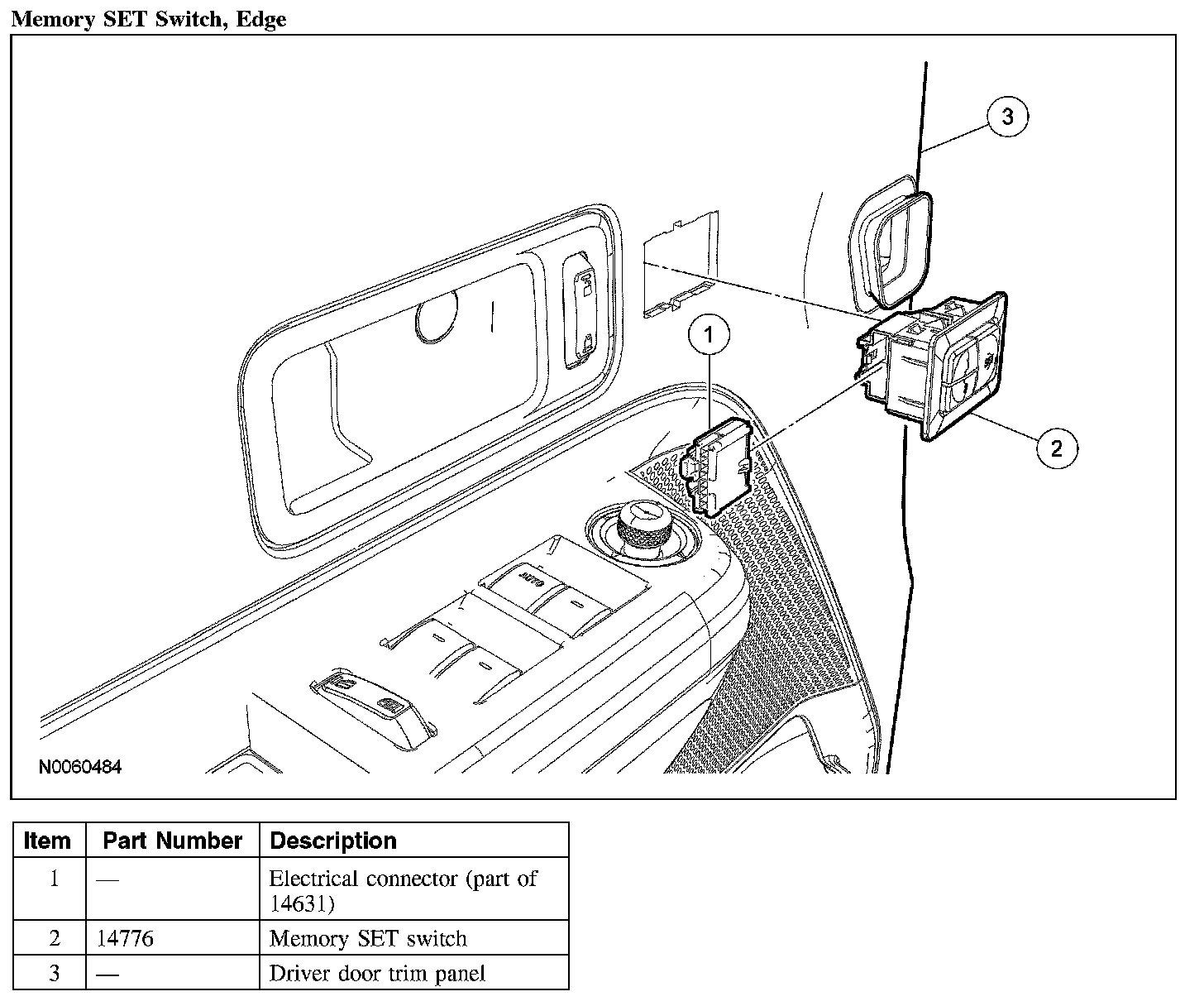

MEMORY SET SWITCHMemory SET Switch, Edge:

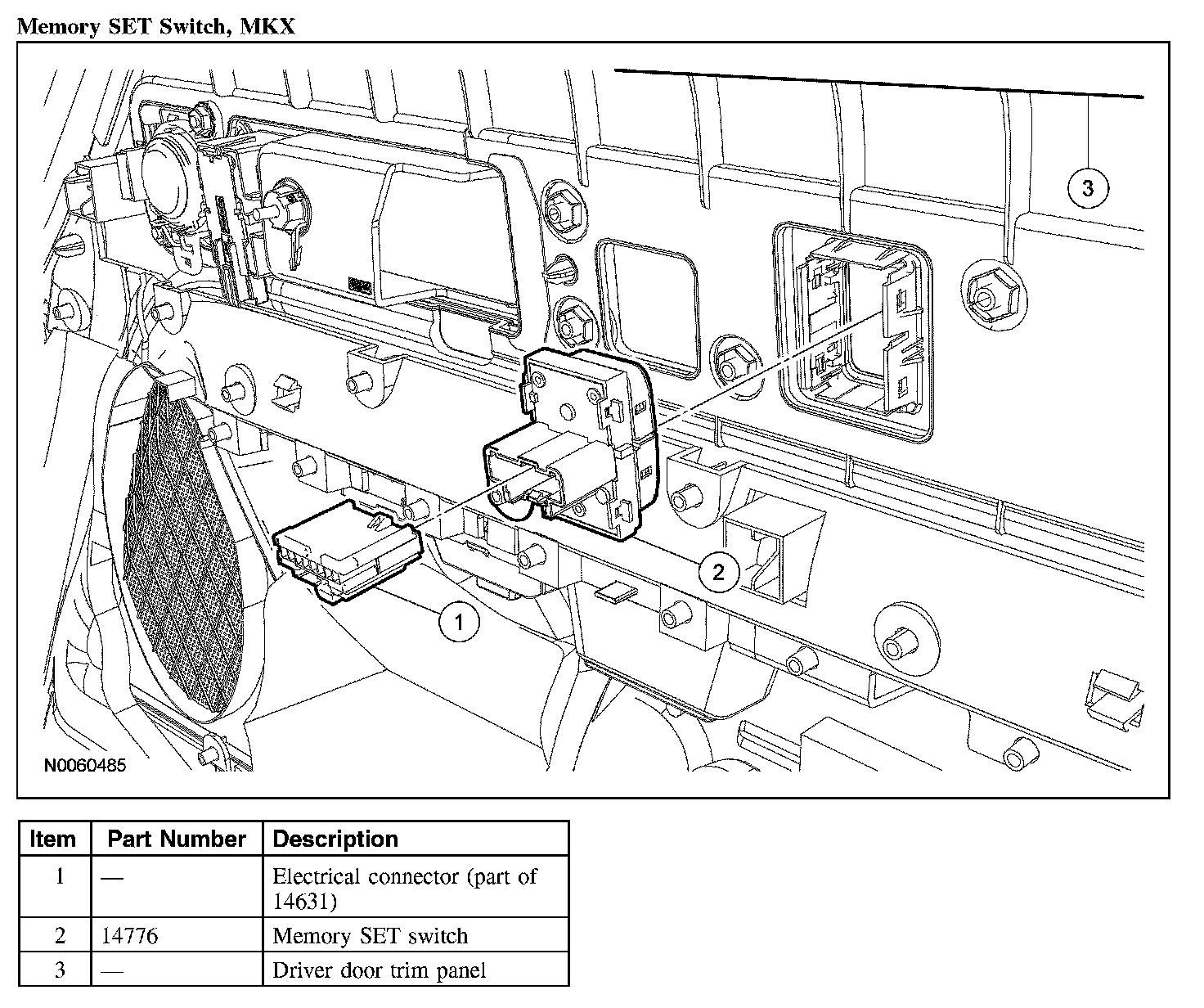

Memory SET Switch, MKX:
Removal and Installation
All vehicles
1. Remove the driver door trim panel.
Edge vehicles
2. Disconnect the electrical connector, release the 4 tabs and remove the memory SET switch through the front of the door trim panel.
MKX vehicles
3. Disconnect the electrical connector, release the 4 tabs and remove the memory SET switch through the back of the door trim panel.
All vehicles
4. To install, reverse the removal procedure.
