Headlamp Switch: Service and Repair

HEADLAMP SWITCH







Removal and Installation

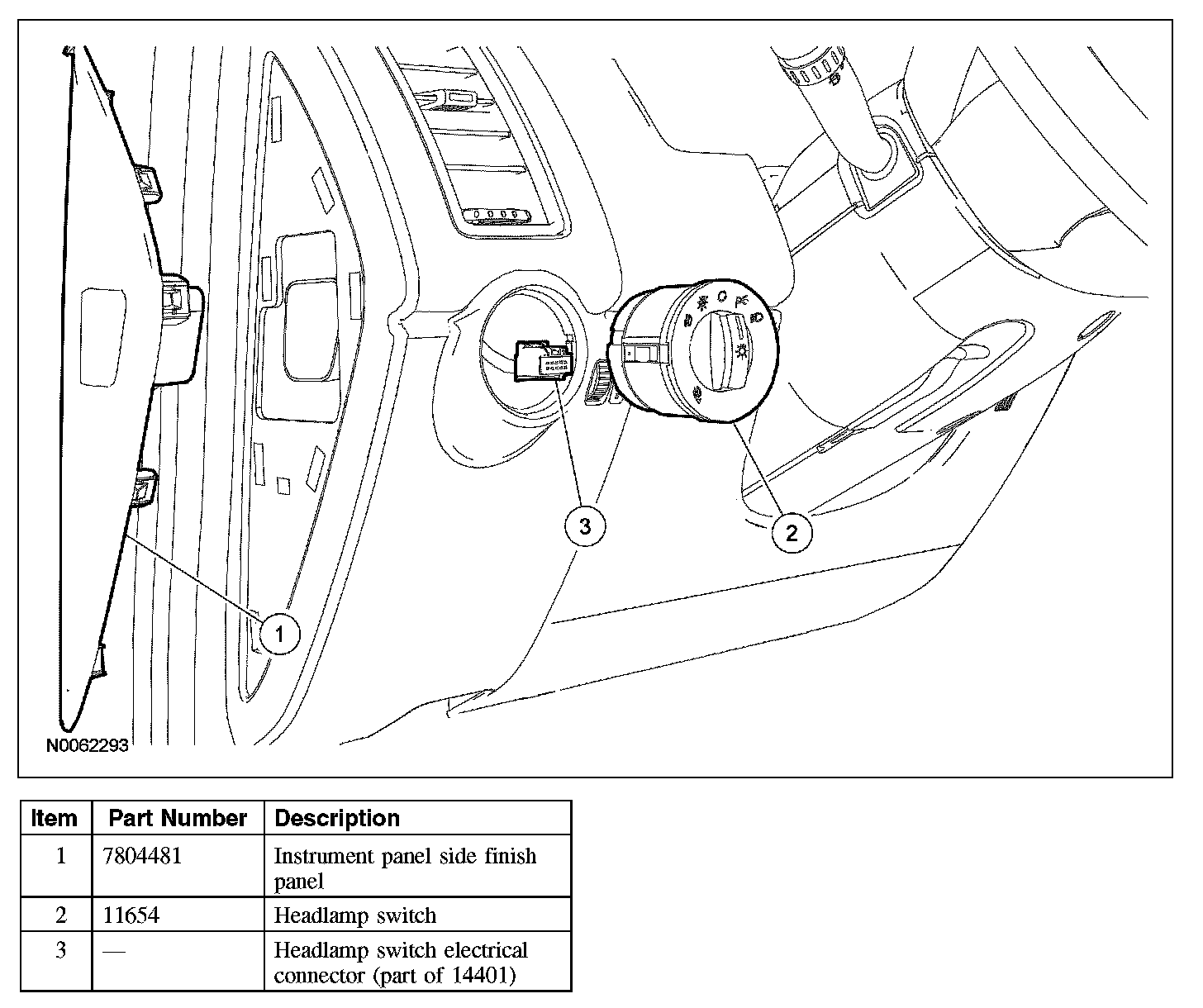

1. Remove the instrument panel side finish panel.

2. NOTE: The headlamp switch is removed by pushing from behind.

Release the tabs and remove the headlamp switch.
- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
